İşlemci Tabanı : AMD
Soket Yapısı : AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
İşlemci Desteği : Supports AM3+ 32 nm CPU Supports CPU up to 8 cores Supports CPU up to 140 W AMD Cool n Quiet™ Technology
Yonga Seti Üreticisi : AMD 970/SB950
Bellek Slotu : 4 x DIMM,
Max. Bellek Kapasitesi : Max. 32GB,
Bellek Frekansları : DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
PCI-E x16 Slot : 1 x PCIe 2.0 x16 (blue)
PCI-E x1 Slot : 2 x PCIe 2.0 x1
PCI Slot : 3 x PCI
Tümleşik Ses : Realtek® ALC887 8-Channel High Definition Audio CODEC
Tümleşik Ağ Kartı : Realtek® 8111F, 1 x Gigabit LAN Controller(s)
SATA 6.0 GB/s Desteği : 6 x SATA 6Gb/s port(s), gray
RAID Desteği : 0, 1, 5, 10
USB 2.0 Desteği : 14 x USB 2.0/1.1 port(s) (8 at back panel, black, 6 at mid-board)
Form Faktörü : ATX Form Factor 12 inch x 8.5 inch ( 30.5 cm x 21.6 cm )

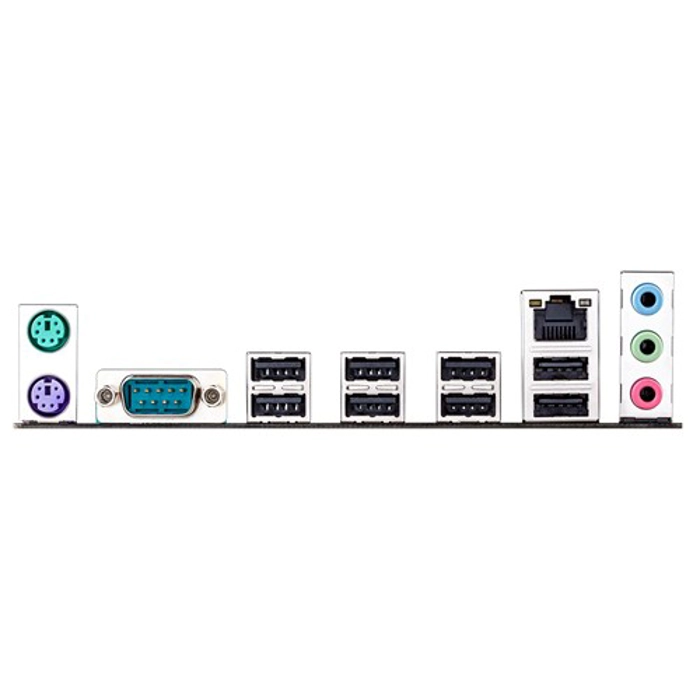

Açıklama / Diğer : 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x LAN (RJ45) port(s) 8 x USB 2.0 1 x COM port(s) 3 x Audio jack(s)
Socket Cinsi : AM3+Chipset : M5A97Form Faktörü : ATXBellek Tipi : DDR3Dahili Grafik : YOK
