| DONANIM ÖZELLİKLERİ |
| Standartlar ve Protokoller |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p |
| Arabirim |

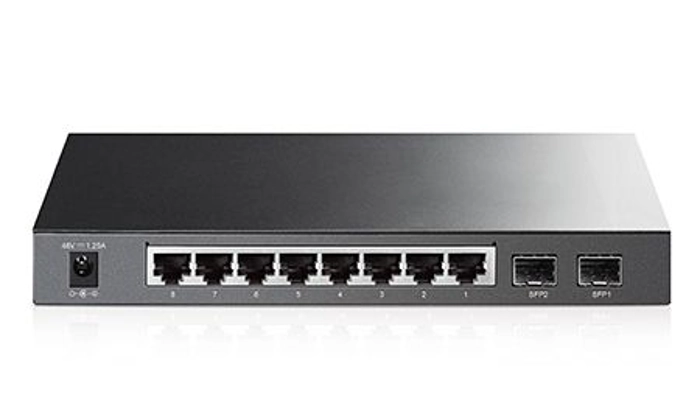

8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX) |
| Ağ Medyası |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF |
| PoE Portları (RJ45) |
Standard: 802.3af compliant
PoE Ports: 8 Ports
Power Supply: 53W |
| Fan Sayısı |
Fanless |
| Boyutlar (W X D X H) |
8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
| Güç Tüketimi |
Maximum (PoE on): 63.4W (220V/50Hz)
Maximum (PoE off): 10.4W (220V/50Hz) |
| Güç Kaynağı |
100~240VAC, 50/60Hz |
| PERFORMANS |
| Bandwidth/Backplane |
20Gbps |
| MAC Adres Tablosu |
8k |
| Paket Ön Bellek Hafızası |
512KB |
| Packet Forwarding Rate |
14.9Mpps |
| Jumbo Frame |
9216 Bytes |
| YAZILIM ÖZELLİKLERİ |
| L2 Switch Özellikleri |
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
LLDP(LLDP-MED) |
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
| VLAN |
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Erişim Kontrol Listesi |
L2~L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based |
| Güvenlik |
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control |
| Yönetim |
Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS |
| DİĞERLERİ |
| Sertifika |
CE, FCC, RoHS |
| Paket İçeriği |

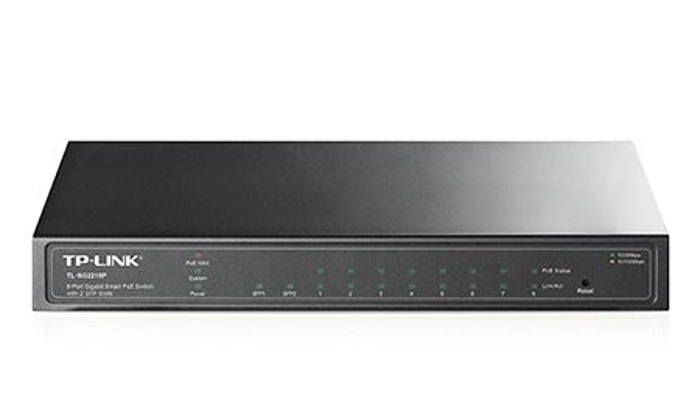

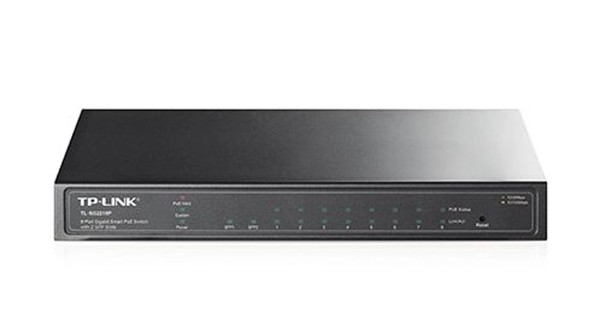

TL-SG2210P
Power Adapter
Quick Installation Guide
Resource CD
Rubber Feet |
| Sistem Gereksinimleri |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Ortam |
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|
