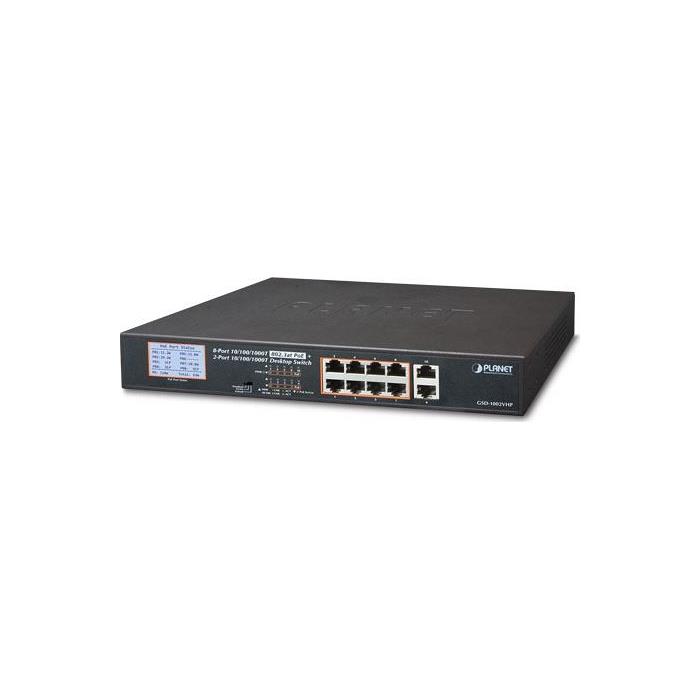

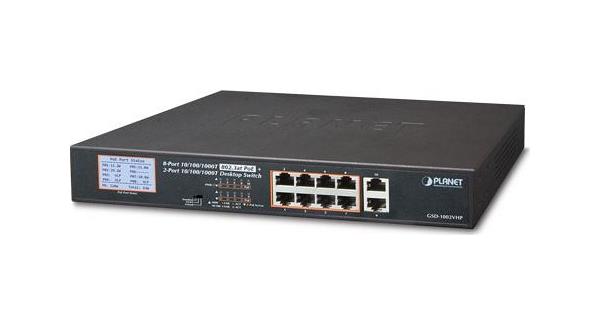

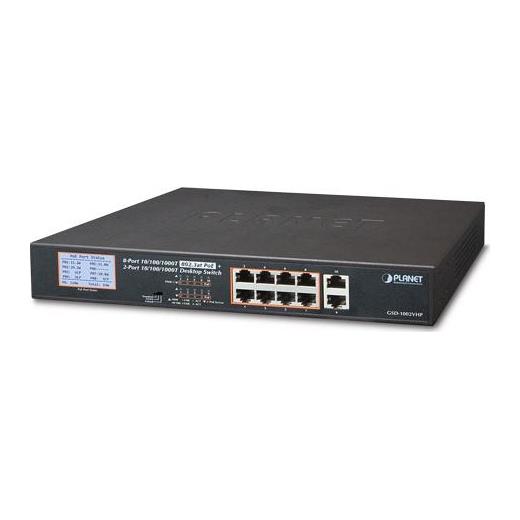

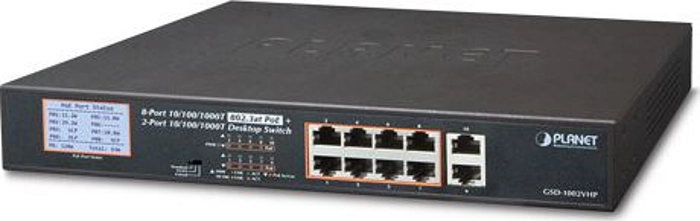

Planet PL-GSD-1002VHP 8-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ Injector

Planet 547-178-94634

Bu ürünü en uygun fiyata satın almak için teklif isteyebilirsiniz !



  • Ürün Açıklaması
  • Teknik Özellikler
  • Yorumlar
  • Ödeme Seçenekleri
  • Geri Bildirim

Yönetilemeyen Masaüstü Tip Switch (Unmanaged Desktop Switch)
8-Port 10/100/1000Base-T IEEE 802.3at/af PoE+ Injector (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 Watt)
2-Port 10/100/1000Base-T
LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için


Physical Port

10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Each port supports 52V DC power to PoE Powered Device
120-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m with standard mode, 250m with extended mode

Switching

Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
IEEE 802.1Q VLAN transparency
Hardware DIP switch for 'Standard', 'VLAN' and 'Extend' mode selection; the 'Extend' mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

12-inch desktop size, 1U height, rack mountable
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
LCD monitor for system status and PoE usage status display
1 silent fan to provide stable and efficient power performance
Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Hardware Specifications
10/100/1000BASE-T MDI/MDIX Ports 10
PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Switch Throughput@64 bytes 14.88Mpps@64Bytes
MAC Address Table 8K entries, automatic source address learning and aging
Maximum Frame Size 9K bytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
LED System:
Power (Green)
10/100/1000BASE-T RJ45 Interfaces:
10/100Mbps LNK/ACT (Orange)
1000Mbps LNK/ACT ((Green)
PoE interfaces:
PoE-in-Use (Orange)
LCD Monitor ¦ PoE loading of each port
¦ Total PoE power usage
¦ Total PoE budget
¦ System status, such as overload, low voltage, over voltage and high
temperature
DIP Switch Selectable operation mode
¦ Standard
¦ VLAN
¦ Extend + VLAN
Dimensions (W x D x H) 180 x 280 x 44 mm (1U height)
Enclosure Metal
Weight 1.8kg
Power Requirements AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/Dissipation Max. 135 watts/463.2 BTU
Thermal Fan 1
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC, 600mA. max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Port Sayısı
8
Veri Transfer Hızı
10/100/1000Mbps
Sfp Port
2 SFP 100/1000 Mbps ports
10/100 Port
-
10/100/1000 Port
-
Garanti Süresi
24 Ay
POE
Var
Durum
Sıfır
Marka
Planet
Ürün Tipi
Switch
Garanti Durumu
Var, Başlamamış
