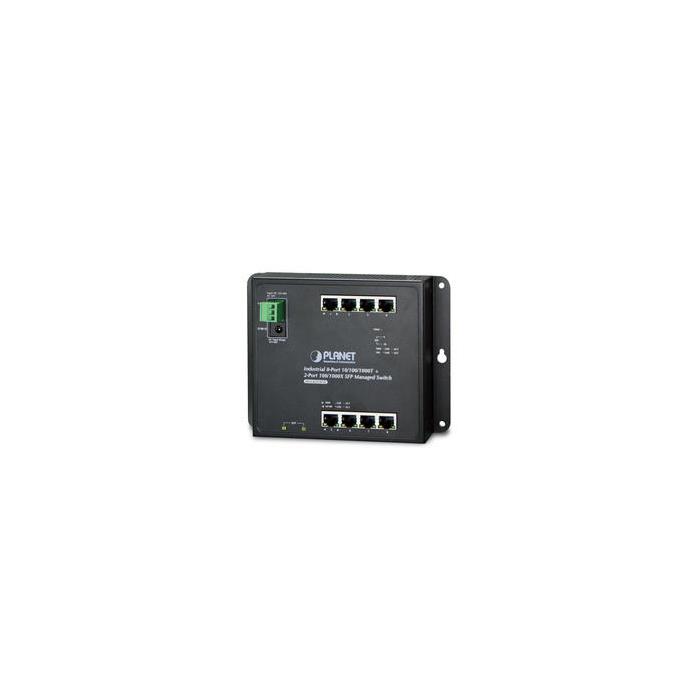

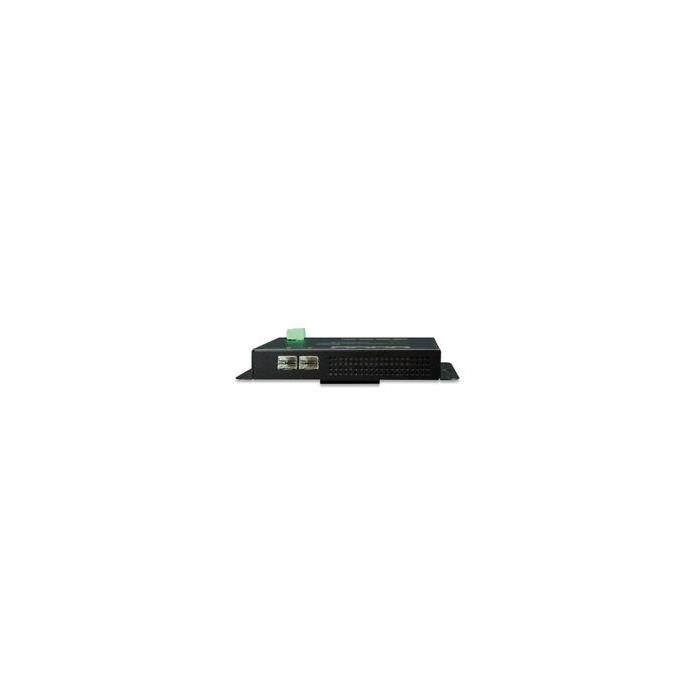

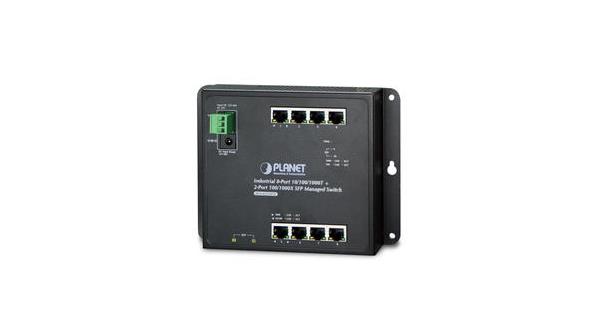

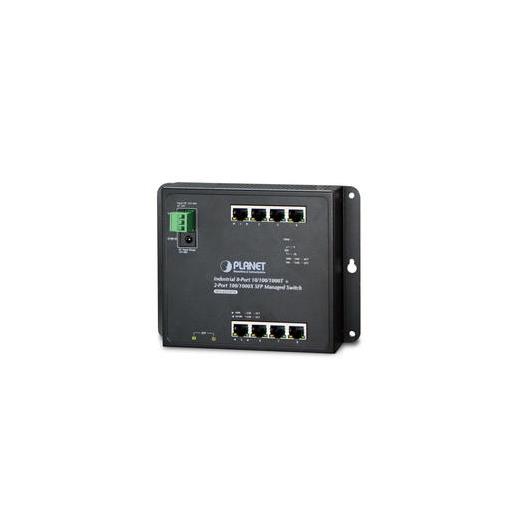

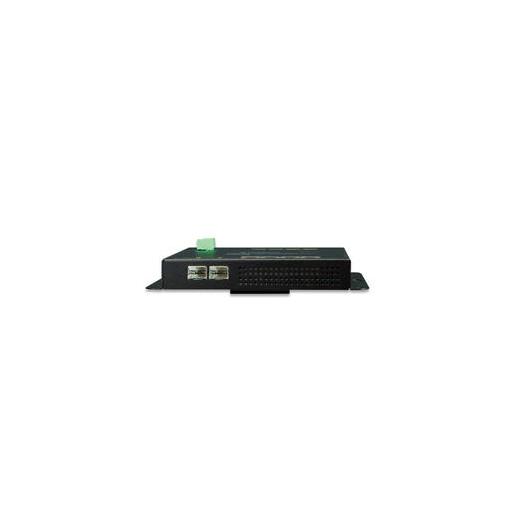

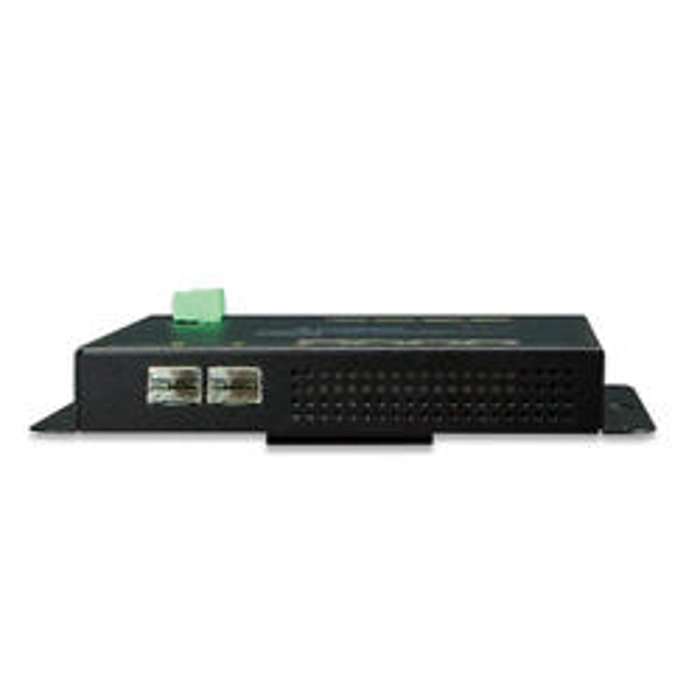

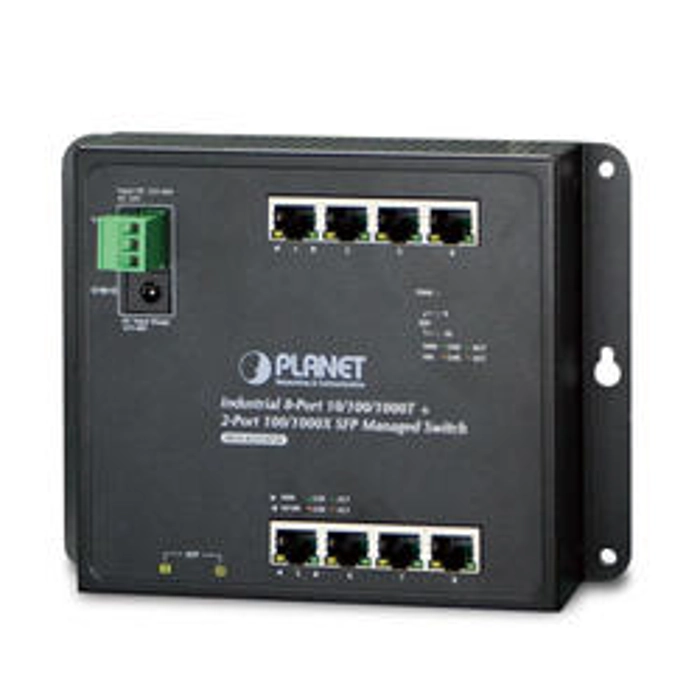

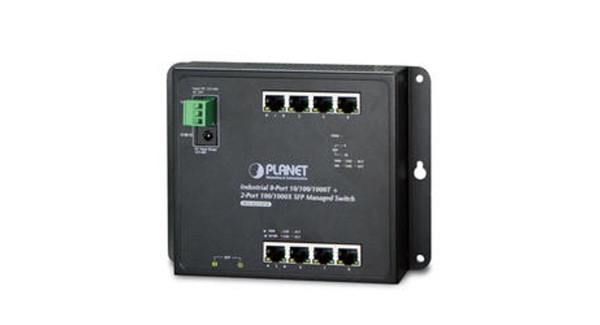

PL-WGS-4215-8T2S Endüstriyel Duvar Tip Yönetilebilir Switch (Industrial Flat-type Managed Switch)<br> 8 x 10/100/1000T<br> 2 x 100/1000X SFP<br> L2/L4<br> IP30, -40~75 derece C

Physical Port

8-port 10/100/1000BASE-T Gigabit RJ45 copper
2 100/1000BASE-X mini-GBIC/SFP slots

Industrial Case / Installation

- 12V~48V DC/24V AC terminal block/12V~48V DC jack power input
- 12V~48V DC input range for booting with polarity reverse protect function
Compact size, wall-mounted, magnetic wall mount and DIN-rail design
IP30 metal case protection
Supports -40 to 75 degrees C operating temperature
Supports EFT protection of 6KV DC for power line
Supports ESD 6KV DC Ethernet protection
Redundant power design

Switching

Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
9K iumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol

Layer 2 Features

- Provides bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN
- Private VLAN (Protected port)
- Management VLAN
- GVRP
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 4 trunk groups, up to 8 ports per trunk group
Supports VLAN
- IEEE 802.1Q tagged VLAN
Supports Spanning Tree Protocol
Supports Link Aggregation
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops

Quality of Service

- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IPv4 IGMP snooping v2 and v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering

Security

- Broadcast/Unknown unicast/Unknown multicast
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- Static MAC
- MAC filtering
Storm Control support
Authentication
Access Control List
MAC Security
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
SSH / SSL

Management

- IPv4 / IPv6 Web switch management
- Telnet Command Line Interface
- SNMP v1, v2c and v3
- SSH and SSL secure access
- Firmware upload/download via HTTP / TFTP
- Configuration upload/download through HTTP / TFTP
- Hardware reset button for system reboot or reset to factory default
IPv4 and IPv6 dual stack management
Switch Management Interface
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
Static and DHCP for IP address assignment
System Maintenance
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
SNMP trap for interface Link Up and Link Down notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery Utility
