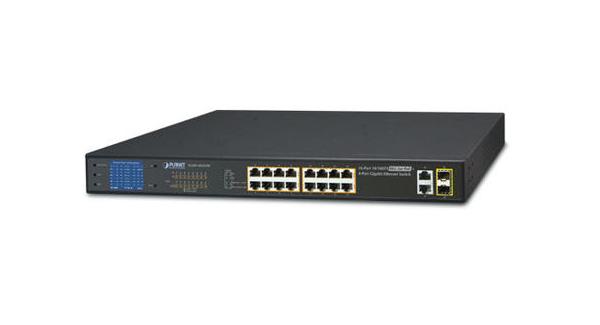

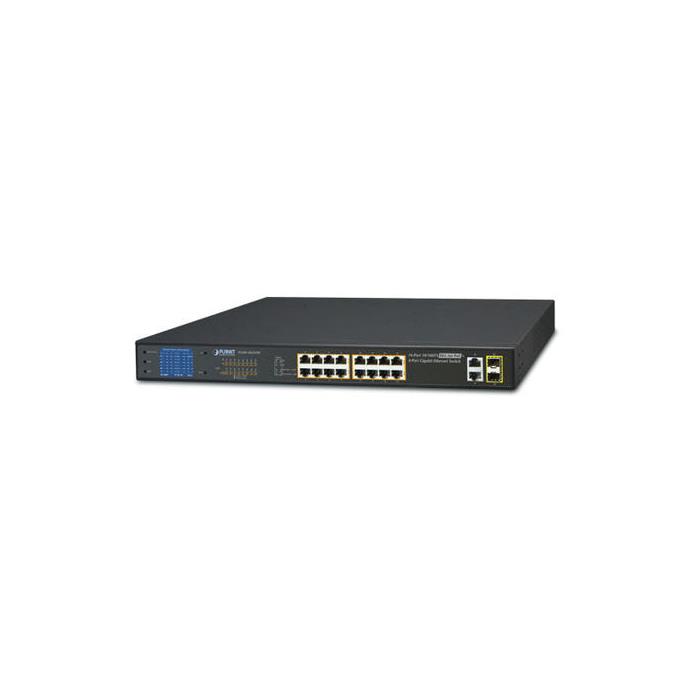

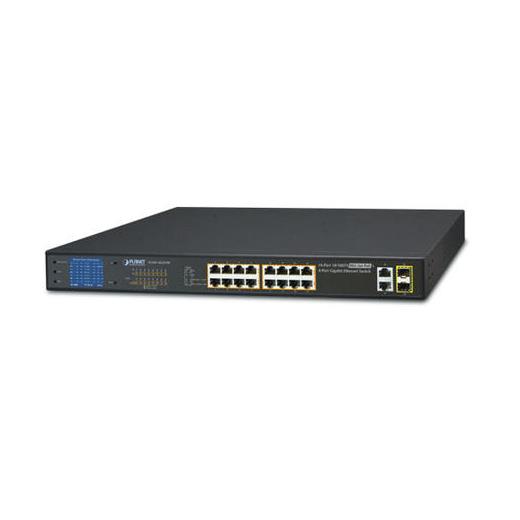

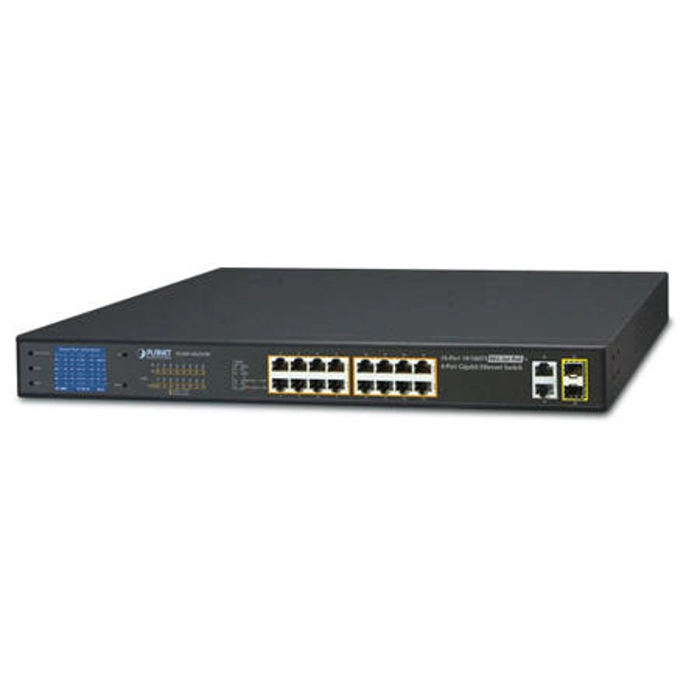

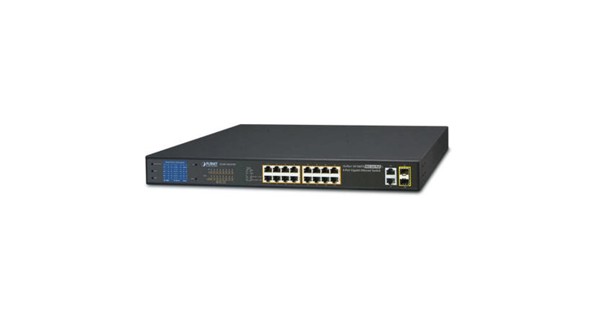

PL-FGSW-1822VHP Yönetilemeyen Switch

Physical Port

16-port 10/100BASE-TX Fast Ethernet RJ45 copper
2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP interfaces


Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span PSE

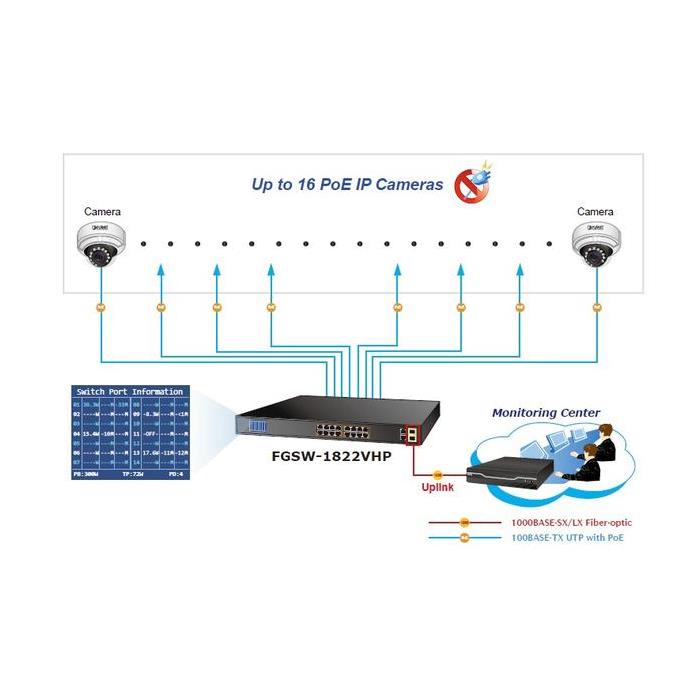

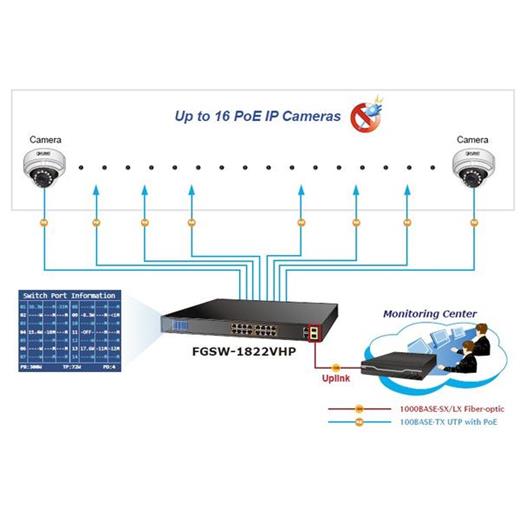

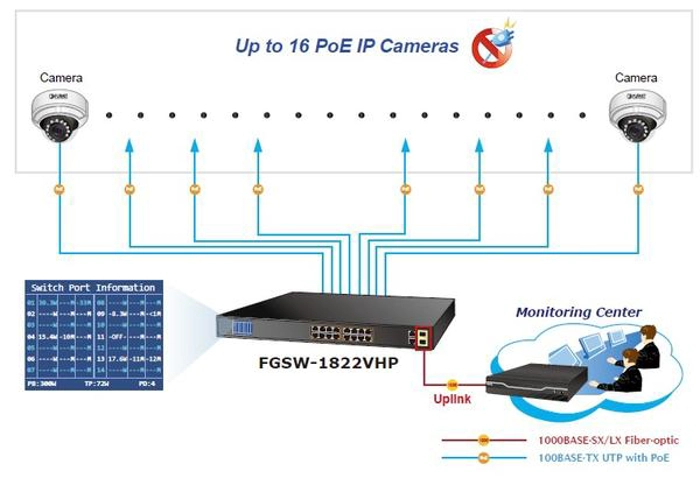

Up to 16 ports of IEEE 802.3af/at devices powered
Supports PoE Power up to 32 watts for each PoE port
Each port supports 54V DC power to PoE powered device
300-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m with standard mode


Smart LCD

LCD switch mode for “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
Solid LCD switch mode to isolate ports to prevent broadcast storm and defend DHCP spoofing
Power low-voltage, power over-voltage and PSE over-temperature protection
Screen saver, fan control, factory default and save configuration
PoE management
- Total PoE power budget control

- Per port PoE function enable/disable

- PoE port power feeding priority

- Per PoE port power limitation

- PD alive check


Switching

Hardware-based 10/100Mbps or 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
9216bytes packet size
Integrates address look-up engine, supporting 8K absolute MAC addresses
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging


Hardware

19-inch desktop size, 1U height, rack mountable
2-inch color LCD with smart management functions
LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
3 silent fans to provide stable and efficient power performance
Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection
Supports ±6KV surge immunity
