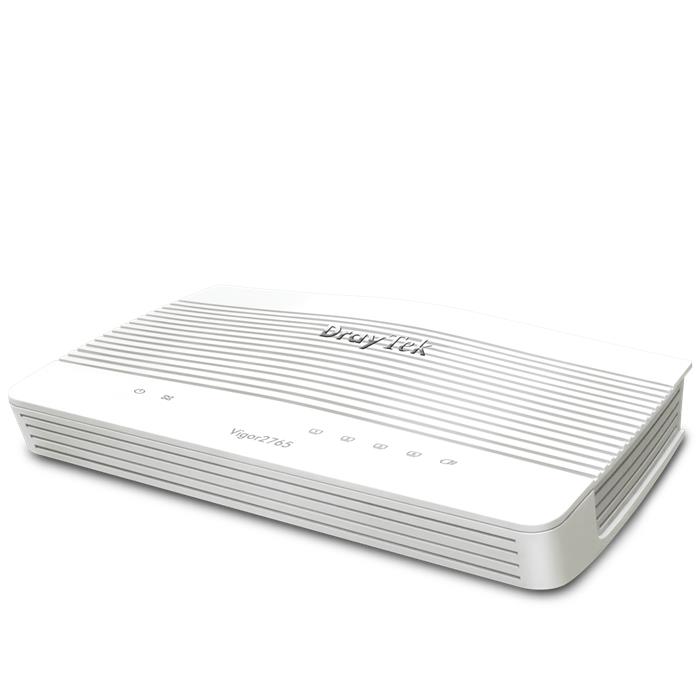

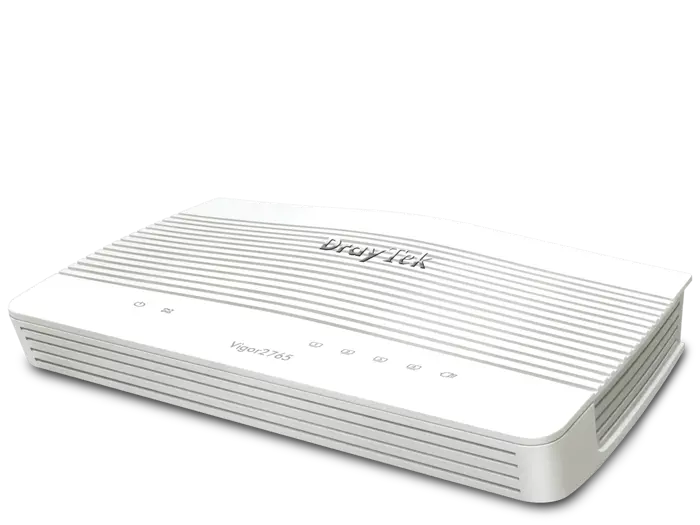

Draytek Vıgor 2765 Vdsl/Adsl Router Modem

Arayüz

Fixed WAN Port

1x RJ-11 for VDSL2 or ADSL2/2+

LAN/WAN Switchable Port

1x 10/100/1000Base-T, RJ-45 (P4)

Fixed LAN Port

3x 10/100/1000Base-T, RJ-45

USB Port

2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer

2.4G WLAN

802.11n 2x2 MIMO 400Mbps (ac/Vac model)

5G WLAN

802.11ac Wave 2 2x2 MU-MIMO 867Mbps (ac/Vac model)

FXS RJ-11

2 (Vac model)

Performans

Max. Throughput on VDSL

300 Mbps

NAT Throughput

600 Mbps

IPsec VPN Performance

200 Mbps (AES 256 bits)

SSL VPN Performance

80 Mbps

Max. Number of NAT Sessions

50,000

Max. Concurrent VPN Tunnels

2

VDSL/ADSL

VDSL Standards

ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)

VDSL2 Profile

8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (not G.Fast)

VDSL Band Plan

997, 998

ADSL Standards

ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)

ADSL2 Standards

ITU-T G.992.3, G.992.3 Annex M/J

ADSL2+ Standards

ITU-T G.992.5, G.992.5 Annex M/J

Internet Bağlantısı

IPv4

PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP

IPv6

PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel

Multi-VLAN/PVC

√

WAN Failover

√

Connection Detection

ARP, Ping

WAN Data Budget

√

Dynamic DNS

√

DrayDDNS

√

LAN Yönetimi

VLAN

802.1q Tag-based, Port-based

Max. Number of VLAN

8

Number of LAN Subnet

2

DHCP Server

Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC

Wired 802.1x Authentication

√

Port Mirroring

√

Local DNS Server

√

Conditional DNS Forwarding

√

Hotspot Web Portal

√

Hotspot Authentication

Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server

Ağ

Routing

IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP

Policy-based Routing

Protocol, IP Address, Port, Domain, Country

DNS Security (DNSSEC)

√

Multicast

IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour

SMB File Sharing

 √ (Requires external storage)

VPN

LAN-to-LAN

√

Teleworker-to-LAN

√

Protocols

PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)

User Authentication

Local, RADIUS, mOTP

IKE Authentication

Pre-Shared Key, X.509

IPsec Authentication

SHA-1, SHA-256, MD5

Encryption

MPPE, DES, 3DES, AES128, AESMAYIS2, AES256

Single-Armed VPN

√

NAT-Traversal (NAT-T)

√

Güvenlik Duvarı ve İçerik Filtrelemesi

NAT

Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP

ALG (Application Layer Gateway)

SIP, RTSP, FTP, H.323

VPN Pass-Through

PPTP, L2TP, IPsec

IP-based Firewall Policy

√

Content Filtering

Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)

DoS Attack Defense

√

Spoofing Defense

√

Bantgenişliği Yönetimi

IP-based Bandwidth Limit

√

IP-based Session Limit

√

QoS (Quality of Service)

TOS, DSCP, 802.1p, IP Address, Port, Application

VoIP Prioritization

√

Kablosuz LAN (wireless modeller)

Number of SSID

4 per radio

Security Mode

WEP, WPA, WPA2, Mixed(WPA+WPA2)

Authentication

Pre-Shared Key, 802.1X

WPS

PIN, PBC

WDS Repeater

 √ (5GHz only)

Access Control

Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling

AirTime Fairness

√

Band Steering

√

MU-MIMO

√ (5G Only) (dual-band model)

TxBF

 √ (5G Only) (dual-band model)

WMM

√

VoIP Ağ Geçidi (V model)

Protocol

SIP, RTP/RTCP, ZRTP

SIP Registrars

6

Dial Plan

Phone Book, Digit Map, Call Barring, Regional

Call Features

Call Waiting, Call Transfer, Scheduled DND, Hotline

Voice Codec

G.711 A/u law, G.726, G.729 A/B

Caller ID

FSK_ETSI, FSK_BELLCORE, DTMF

Yönetim

Local Service

HTTP, HTTPS, Telnet, SSH, FTP, TR-069

Config File Export & Import

√

Firmware Upgrade

TFTP, HTTP, TR-069

2-Level Administration Privilege

√

Access Control

Access List, Brute Force Protection

Notification Alert

SMS, E-mail

SNMP

v1, v2c, v3

Syslog

√

Managed by VigorACS

√

Central AP Management

2 VigorAP

Fiziksel

Power Supply

DC 12V @ 2A

Max. Power Consumption

MAYIS watts (ac model)

Dimension

207mm x 131mm x 42mm

Weight

500g (ac model)

Operating Temperature

0 to 45°C

Storage Temperature

-25 to 70°C

Operating Humidity (non-condensing)

10 to 90%

Certificate

CE, FCC
