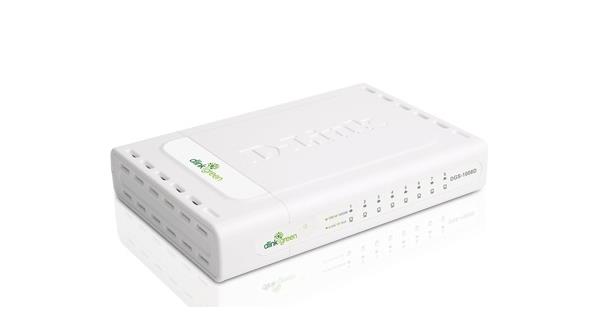

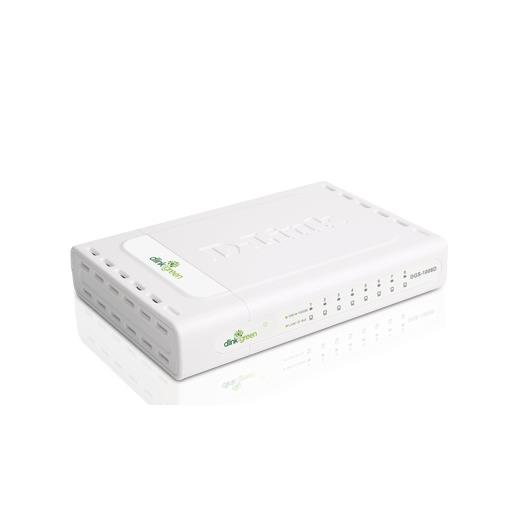

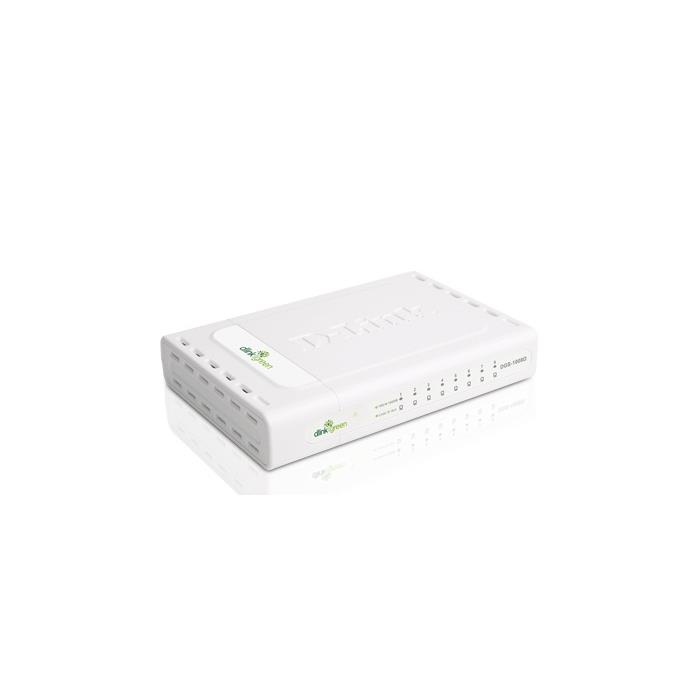

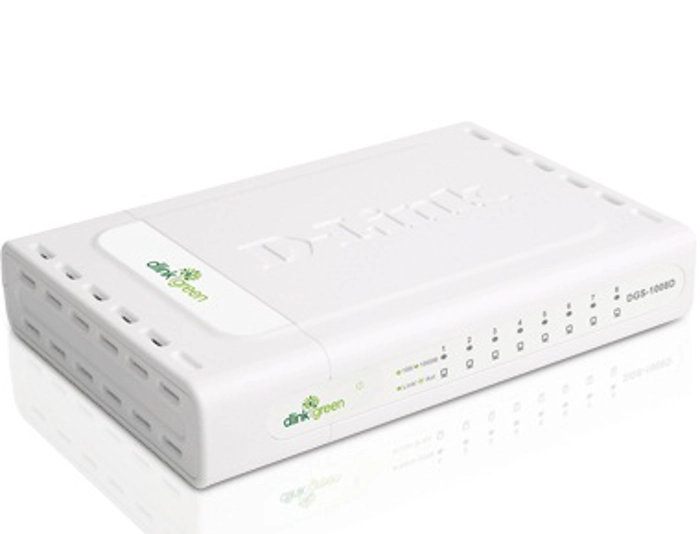

D-Link Dgs-1008D 8 Port 10/100/1000 Yönetilemez Switch (Metal)

General
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control

Protocol
CSMA/CD

Data Transfer Rates
- Ethernet:
  10Mbps (half-duplex)
  20Mbps (full-duplex)
- Fast Ethernet:
  100Mbps (half-duplex)
  200Mbps (full-duplex)

Topology
Star

Network Cables
- 10BASE-T:
  UTP Cat. 3, 4, 5 (100 m)
  EIA/TIA-568 STP (100 m)
- 100BASE-TX:
  UTP Cat. 5 (100 m)
  EIA/TIA-5681 STP (100 m)

Number of Ports
10/100Mbps port x 8

Twisted-pair Rx Reverse Polarity
Auto-correction

LED Report
Per device:
- Power
Per port:
- 10Mbps, 100Mbps
- Full-duplex, Collision

Performance
Transmission Method
Store-and-forward

MAC Address Table
8K entries per device

MAC Address Learning
Automatic update

Buffer Memory
256Kbytes per device

Packet Filtering Rates
- 10BASE-T: 14,880 pps per port (half-duplex)
- 100BASE-TX: 148,800 pps per port (half-duplex)

Packet Forwarding Rates
- 10BASE-T: 14,880 pps per port (half-duplex)
- 100BASE-TX: 148,800 pps per port (half-duplex)

Fiziksel Özellikler

Power Input
DC 7.5V/1A
Through external AC power adapter

Power Consumption
2 watts (max.)

Operating Temperature
0   -  50  C

Storage Temperature
-10   -  70  C

Operating Humidity
10%  -  90%

Storage Humidity
5%  -  90%

Dimensions
192 (W) x 118 (D) x 32 (H) mm

Weight
301 grams

Emission (EMI)
- FCC Class B
- CE Class A
- VCCI Class A
