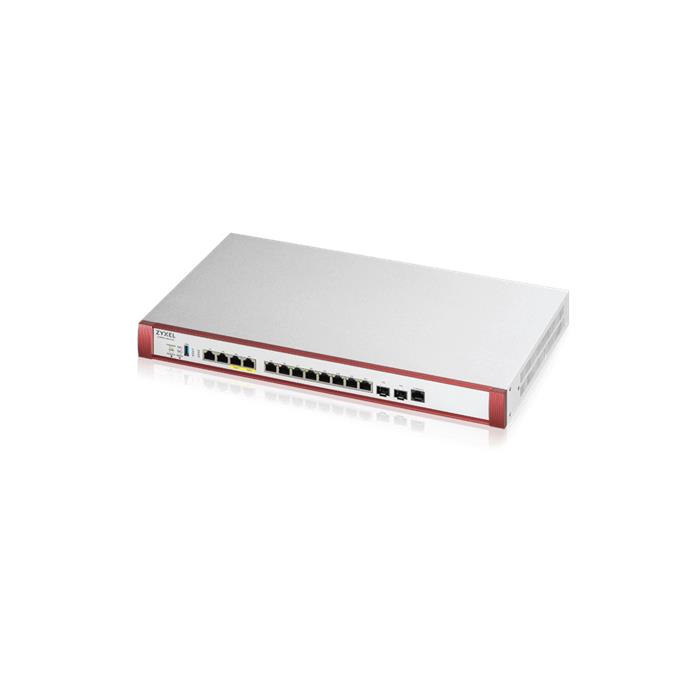

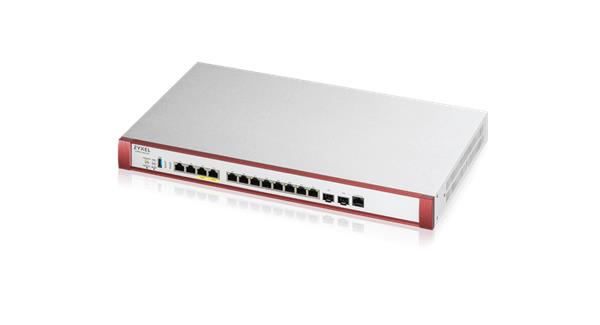

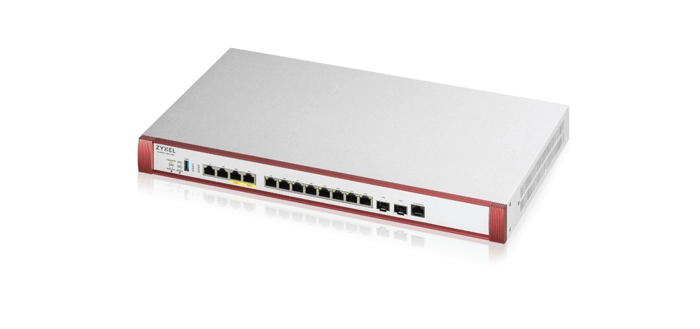

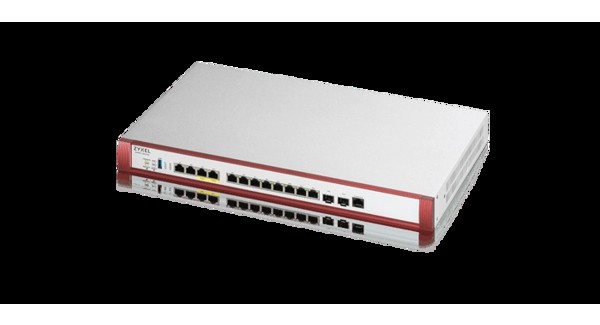

ZYXEL ZYWALL USG FLEX 700H FIREWALL

100M/1G Ethernet (RJ-45)

8

100M/1G/2.5G Ethernet (RJ-45)

2

1G/2.5G/5G/10G Ethernet (RJ-45)

2

1G SFP/10G SFP+

2

IEEE 802.3at (PoE+) Port

Port 3, 4 (10G)

Total PoE budget (watts)

30

USB 3.0 Type-A

1

Console port

Yes (RJ-45)

Rack-mountable

Yes

Fanless

-

SPI firewall throughput (Mbps) ^*2

15,000

VPN throughput (Mbps) ^*3

3,000

IPS throughput (Mbps) ^*4

7,000

Anti-Malware throughput (Mbps) ^*4

4,000

UTM throughput (Anti-Malware and IPS) ^*4

4,000

Max. TCP concurrent sessions ^*5

2,000,000

Max. concurrent IPsec VPN tunnels ^*6

1,000

Recommended gateway-to-gateway IPsec VPN tunnels

300

Concurrent SSL VPN users

500

VLAN interface

128

Anti-Malware

Yes

IPS

Yes

Application Patrol

Yes

Web filtering

Yes

Reputation Filter

Yes

SecuReporter

Yes

Sandboxing

Yes

Security Profile Sync

Yes

Device Insight

Yes

SSL (HTTPS) inspection

Yes

Two-Factor Authentication

Yes

WAN load balancing

Yes

Prioritize critical applications

Yes

VPN Protocol

IKEv2/IPSec, SSL, Tailscale ^*8

Nebula SD-VPN

Yes

Auto-link VPN

Yes

Manual-link VPN

Yes

VPN Topology

Yes

Default Number of Managed AP

8

Secure WiFi ^*7

Yes

Maximum Number of Tunnel-Mode AP ^*9

130

Maximum Number of Managed AP

520

Recommend max. AP in 1 AP Group

200

Nebula Centralized Management

Yes

Device HA

Yes

Link Aggregation (LAG)

Yes

Concurrent devices logins (max.) ^*10

2,000

Burst login rate (users/30sec)

220

Power input

100-240V AC, 50/60Hz, 2A

Max. power consumption (Watt Max.)

86.7

Heat dissipation (BTU/hr)

235

Item

Dimensions (WxDxH)(mm/in.): 430 x 250 x 43.5/16.93 x 9.84 x 1.71

Weight (kg/lb.): 3.14/6.93

Packing

Dimensions (WxDxH)(mm/in.): 512 x 395 x 162/20.16 x 15.55 x 6.38

Weight (kg/lb.): 4.90/10.81

Included accessories

Power cord

RJ-45 to RS-232 cable for console connection

Rack mounting kit

Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -30°C to 70°C / -22°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

40°C/ 431877.9743 hr

25°C/ 669031.2966 hr

Acoustic noise

16.85dBA on < 25degC Operating Temperature, 47.84dBA on full FAN speed

EMC

FCC Part 15 (Class A)

CE EMC (Class A)

RCM (Class A)

BSMI

Safety

LVD (EN62368-1)

BSMI
