High efficient Octa cooling path
|
|
Eight times more powerful cooling efficiency with two copper pipes- Octa cooling path system. |
|
nbsp; |
|
|
|
nbsp; |
|
Optimized quad radial radiator design
|
|
Slim fin pure copper quad radial radiator designed for optimized air flow. |
|
nbsp; |
|
|
|
nbsp; |
|
The world#39;s first nanofluids applied cooler
|
FZalman with its unique technology came up withnbsp;
the world first nanofluids refrigerant applied cooler to maximize the cooling performance.
middot; Using nanofluids coolant improves thermal conductivity by mixing nanoparticles with fluids.
middot; Nm (nanometer): an SI unit of length, equal to 10-9m (a billionth of a meter).
|
|
nbsp; |
|
|
|
nbsp; |
|
Micro fin copper base appliednbsp;
for quick heat transfer
|
|
Pure copper water block and inner micro-fin applied for quick heat transfer. |
|
nbsp; |
|
|
|
nbsp; |
|
Low noise / high performance built-in water pump
|
Built-in low noise/ high performance pump inside the water block, minimized the tube connection andnbsp;
helps to speed up the circulation of the coolant for optimized cooling performance. |
|
nbsp; |
|
|
|
nbsp; |
|
Efficient VRM (Voltage regulator module)cooling
|
|
Induction of the airflow inside the case increases cooling efficiency of the motherboard and VRM. |
|
nbsp; |
|
|
|
nbsp; |
|
Blue LED applied fan and water block
|
|
Blue LED on the water block and the radiator fan is applied to create the luxurious and powerful image. |
|
nbsp; |
|
|
|
nbsp; |
|
Black-pearl nickel plated heatsink
|
|
Anti-corrosion , elegant black pearl nickel plated heatsink. |
|
nbsp; |
|
|
|
nbsp; |
|
Excellent hermeticity
|
Coolant is already placed inside the confined product,
it can be used semi-permanently without replacement or separate maintenance. |
|
nbsp; |
|
|
|
nbsp; |
|
Exclusive bracket for easier installation
|
|
Bracket provided to minimize the interference with the case and the components inside. |
|
nbsp; |
|
|
|
nbsp; |
|
Contents
|
|
|
|
nbsp; |
|
International Safety Certifications |
|
|
|
nbsp; |
|
|
|
nbsp; |
|
Socket |
|
CPU |
|
CPU Compatibility |
|
|
Intel |
2011 |
Core i7 Extreme |
Supports all speeds |
|
Core i7 |
|
1366 |
Core i7 Extreme |
Supports all speeds |
|
Core i7 |
|
1155/1156 |
Core i7 Extreme |
Supports all speeds |
|
Core i7 |
|
Core i5 |
|
Core i3 |
|
Pentium |
|
Celeron |
|
1150/1151 |
Core i7 |
Supports all speeds |
|
Core i5 |
|
775 |
Core 2 Quad |
Supports all speeds |
|
Core 2 Duo |
|
Core 2 Extreme |
|
Pentium Dual Core |
|
Pentium D |
|
Pentium 4 |
|
Celeron D |
|
AMD |
FM2 |
Trinity |
Supports all speeds |
|
FM1 |
LIano |
Supports all speeds |
|
AM3+ |
Vishera |
Supports all speeds |
|
Zambezi |
|
AM3 |
Phenom II |
Supports all speeds |
|
Athlon II |
|
Opteron |
|
AM2+ |
Phenom II |
Supports all speeds |
|
Phenom |
|
Athlon FX |
|
Athlon X2 |
|
Athlon |
|
Sempron |
|
Opteron |
|
AM2 |
Athlon FX |
Supports all speeds |
|
Athlon X2 |
|
Athlon |
|
Sempron |
|
Opteron |
|
|
nbsp; |
|
|
|
nbsp; |
|

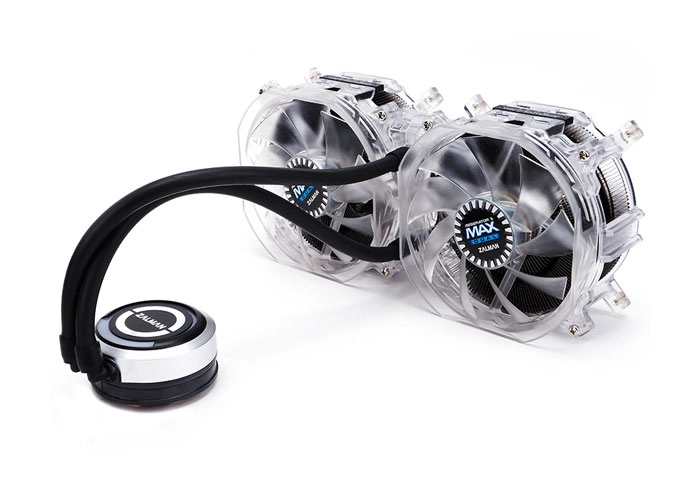

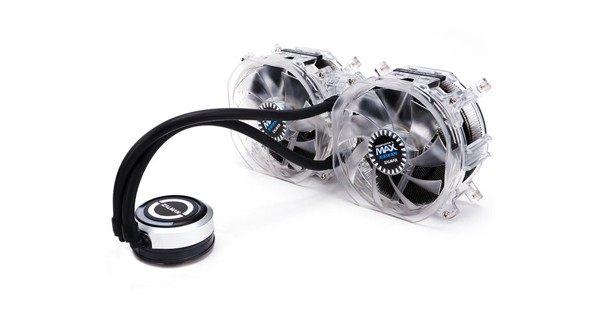

Reserator 3 MAX DAUL
|
Radiator
|
Water Block
|
|
Material
|
Pure Copper amp; Black-Nickel Plated
|
Base : Pure Copper
|
|
Weight
|
1,426g
|
|
Dimensions (LxWxH)
|
276x122x73mm
|
70x85x37mm
|
|
Pump
|
Embedded Pump
|
|
Fan
|
Dimensions
|
Oslash;120 x 25(H)mm, Blue LED
|
|
Speed
|
1,000~2,300rpm plusmn;10%
|
|
Noise Level
|
23.2~46.6dBA plusmn;10%
|
|
Bearing
|
Long Life Bearing
|
|
Speed Control
|
PWM (Pulse Width Modulation)
|
|
Connector
|
4Pin(Radiator) x 2EA, 3Pin(Pump)
|
|
Input Voltage
|
12V
|
|
Thermal Grease
(ZM-STG2M)
|
Contents
|
1g
|
|
Temperature Range
|
-40deg;C ~ +150deg;C (-40? ~ +302?)
|
|
|
nbsp;
nbsp;
nbsp;
|
|
|
|
|
Avoid inserting objects or hands into the fan while it is in operation to prevent product damage and injuries. |
|
nbsp; |
|
|
Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention. |
|
nbsp; |
|
|
To prevent possible injuries, gloves must be worn while handling this product. |
|
nbsp; |
|
|
Excessive force exerted on the fan may cause damage to the fan and/or system. |
|
nbsp; |
|
|
Use and keep product away from reach of children. |
|
nbsp; |
|
|
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. |
|
nbsp; |
|
|
During transportation of the system, the cooler must be removed.
Zalman is not responsible for any damages that occur during the transport of a system. |
|
nbsp; |
|
|
Product design and specifications may be revised to improve quality and performance. |
|
nbsp; |
|
|
Enable PWM function in BIOS settings after installation. |
|
nbsp; |
|
|
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. |
|
|
Liquid metal thermal grease unlike the normal thermal grease it contains electrical conductivity and causes aluminum cooler to rust therefore please avoid using it. Corrosion and short circuits caused by using aluminum cooler are usersquot; responsibility, so please read this carefully before using. (EX: Liquid Pro, Liquid Ultra etcs) |
|
