Socket |
|
CPU |
|
CPU Compatibility |
|
|
Intel |
1155/1156 |
Core i7 |
Supports all speeds |
|
Core i5 |
|
Core i3 |
|
1150/1151 |
Core i7 |
Supports all speeds |
|
Core i5 |
|
775 |
Core 2 Extreme |
Supports all speeds |
|
Core 2 Quad |
|
Core 2 Duo |
|
Pentium D |
|
Pentium 4 |
|
Celeron D |
|
AMD |
FM1 |
Llano |
Supports all speeds |
|
FM2 |
Trinity |
Supports all speeds |
|
AM3+ |
Vishera |
Supports all speeds |
|
Zambezi |
|
AM3 |
Phenom II |
Supports all speeds |
|
Athlon II |
|
AM2+ |
Phenom II |
Supports all speeds |
|
Phenom |
|
Athlon FX |
|
Athlon X2 |
|
Athlon |
|
Sempron |
|
AM2 |
Athlon FX |
Supports all speeds |
|
Athlon X2 |
|
Athlon |
|
Sempron |
|
940 |
Dual-Core Opteron |
Supports all speeds |
|
Opteron |
|
Athlon FX |
|
939 |
Dual-Core Opteron |
Supports all speeds |
|
Opteron |
|
Athlon FX |
|
Athlon X2 |
|
Athlon |
|
754 |
Athlon |
Supports all speeds |
|
Sempron |
|
|
nbsp; |
|
|
|
|
|
nbsp; |
|
Cases equipped with an Air Guide must have their Air Guide Ducts removed before installation. Install only on systems meeting the following conditions. |
|
nbsp; |
|
|
There must be no interfering components (e.g. PSU, VGA card) within 56mm distance from the center of the PSU. |
|
nbsp; |
|
|
There must be no interfering components (e.g. ODD) within 45mm distance from the center of the CPU. |
|
nbsp; |
|
|
Case chassis cover must be distanced at least 135mm away from the motherboard. |
|
|
|
|
|
nbsp; |
|
|
|
nbsp; |
|
|
|
nbsp; |
|
Dimensions |
85(L) x 112(W) x 125(H) mm |
|
Weight |
530g |
|
Base Material |
Pure Copper |
|
Dissipation Area |
3,698? |
|
Thermal Resistance |
0.12 ~ 0.16deg;C/W |
|
|
nbsp; |
|
|
|
nbsp; |
|
Bearing Type |
2 Ball-Bearing |
|
Speed |
1,350rpm plusmn; 10 % ~ 2,600rpm plusmn; 10 % |
|
Noise Level |
18.0dBA plusmn; 10% ~27.5dBA plusmn; 10% |
|
|
nbsp; |
|
|
|
Dimensions : 70(L) x 26(W) x 26(H) mm |
Weight : 20g |
Output Voltage : 5V ~ 11V plusmn; 2% |
|
nbsp; |
|
Allowable Power : 6W or lower |
Connector : 3-Pin |
|
|
|
|
nbsp; |
|
|
|
|
Does not generate noise or vibration in Silent Mode. |
|
nbsp; |
|
|

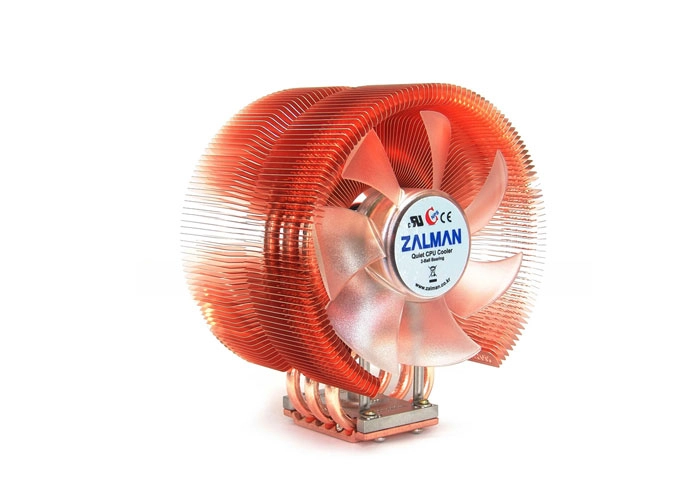

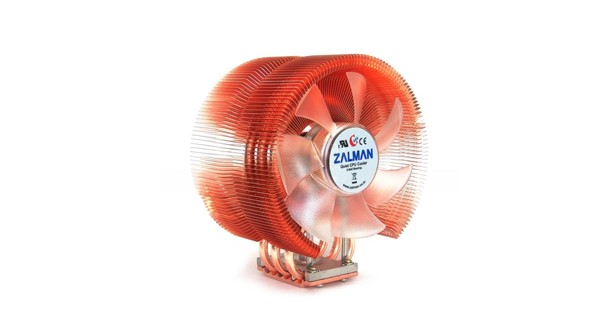

Pure copper heatsink with component layout optimized for maximum cooling efficiency. |
|
nbsp; |
|
|
Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to six heatpipes with the use of just three. |
|
nbsp; |
|
|
Ultra slim fins (0.2mm) for minimized weight and reduced airflow resistance. |
|
nbsp; |
|
|
Equipped with Zalmanrsquo;s low noise 92mm fan. |
|
nbsp; |
|
|
Supports all single and dual core CPUs of Intelrsquo;s Socket 1155/1156/775 and all single and dual core CPUs of AMDrsquo;s Socket FM2/FM1/AM3+/AM3/AM2+/AM2/754/939/940. |
|
nbsp; |
|
|
The adjustable fan speed controller (FAN MATE 2) enables control of noise and cooling performance. |
|
|
|
|
nbsp; |
|
|
|
|
|
Common Components |
|
nbsp; |
- Cooler (CNPS9500A LED)nbsp;
- FAN MATE 2
- FAN MATE 2 Cable
- Double-Sided Tapenbsp;
- Thermal Grease (ZM-STG2M)
- Userrsquo;s Manual |
|
nbsp; |
|
Intel Components |
|
nbsp; |
- Clip Support
- Clip Support Fixing Bolts
- Intel Clipnbsp;
- Washers
- Nuts
- Clip Fixing Bolts |
|
nbsp; |
|
AMD Components |
|
nbsp; |
- AMD Clip
- AMD Clip Lever |
|
|
|
|
nbsp; |
|
|
|
Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
|
nbsp; |
|
|
|
|
Korean Patent Application No.10-0600448 |
|
nbsp; |
|
|
Korean Design Application No. 30-0403411, 0403412 |
|
nbsp; |
|
|
Patent applications pending in over 20 nations around the world including USA, EU, and Japan. |
|
|
nbsp; |
|
|
|
|
The maximum weight specified for a cooler is 450g for Intel Socket 1150/1155/1156/775 and AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2/754/939/940. Special care and attention must be taken when moving a computer equipped with a cooler exceeding the specified weight limit. Zalman Tech Co., Ltd. is not responsible for any damage resulting from moving a computer. |
|
nbsp; |
|
|
Excessive force exerted on the fan may damage the fan, resulting in damage to the system. |
|
nbsp; |
|
|
Do not ingest or make oral contact with the Thermal Grease. If ingested, get medical attention.
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. |
|
nbsp; |
|
|
The computer system may automatically shut down when booting the computer after the system monitoring program outputs a warning stating that the CPU fan is rotating slowly. In such a case, fully turn the Speed Control Knob in the clockwise direction before rebooting to disable the rsquo;CPU Fan Detectedrsquo; option in BIOS, or set the CPU fanrsquo;s rotational speed to 1,350rpm or lower in the system monitoring program. |
|
nbsp; |
|
|
Zalman Tech Co., Ltd. is not responsible for any damages resulting from CPU Overclocking. |
|
|
Liquid metal thermal grease unlike the normal thermal grease it contains electrical conductivity and causes aluminum cooler to rust therefore please avoid using it. Corrosion and short circuits caused by using aluminum cooler are users#39; responsibility, so please read this carefully before using. (EX: Liquid Pro, Liquid Ultra etcs) |
|
