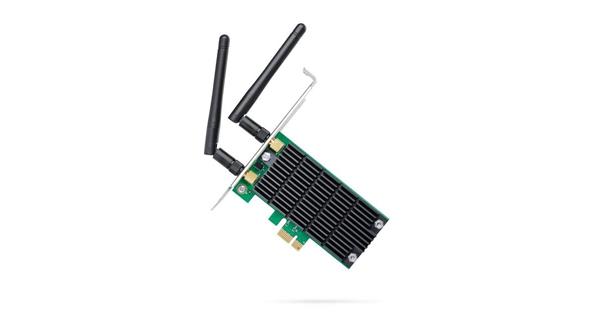

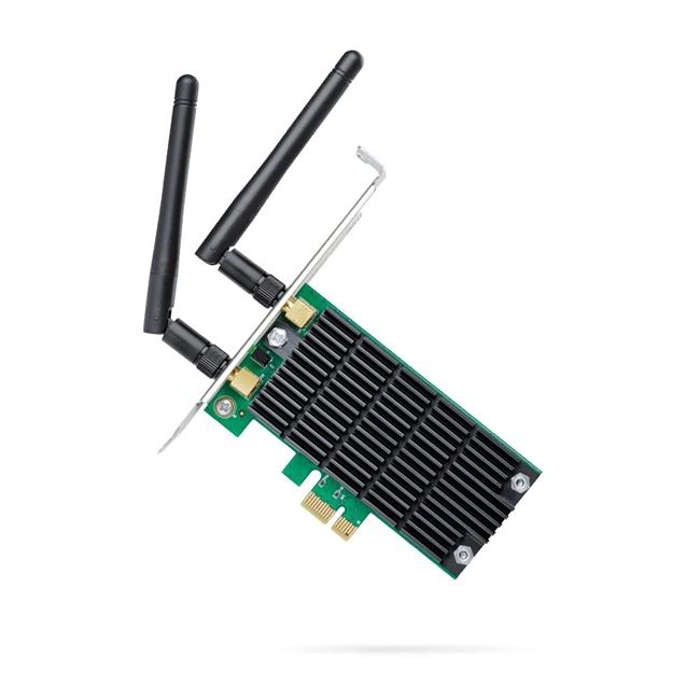

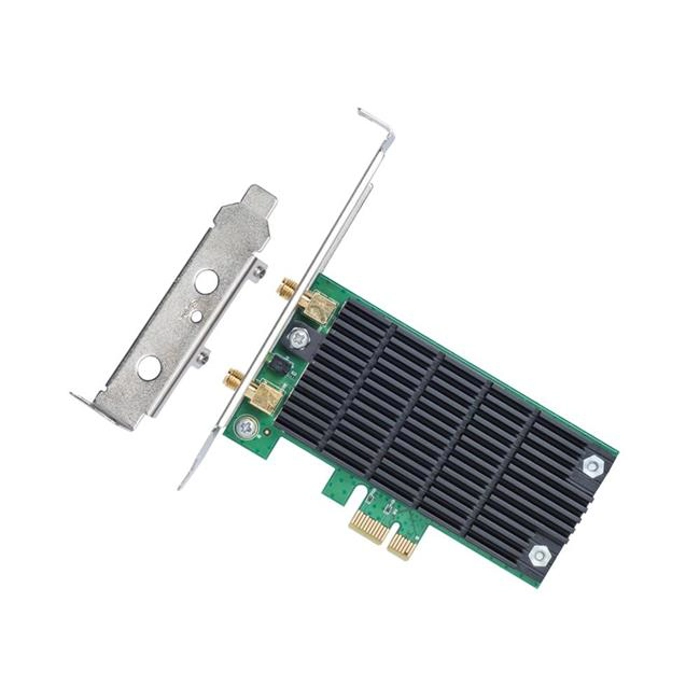

Tp-Lınk Archer T4E Ac1200 Kablosuz Pcı Exp.Adaptör

Arabirim

PCI Express

Boyutlar ( W X D X H )

4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)

Anten Tipi

2 Dual Band Detachable Antennas

Kablosuz Standartlar

IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz

Bağlantı Hızı

5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Alıcı Hassasiyeti

5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm

2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm

İletim Gücü

5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)

Kablosuz Modları

Infrastructure mode

Kablosuz Güvenlik

Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x

Modülasyon Teknolojisi

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Sertifika

CE, FCC, RoHS

Paket İçeriği

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD

Sistem Gereksinimleri

Windows 10/8.1/8/7/XP (32/64bit)

Ortam

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
