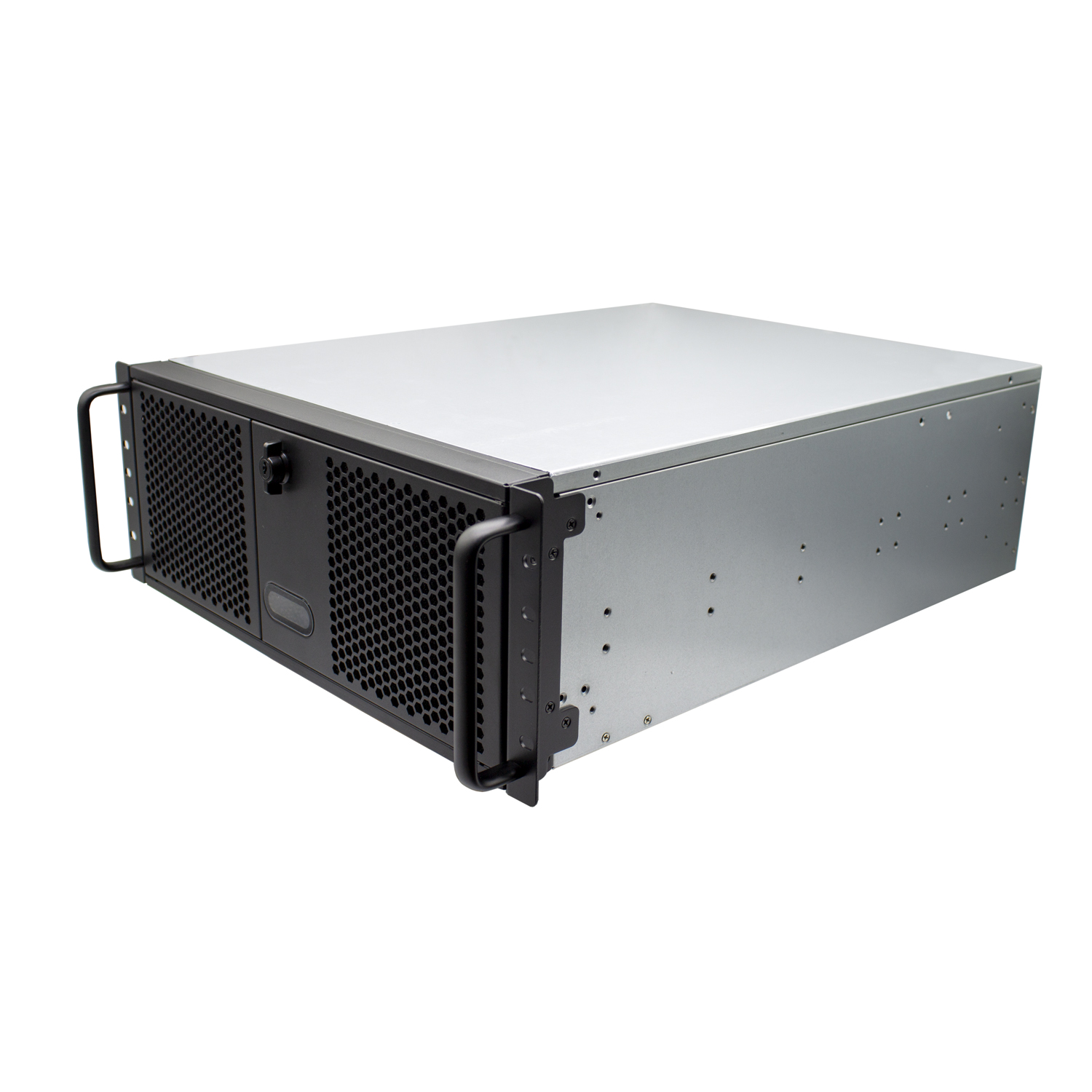

Part# TGC-4550HG-7

• 4U / 550mm Depth Rackmount Server Chassis, no PSU
• 3 x External 5.25" Bays
• 4 x Fixed 3.5" HDD Bays
• 1x Slim ODD Bay
• Standard ATX PSU
• Supports mATX, ATX, Mini-ITX Motherboards
• Sliding Rail Kit optional (TGC-03S-660)

Features:

• 4U rackmount design, meets EIARS-310C standard.
• 3 x 5.25″ drive bays, 4 x 3.5″ drive bays, 1 x slim ODD bay
• Support mATX, ATX, Mini-ITX Motherboards
• Supplied with 1 x 120mm (front) and 1 x 80mm (front) ball bearing fans fitted (optional: rear 2 x 80mm fans)
• 2 x front accessible USB 2.0 port

Specifications:

• Drive Bay: Supports 4 x 3.5″ drives, 3 x 5.25″ drives, 1x Slim ODD
• Cooling Fan: 1 x Front 120mm + Front 80mm ball bearing fans fitted (optional: rear 2 x 80mm fans)
• Switch: 1 x Power ON/OFF, 1 x System reset
• Indicator: 1 x Power, 1 x HDD, 1 x LAN LEDs
• Connector: 2 x front accessible USB 2.0 port
• Motherboard Compatibility:
  • Mini-ITX
  • Micro ATX
  • ATX
• Power Supply: Standard ATX (Redundant ATX not supported)
• Dimensions (WxDxH): 483 x 550 x 176mm
• Packing: single box
• Weight: 12kg (approx)
• Environment:
  • Operating Temp. 0°C ~ 55°C (32°F ~ 131°F)
  • Non-Operating Temp. -20°C ~ 60°C (-4°F ~ 140°F)
  • Relative Humidity: 5%~ 95%,non-condensing
• Vibration (5-500Hz): 1g (Operating), 2g (Non-Operating)
• Shock: 10g (with 11ms duration, half sine wave) (Operating), 30g (Non-Operating)
