MKGW1-BW Pro is a multi-wireless IoT Gateway with Bluetooth Low Energy (BLE) and Wi-Fi. It captures data from BLE 5 peripherals and send it to Internet MQTT/HTTP Server or local TCP/UDP Server over Wi-Fi or Ethernet.
The Gateway is a great option to connect your Bluetooth applications without compromising cost or security.
• Bluetooth 5 – 1M/2M PHY, Coded PHY(long range)
• Support AWS/Azure/Google/Alibaba IoT Cloud platforms
• More than 150m Bluetooth scanning range (1M PHY and open area)
• Up to 319 Beacon packets scanned per second
• Recognize and parse Apple iBeacon, Google Eddystone and MOKO Beacon protocols intelligently
• Cloud remote monitoring and configuring the Gateway (Cloud Management)
Used in conjunction with Bluetooth Beacons or other devices and no matter in hospital, school, factory, shopping mall, government department, the smart MKGW1-BW Pro Gateway helps you easily manage employees, assets and sensors.
Support Wi-Fi or Ethernet to connect the Internet and can access the world standard MQTT (SSL & Proxy)/HTTP (SSL/TLS)/TCP/UDP network Server such as AWS/Azure/Google/Alibaba IoT Cloud platforms.
Easy to install and provides a variety of power modes to ensure that you can use it in a variety of situations.
The friendly Web GUI console and remote Cloud Management facilitate to configure the Gateway and achieve your IoT application quickly.

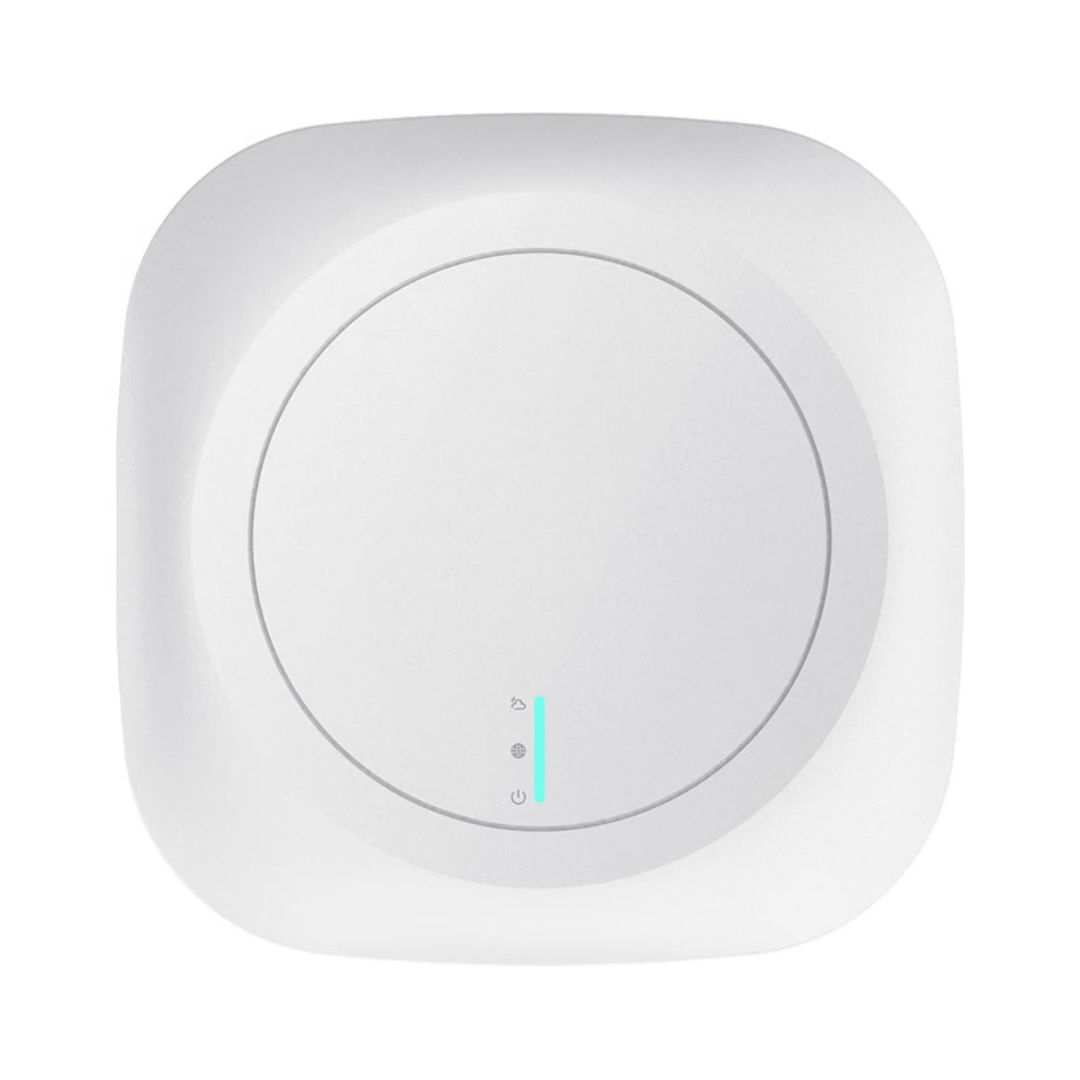

MKGW1-BW Pro Bluetooth Gateway
SMART Configuration
Web GUI - Gateway user interface
Cloud management
Filter Beacon packets
By RSSI/ MAC address/ BLE name/ raw data
Bluetooth scanning filter logic
Regular expression
Parse Beacon protocols
Apple iBeacon
Google Eddystone - UID, URL, TLM
MOKO Beacon
Beacon data format
JSON array/ Hexadecimal
Offline storage
Store Beacon packets on a USB flash drive
BLE connection
Auto PHY and up to 8 BLE peripherals can be connected
Power Supply
Micro USB: 5V/ 1A
DC Port: 9-12V/ 1A
PoE: IEEE 802.3af
GENERAL/DESIGN
Dimensions: 120 x 120 x 22.5 mm
Weight: 136g
Material: ABS-FR
Color: White
Installation: Horizontal, wall or ceiling mount
Protection rating: IP20, UL94 V0
Operating temperature: -20°C to 45°C
Storage temperature: -40°C to 70°C
Humidity: Maximum 95% non-condensing RH
CONNECTIVITY
Bluetooth: Nordic nRF52833 Cortex-M4F, Bluetooth 5.0 - 1M, 2M, Coded PHY
Wi-Fi: IEEE 802.11 b/g/n, 1T1R with 150Mbps PHY
RF antenna: Bluetooth 2.4GHz 4.2dBi FPC antenna, Wi-Fi 2.4GHz 5dBi FPC antenna
Internet connection: WLAN/Ethernet
Network failover: Yes
Server access
MQTT (SSL/TLS, socks5 proxy)
HTTP (SSL/TLS)
TCP/UDP
Certifications
Regulatory: USA (FCC), Europe (CE, REACH, RoHS)
Customization: All worldwide certifications can be customized
