| SYSTEM | |
| MB FORM FACTOR | Others |
| CPU | Onboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W) |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB |
| BIOS | AMI Flash ROM |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (Optional) |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12V |
| POWER ON MODE | AT / ATX |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| HDMI | 1 x HDMI 2.0 (Max Resolution: 4096 x 2160@60Hz) |
| LAN | |
| ETHERNET | 4 x RJ45 for Intel® I226-V 2.5GbE |
| SYSTEM I/O | |

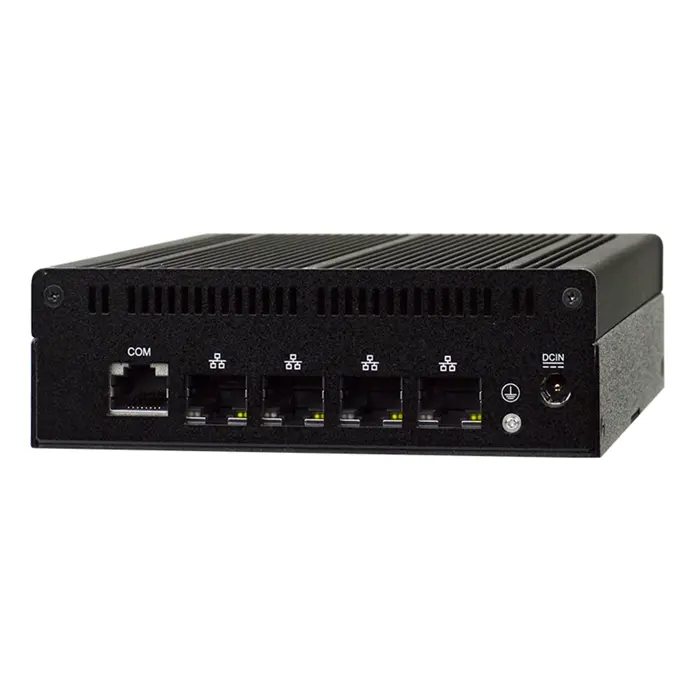

| REAR PANEL I/O | 4 x RJ45 1 x COM (RJ45 Type) 1 x DC-in Jack (12V) 1 x GND Hold 1 x WIFI Antenna Hole |
| FRONT PANEL I/O | 1 x Power Button 1 x Power LED 1 x Reset Button 1 x USB 3.1 1 x USB 2.0 1 x HDMI 1 x WIFI Antenna Hole |
| STORAGE | |
| eMMC | Onboard 64GB eMMC 5.1 (optional) |
| EXPANSION | |
| M.2 | 1 x M-Key 2242 (PCIe Gen.3 x2/SATA interface) support NVME, (co-layout M.2 B-Key) 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) 1 x B-Key 3042/3052 (USB3.1 interface) co-layout M.2 M-Key |
| SIM | 1 x SIM Card Slot |
| MECHANICAL | |
| MOUNTING | Wall Mount |
| DIMENSIONS (W x D x H) | 125.0 (W) x 109.2 (D) x 39.5 (H) mm |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 95% @ 40°C, Non-condensing |
| STORAGE HUMIDITY | 0 ~ 95% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS China RoHS ErP |
Ürünümüz Windows 10, Windows 11, Pfsense 2.7.2, Ubuntu 24.04.3 ile test edilmiş olup sorunsuz çalışmaktadır.
Ürünün PDF'ine aşağıdaki linkten ulaşabilirsiniz,
