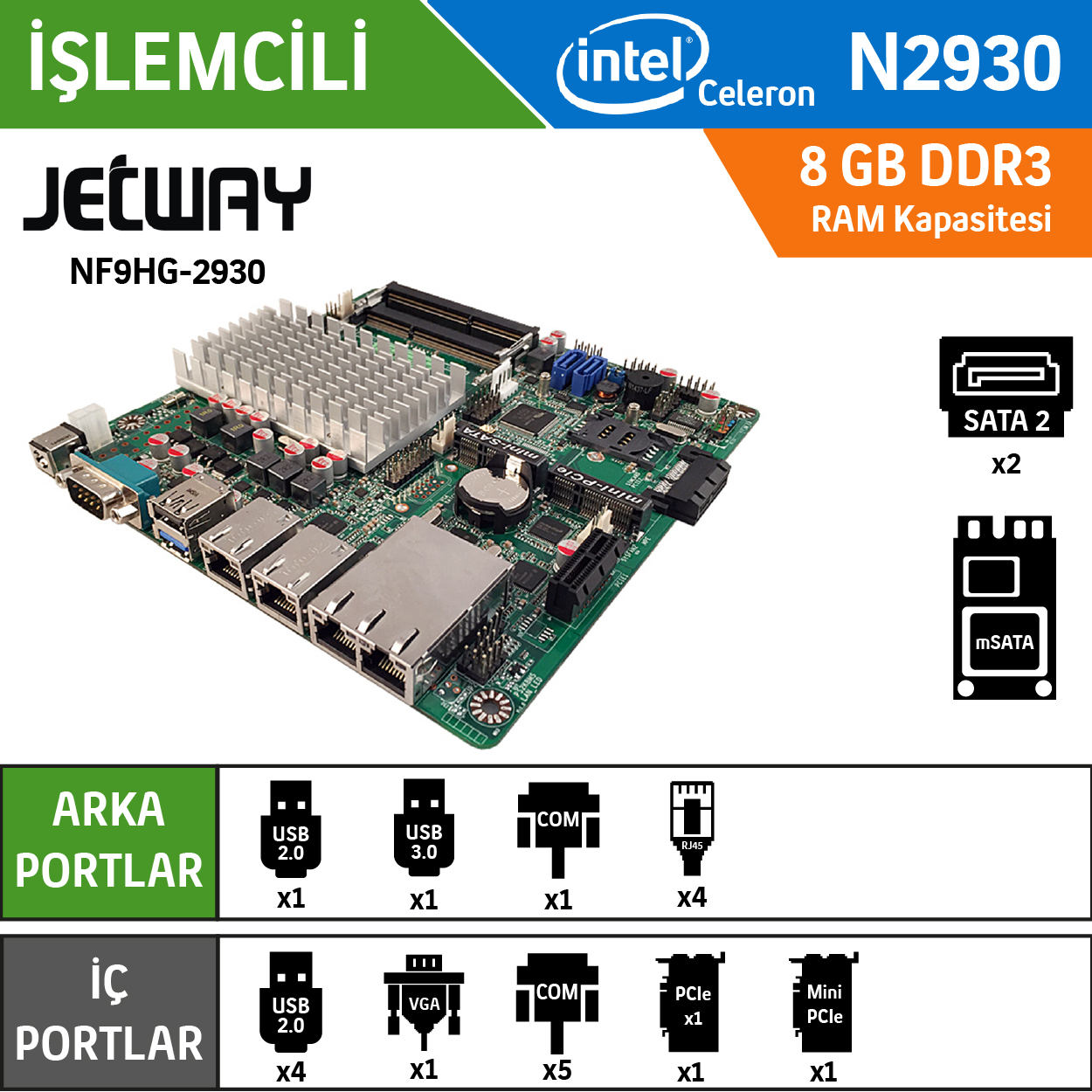

Form Factor |
|
|
Dimensions |
– Slim Mini-ITX (6.7-in * 6.7-in, 170 * 170mm) |
|
Processor System |
|
|
CPU |
– Intel® Bay Trail N2930 SoC Processor |
|
Core Number |
– 4 |
|
Max Speed |
– 2.16GHz |
|
L2 Cache |
– 2MB |
|
Chipset |
– SoC |
|
BIOS |
– AMI 64Mb Flash ROM |
|
Expansion Slot |
|
|
Mini-PCIe |
– 1 (full size) |
|
mSATA |
– 1 share with SATA2 (full size) |
|
PCIe |
– 1 (x1, vertical or at side option) |
|
SIM |
– 1 |
|
Memory |
|
|
Technology |
– Dual Channel DDR3L 1333/1066MHz SDRAM |
|
Max. |
– 8GB |
|
Socket |
– 2 * SO-DIMM |
|
Graphics |
|
|
Controller |
– Intel® HD Graphics |
|
VRAM |
– Shared Memory |
|
VGA |
– 1 (Internal, Max. Resolution: 1920×1080@60Hz) |
|
LVDS |
– 0 |
|
HDMI |
– 0 |
|
MultiDisplay |
– No |
|
Ethernet |
|
|
Ethernet |
– 10/100/1000 Mbps |
|
Controller |
– Intel i211AT GbE |
|
Connector |
– 4 * RJ45 |
|
SATA |
|
|
Max Data Transfer Rate |
– 2 * SATAII (3.0Gb/s) (1 share with mSATA) |
|
Rear I/O |
|
|
Ethernet |
– 4 |
|
USB |
– 2 (1 * USB 3.0, 1 * USB 2.0) |
|
Serial |
– 1 * RS232 |
|
DC-input |
– 1 |
|
Internal Connector |
|
|
USB |
– 4 (4 * USB 2.0) |
|
VGA |
– 1 |
|
Serial |
– 1 (1 * RS-232 with 5V/12V selectable header) |
|
SATA |
– 2 |
|
mPCIe |
– 1 |
|
mSATA |
– 1 |
|
Chassis intrusion |
– 1 |
|
PS/2 |
– 1 |
|
Watchdog Timer |
|
|
Output |
– From Super I/O to drag RESETCON# |
|
Interval |
– 256 segments,0,1,2…255sec/min |
|
Power Requirements |
|
|
Input PWR |
– +12V DC-in (2-pin PWR Con) |
|
Power On |
AT/ATX Supported |
|
Certifications |
|
|
Certifications |
– CE, FCC, RoHS, REACH |
|
Environment |
|
|
Temperature |
– Operating: 0°C – 60°C |
|
– Storage: -20°C – 85°C |
|
|
Warranty |
– 2 Years Limited Warranty |
