| SYSTEM | |

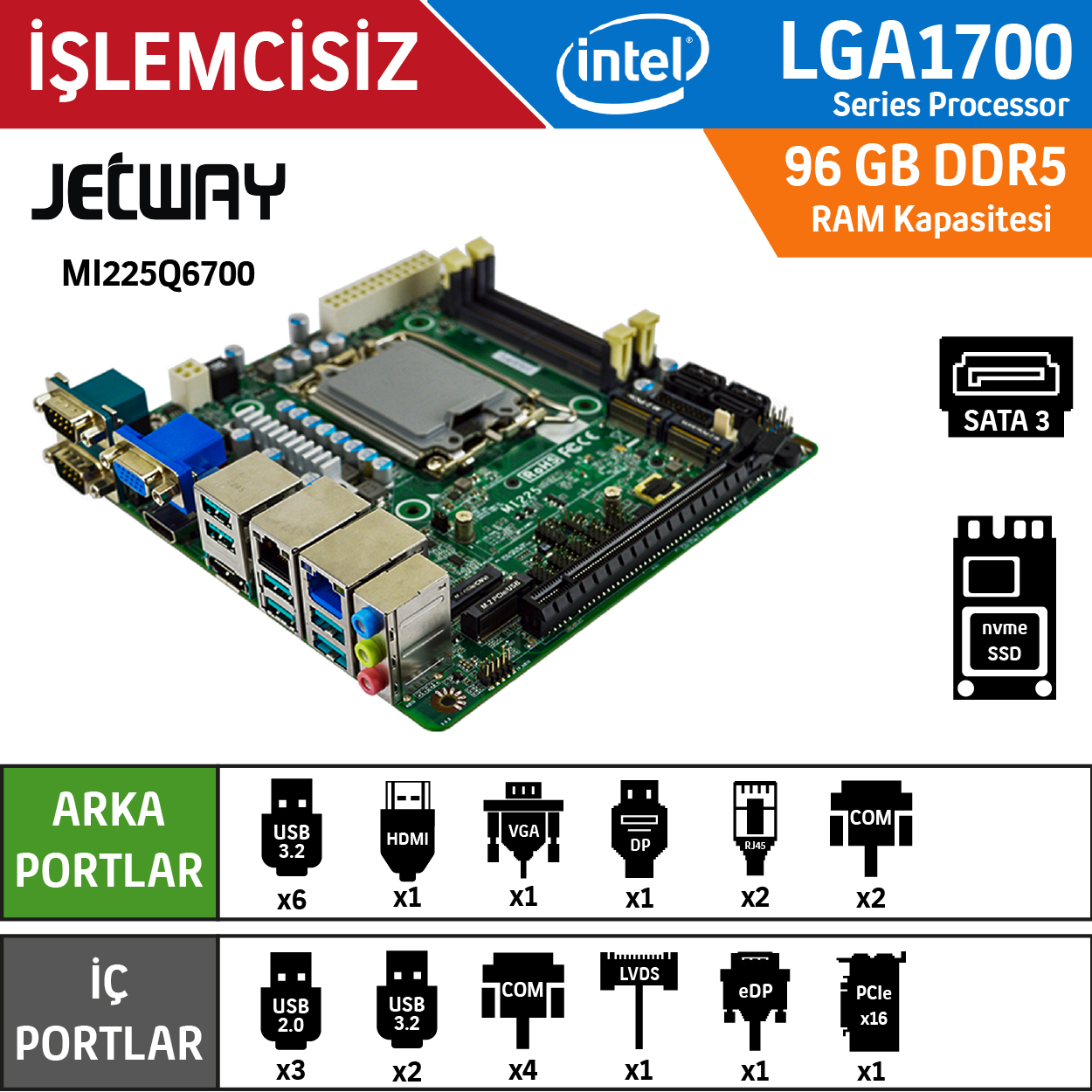

| MB FORM FACTOR | Mini-ITX |
| CPU | Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 65W) |
| CHIPSET | Intel® Q670E |
| MEMORY | 2 x DDR5 4800MT/s SO-DIMM, up to 96GB 2 x DDR5 5600MT/s SO-DIMM, up to 64GB (Intel® 13th/14th Gen CPU) |
| BIOS | AMI 256Mb Flash ROM |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| DIMENSION (W X D) | 170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″) |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | ATX Power Supply |
| POWER ON MODE | AT / ATX |
| CONNECTOR | 24+4-pin ATX PWR |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| LVDS | 1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP) |
| DP | 1 x DP 1.4a (Max Resolution: 8K@60Hz) |
| HDMI® | 1 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| Line-in | 1 x Audio Jack for Line-In |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I219-LM GbE |
| USB PORT | |
| USB | 6 x USB 3.2 Gen 2 Internal Header for 2 x USB 3.2 Internal Header for 3 x USB 2.0 |
| SERIAL PORT | |
| COM | 1 x DB-9 for RS-232/422/485 1 x DB-9 for RS-232 Internal Header for 4 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| ADDITIONAL | 1 x Chassis Intrusion 1 x Audio Header 1 x PS/2 1 x LVDS (co-layout eDP) |
| STORAGE | |
| SATA | 4 x SATA III |
| RAID | RAID 0, 1, 5, 10 |
| EXPANSION | |
| M.2 | 1 x M-Key 2280 (PCIe Gen.3 x4 interface) support NVMe 1 x M-Key 2242 (PCIe Gen.4 x4/SATA interface) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi 1 x B-key 3042 (PCIe Gen.3 x1/USB3.2 Gen.2/USB2.0 interface) support 4G Module |
| PCIe | 1 x PCIe x16 (Gen.4) |
| SIM | 1 x SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS China RoHS REACH |
