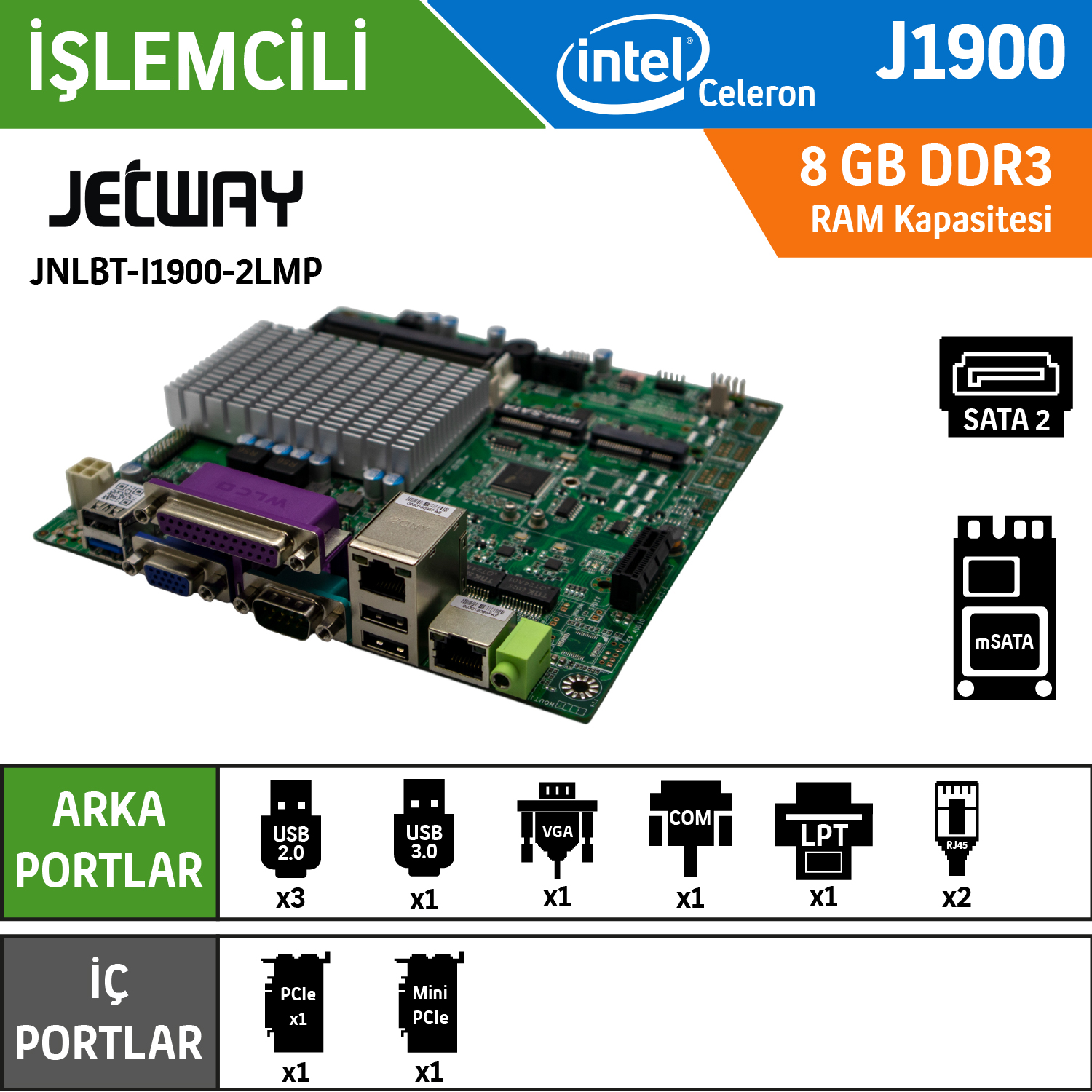

CPU

– INTEL® Bay Trail J1900 (2.0GHz) Quad Core processor
– 2 Phase CPU Power Support

Chipset

– Fintek® F71869A

Memory

– 1*SO-DIMM slot
– Support DDR3L 1333
– Max. capacity of system memory up to 8GB

Expansion Slots

– 1 * MiniPCI-E connector
– 1* PCIex1 slot

Storage

– 1* Serial ATA2 3Gb/s connector
– 1 * M-SATA Connector

Audio

– !!! No Sound Support !!!

Ethernet LAN

– 2*Realtek® RTL8111H Chip
– PCI Express Gigabit LAN

LVDS

– !!! No LVDS Support !!!

USB

– 3* USB 2.0/1.1
– 1* USB3.0

Special Features

– Support CPU Smart Fan
– Support Watch dog Technology
– Support GPIO Technology
– Support Power On board
– Support Slim Fan design
– Support Slim hard drive design
– Thunder Protection Function
– All Solid Capacitor design
– All Power Pack MOSFET design

Back Panel I / O

– 3* USB 2.0/1.1 ports
– 1* USB3.0 port
– 2* RJ-45 port
– 1* Line-out port
– 1* VGA port (Max. Resolution: 1920*1080@60Hz)
– 1* COM port
– 1* LPT port

Internal I / O

– 2* CPU / Chassis Fan connectors
– 1* PS2/KB header
– 1* 4-pin ATX 12V Power connector
– 1* 4-pin SATA Power connector
– 1* GPIO header
– 1* Mini PCI-e connector
– 1* M-SATA Connector
– 1* SATA Connector
– 1* Front panel header

BIOS

– AMI 64MB DIP Flash ROM

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C

Form Factor

-Thin mini ITX Form Factor (170mm X 170mm)
