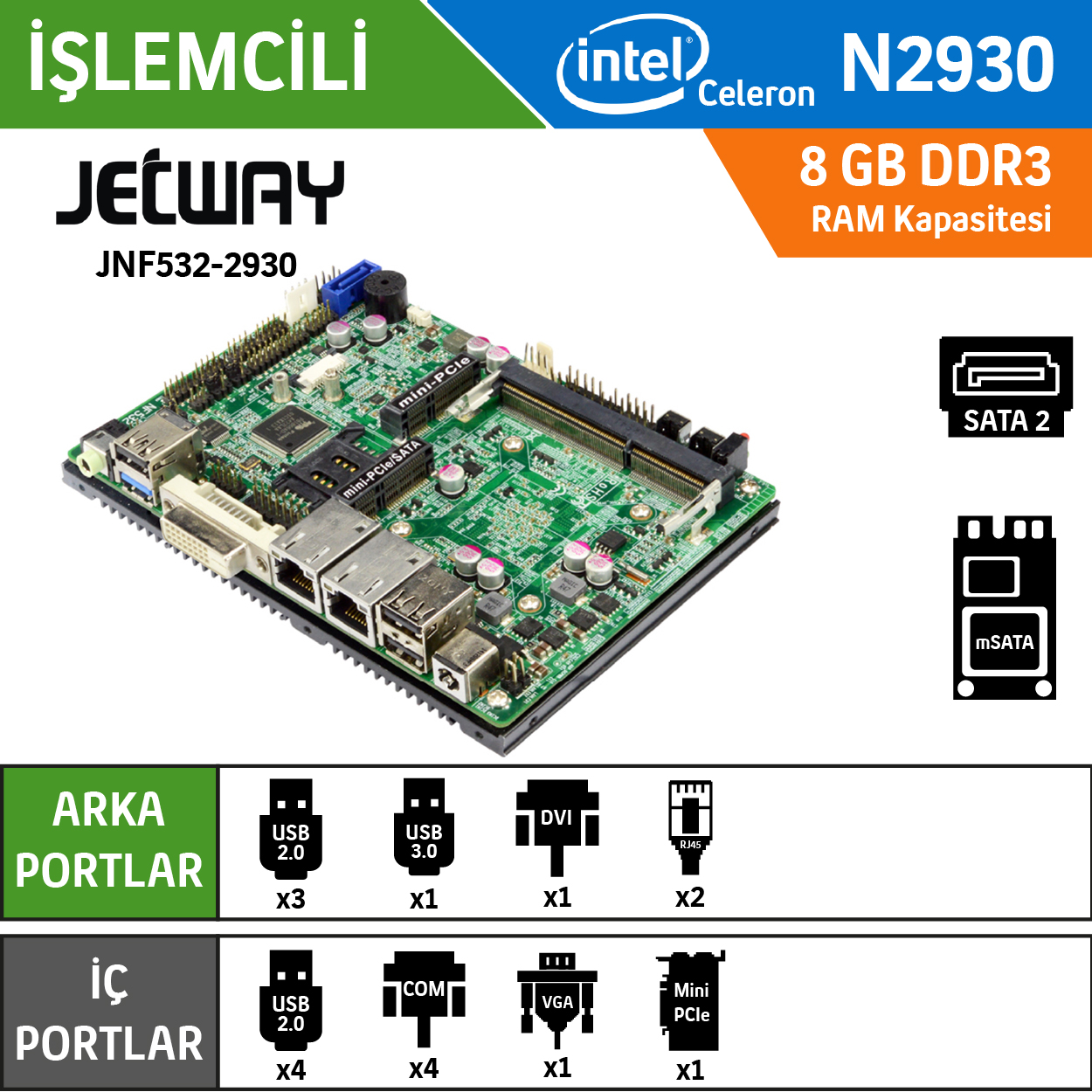

Form Factor |
|
|
Dimensions |
– 3.5” SBC (148X102 mm) |
|
Processor System |
|
|
CPU |
– Intel® Bay Trail N2930 SoC Processor |
|
Core Number |
– 4 |
|
Max Speed |
– 2.16GHz |
|
L2 Cache |
– 2MB |
|
Chipset |
– SoC |
|
BIOS |
– AMI 64Mb Flash ROM |
|
Expansion Slot |
|
|
Mini-PCIe |
– 1 (full size, shared with mSATA) + 1 (half size) |
|
mSATA |
– 1 (shared with full size Mini PCIe) |
|
Memory |
|
|
Technology |
– DDR3L 1333MHz SDRAM |
|
Max. |
– 8GB |
|
Socket |
– 1 * SO-DIMM |
|
Graphics |
|
|
Controller |
– Intel® HD Graphics |
|
VRAM |
– Shared Memory |
|
VGA |
– 1 (internal, Max. Resolution: 1920×1080@60Hz) |
|
DVI-D |
– 1 (Max. Resolution: 1920 * 1200@60Hz) |
|
MultiDisplay |
– Yes (Dual Display) |
|
Ethernet |
|
|
Ethernet |
– 10/100/1000 Mbps |
|
Controller |
– Realtek RTL8111G GbE |
|
Connector |
– 2 * RJ45 |
|
SATA |
|
|
Max Data Transfer Rate |
– 1 * SATAII (3.0Gb/s) |
|
Rear I/O |
|
|
DVI-D |
– 1 |
|
Ethernet |
– 2 |
|
USB |
– 4 (3 * USB 2.0 + 1 * USB 3.0) |
|
Audio |
– 1 (Line-out) |
|
DC-input |
– 1 |
|
Internal Connector |
|
|
USB |
– 4 ( 4 * USB 2.0) |
|
PS/2 |
– 1 |
|
VGA |
– 1 |
|
Serial |
– 4 (3 * RS-232, 1 * RS232/422/485 with 5V/12V selectable header) |
|
SATA |
– 1 * SATAII (3.0Gb/s) |
|
mPCIe |
– 1 (full size, shared with mSATA) + 1 (half size) |
|
mSATA |
– 1 (shared with mPCIe) |
|
SIM card holder |
– 1 |
|
GPIO 8-bit |
– 4-in / 4-out |
|
Chassis intrusion |
- 1 |
|
Audio Header |
– 1 (Line-out & MIC) |
|
HDMI-SPDIF |
– 1 |
|
SMBUS |
– 1 |
|
AT mode jumper |
– 1 |
|
Watchdog Timer |
|
|
Output |
– From Super I/O to drag RESETCON# |
|
Interval |
– 256 segments, 0,1,2…255sec/min |
|
Power Requirements |
|
|
Input PWR |
– +9~24V DC-In (2-pin PWR Con) |
|
Power On |
AT/ATX Supported |
|
Certifications |
|
|
Certifications |
– CE, FCC, RoHS, REACH |
|
Environment |
|
|
Temperature |
– Operating: -20°C ~ 60°C |
