Jetway F532W-2930 4 Seri Port Mini PC

4 Seri portlu
Quad Core cpu
Jetway F532W-2930 4 Seri Port Mini PC

İşlemci
Fanless INTEL® Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
Bios
AMI UEFI
Bellek
4Gb 1333MHz Notebook DDR3-Ram ( max : 8gb destekler )
1.35V ram ile çalışır..
Sabit disk
64Gb 2.5" Sata SSD Harddisk
VGA
1x VGA, 1x DVI mevcuttur..
Ethernet
2 * Realtek RTL8111G PCI-E Gigabit LAN
Ses
Realtek ALC662 HD Audio
Wireless
Mevcuttur ( 2 anten içinden çıkmaktadır )

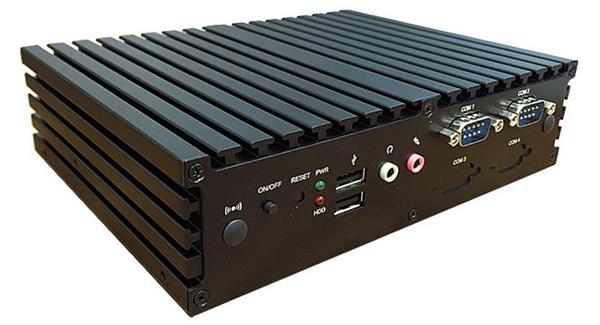

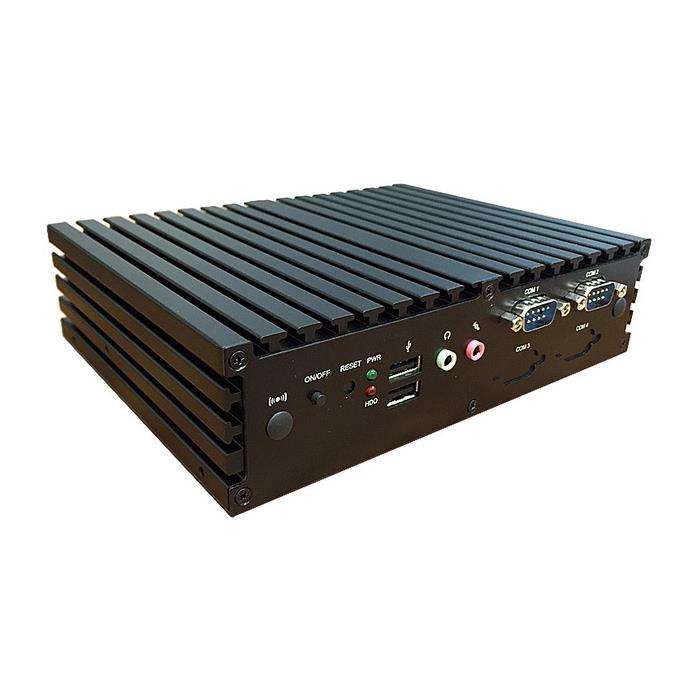

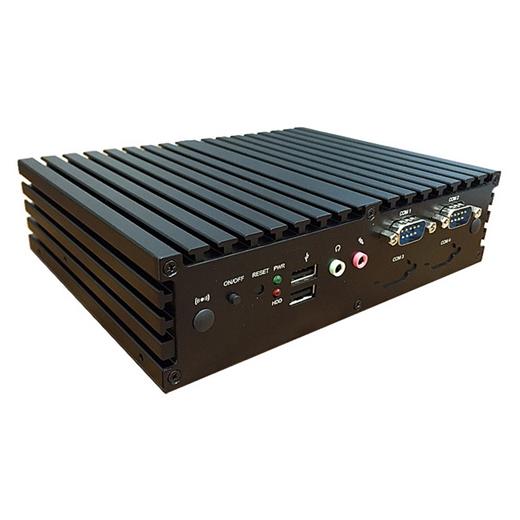

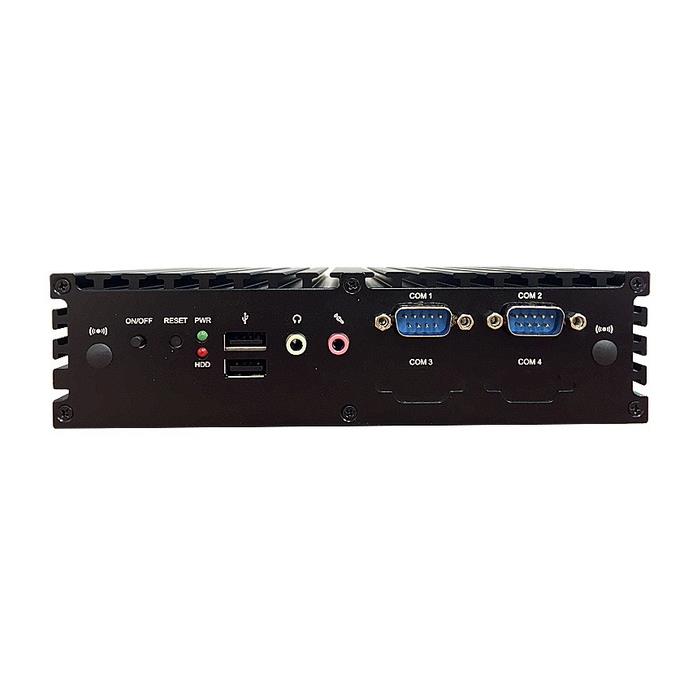

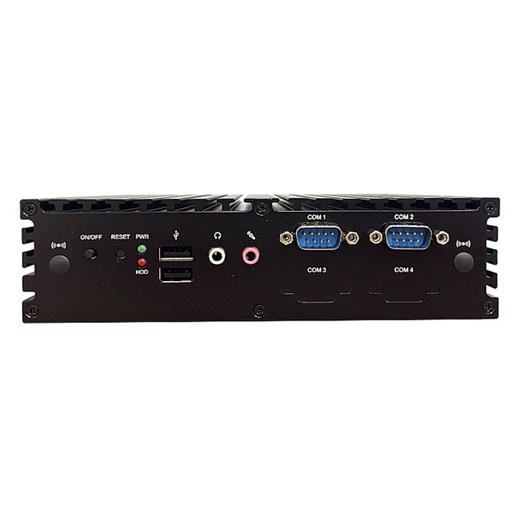

Front I/O Port 1 * Power Button
1 * Reset Button
2 * USB 2.0 ports
1 * Line Out Jack
1 * Microphone Jack
4 * Serial Ports (3 * RS232, 1 * RS232/422/485)
(2 * installed & 2 * cables included in accessory box)
2 * WIFI Antenna holes

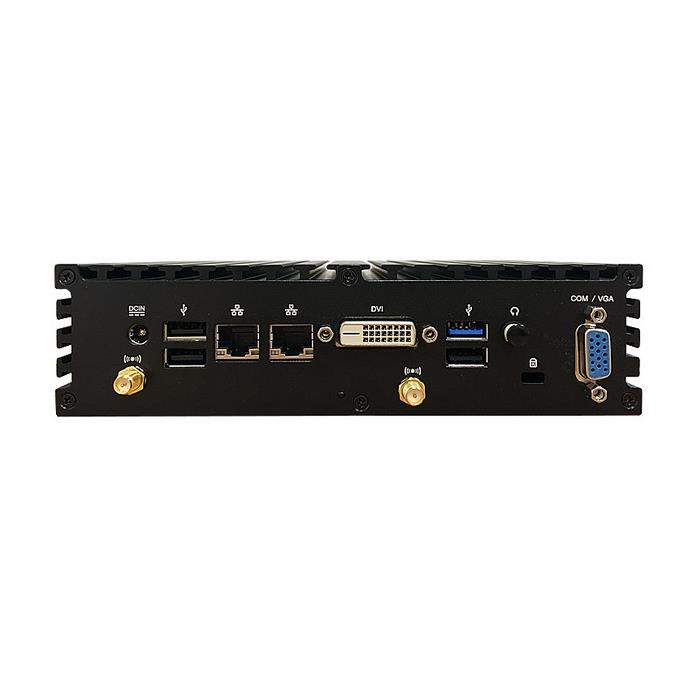

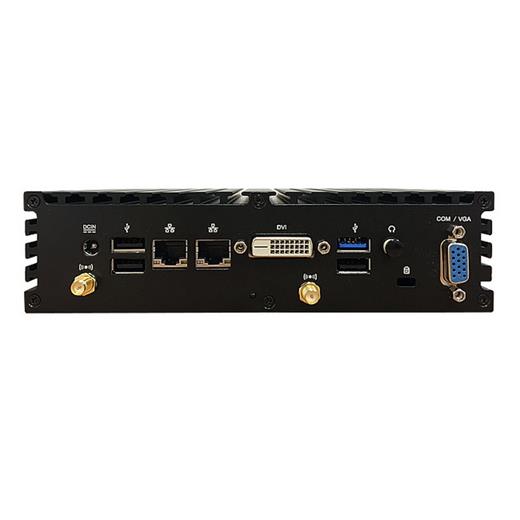

Rear I/O Port 1 * +9V ~ +24V DC-in jack
1 * USB 3.0 ports
3 * USB 2.0 ports
2 * RJ-45 ports
1 * DVI-D port
2 * SMA Connector for WiFi Antenna
1 * Line Out jack
1 * Kensington Lock Hole
1 * VGA port
Power
12V 5 Amper 60W adaptör
Expansion Slot
1 * full size Mini PCI-E slot
1 * SIM kart slot
Sertifikalar
EMC : CE , FCC
Safety : RoHS , ErP
Environment
Operating Temperature : 0 ~ 40°C
Storage Temperature : -20°C ~ 85°C
Mounting
Wall mounting Kits
Boyutlar
Uzunluk: 18,5cm Genişlik:14,2cm Yükseklik:4,8cm
