Cpu
INTEL CORE I3 4170 3.7GHz 3MB (VGA)1150p
Bios
AMI 64Mbit Flash BIOS
System Chip
Intel® Haswell Q87
Ram
4gb ram ( onboard olarak geliyor )
Harddisk
120gb 2.5" Sata SSD Harddisk
Graphics
Intel® HD Graphics 4000 series (by CPU)
Ethernet
2* Intel® i211AT GbE
Storage
1 built in 2.5” SATA HDD bracket
1 M.2 socket (2260/2280 size)
Expansion
1 Full size Mini PCI-e
1 PCI-e x16, 2 PCI slots, (Optional 1 PCI-e x16,1PCI slots or 3 PCI slots)
Extend
1 Extend Card,Support 8 x USB3.0(Max 14), 4 x GIGALAN(Max 8),
4 x COM(RS232/422/485), 16 bit GPIO(5/12/24V) (Max 32bit)

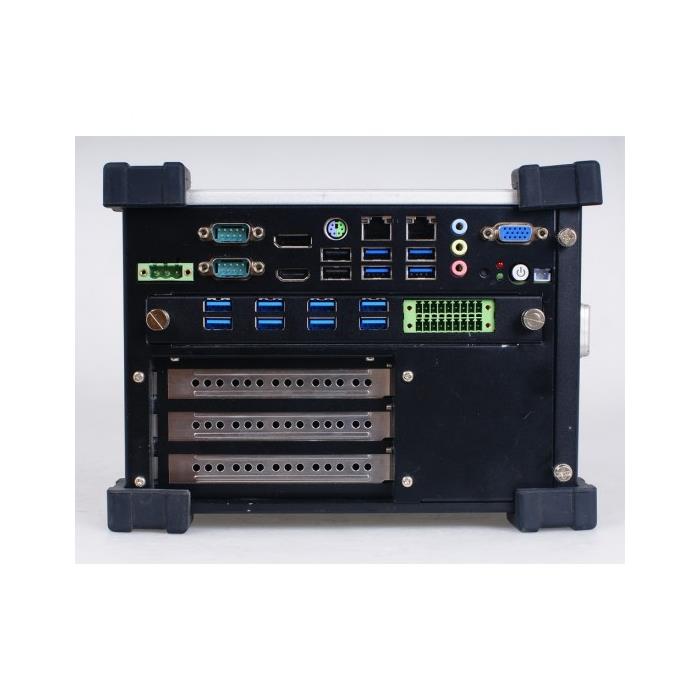

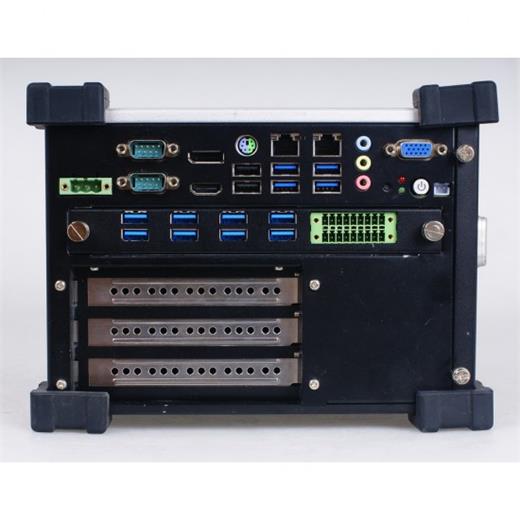

I/O Interface
Power Connector
1 x 3 Pin, terminal Block with lock
Serial Port
2 x RS-232/422/485 with DB9 connectors, automatic RS-485 data flow control
Display
1 x VGA, support 1920 x 1200 @ 60Hz
1 x HDMI 1.4a, support 1920 x 1080 @ 60Hz
1 x DP 1.2, support 1920 x 1080 @ 60Hz
LAN Port
2 x RJ45, 10/100/1000 Mbps
PS/2 Port
1 x PS/2 Keyboard & Mouse port
USB Port
4 x USB3.0 Ports, 2 x USB2.0 Ports
Audio
MIC, Line-in, Line-out
Front Power Button
1 x 2Pin Power connector
Power Button
1 x Power Button
Rest Button
1 x Reset Button
LED
1 x Power LED, 1 x HDD LED
General
Certification
FCC, CE, ROHS
Dimensions
(W x D x H)
HM-1000:212x150 x 220mm
Mounting
Stand mount, Enclosure mount
Weight(Net)
6.7Kg
Power Requirements
9~36VDC
OS Support
Windows XP/7/8/10, Linux
Environment
Temperature
Operating:-10~60°C
Storage: -20~70°C
Relative Humidity
10~90% RH, non-condensing
Vibration Protection
Operating , IEC 60068-2-64-2008
5.1Grms, random,5~500Hz,1hr/axes(SSD)
Shock Protection
Operating , IEC 60068-2-27-2008
30G,half sine wave,11ms(SSD)
CE Protection
EN 55032 : 2015
EN 55024 : 2010 + A1 : 2015
EN 61000-3-2 : 2014
EN 61000-3-3 : 2013
