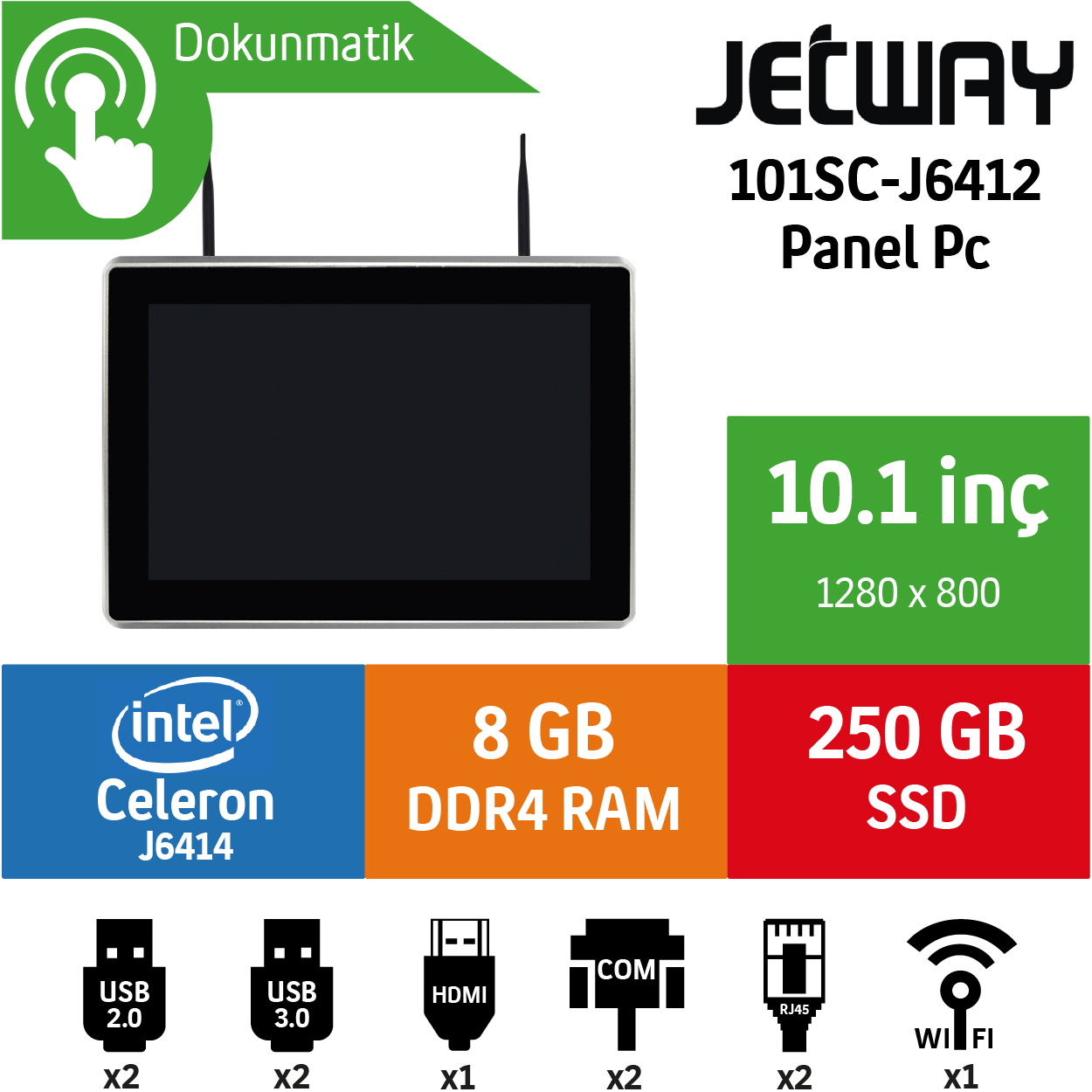

Model

– HPC101SC-FP6412

Main System

– Intel® Elkhart Lake J6412 2.0GHz/QC processor
– DDR4-3200MHz SO-DIMM up to 32GB
– 128MB SPI Flash ROM BIOS
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10/ 11 / Linux (Option)

Display

– IP65, NEMA 4 rugged protection, Full planar metal border
– 10.1″ With LED Backlight
– 400nits Brightness (cd/m²)
– 16.2M display color
– 1280 x 800 @ 60Hz resolution
– 170°/170° viewing angle (H/V)
– 0.1695 x 0.1695mm pixel pitch
– 16:10 aspect ratio
– 800:1 contrast ratio
– 30ms response time

Touch Screen

– Projected capacitive type
– 257.10 x 159.66mm ±0.2mm
– Transparency ?87%
– Surface Hardness ?6H (JIS-5400)
– Glass haze value ?3%

I/O Connector

– 2* USB3.2 (Gen1)
– 2* USB2.0
– 1* 8bit GPIO
– 2* RS232/422/485
– 1* HDMI2.0 (Max Resolution: 3840 x 2160@60Hz)
– 2* Intel® i225-V 2.5GbE
– 1* Locking Jack 12~28V DC input
– 1* Power button

Storage

– 1* 2.5” SATA bay
– 1* M.2 M key (2242/2280, SATA/NVMe)

Expansion

– 1* M.2 E-key (2230 for WIFI/BT Module)
– 1* M.2 B-key (3042/3052 for 4G/5G Module)

Case

– Aluminum panel
– Iron case
– Silver + White color
– Spray paint coating requirement

Power

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
– Consumption: 25.5W

Compliance

– CE, FCC, IP65 (Front)

Safety

– Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms

Dimensions

– 258.96*176.60*59.7mm

Temperature

– Operating: -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition)
– Operating: -10°C ~ 60°C (with W.T. DRAM/HDD)
– Storage: -20°C ~70°C
