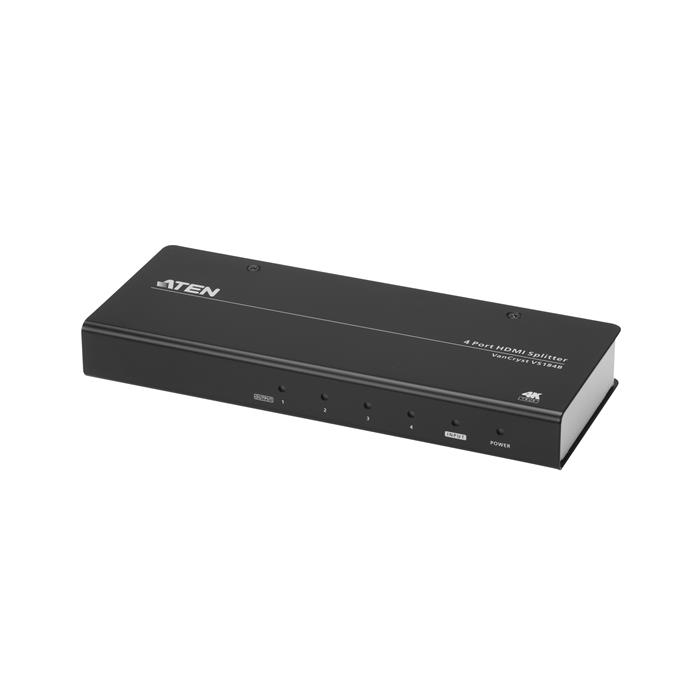

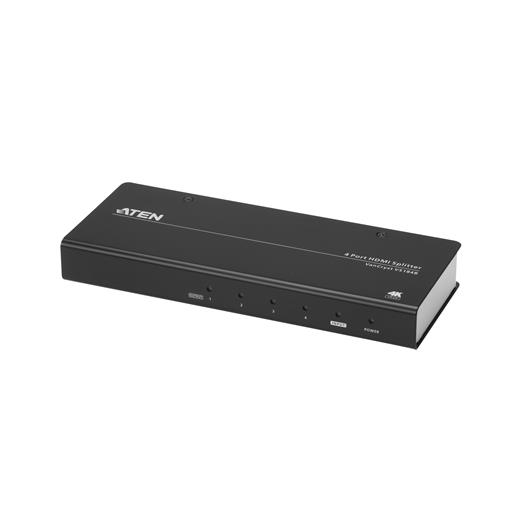

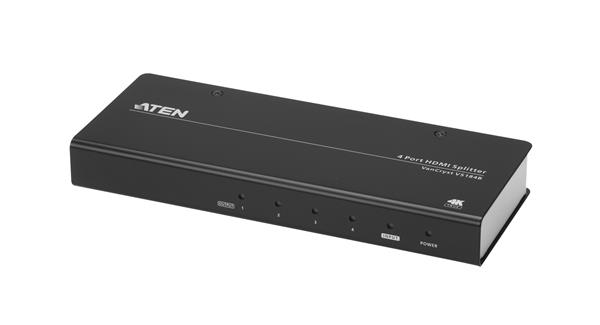

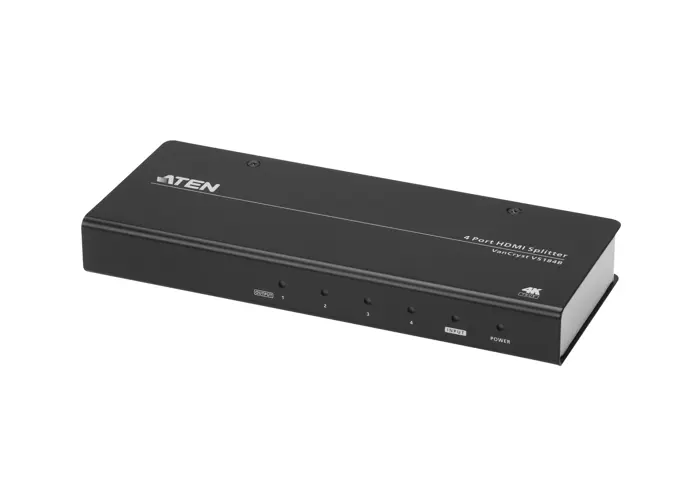

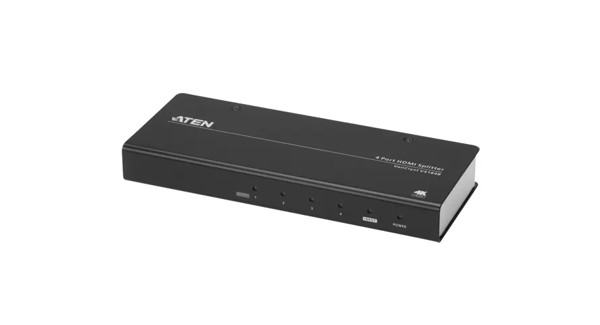

Aten-Vs184B 4-Port True 4K Hdmı Splitter

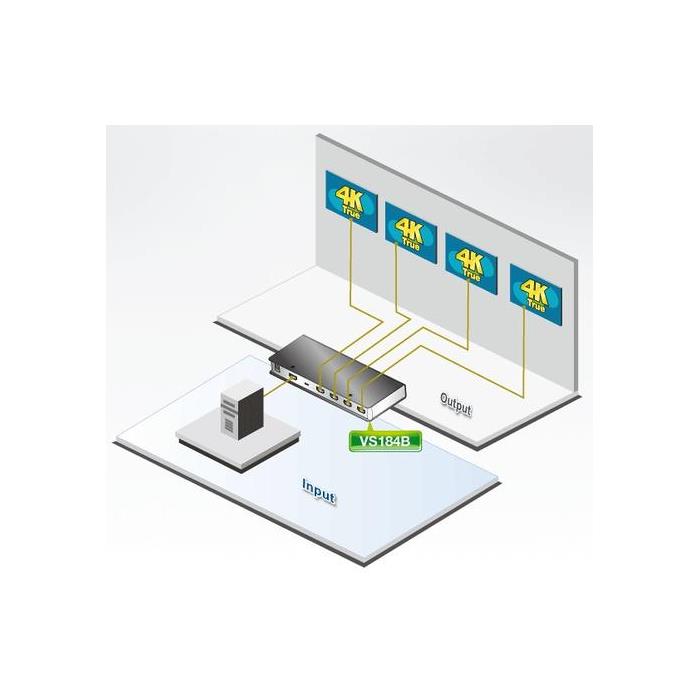

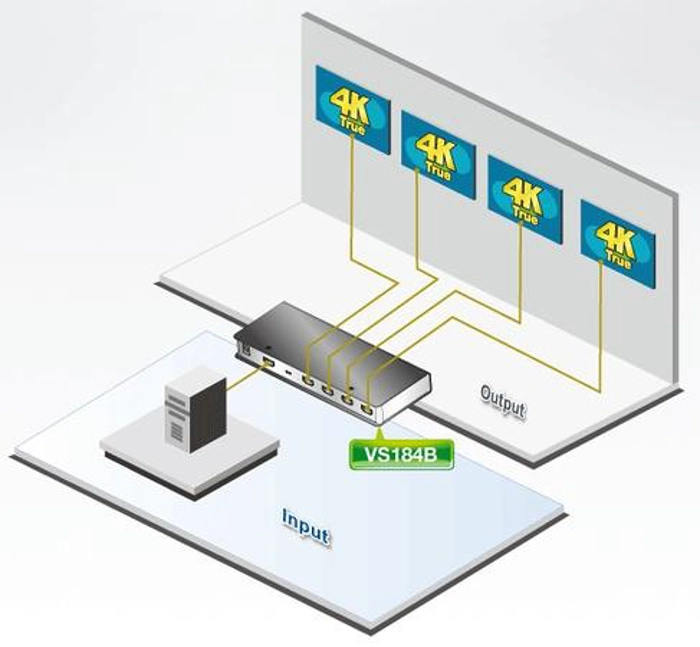

Connects one HDMI source to four HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Supports HDR10+
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Long distance transmission- up to 15 m(1920x1200) / 1.8m (True 4K)*
Max pixel clock rate up to 600 MHz
Max data rate up to 18 Gbps (6 Gbps per lane)
LED indication of power status and source devices
EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
Plug-and-play – No software installation required

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 5m at 4K@60Hz (4:4:4)

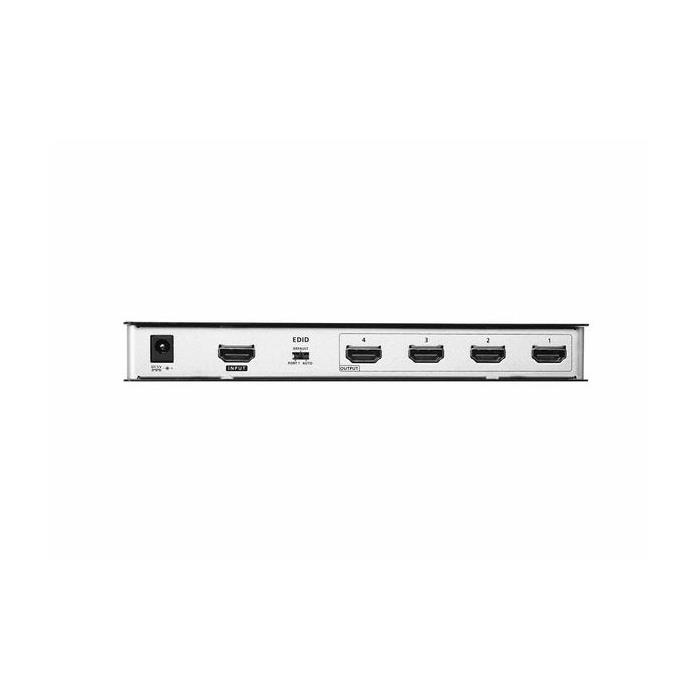

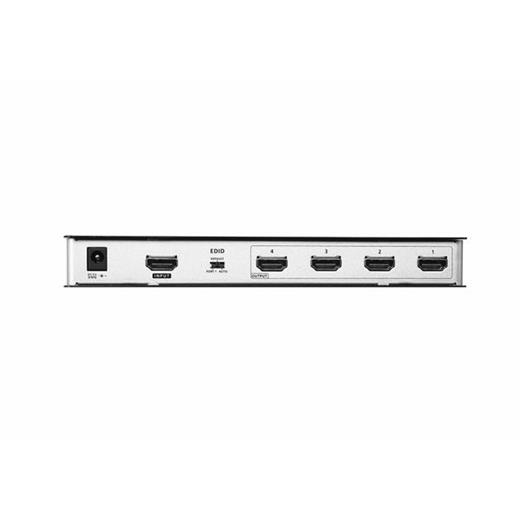

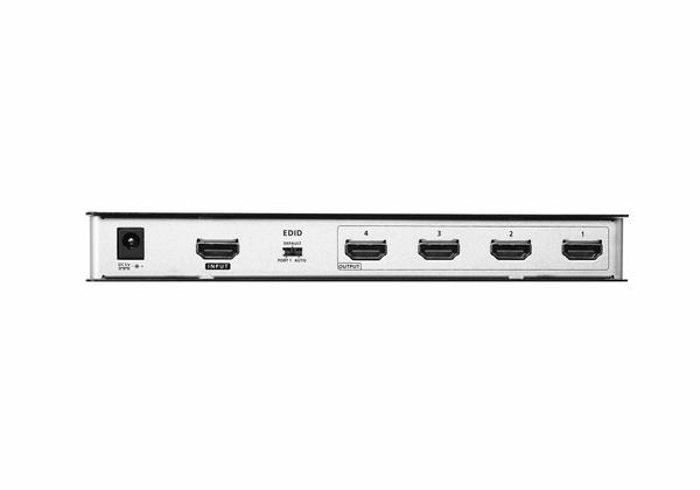

Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 5m at 4K@60Hz (4:4:4)
Video
Max. Data Rate 18Gpbs (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Output 4 x HDMI Type A Female (Black)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:4.84W:23BTU
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.48 kg ( 1.06 lb )
Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)

1 x VS184B 4-Port True 4K HDMI Splitter
1 x Power adapter
1 x HDMI cable
1 x User Instructions
