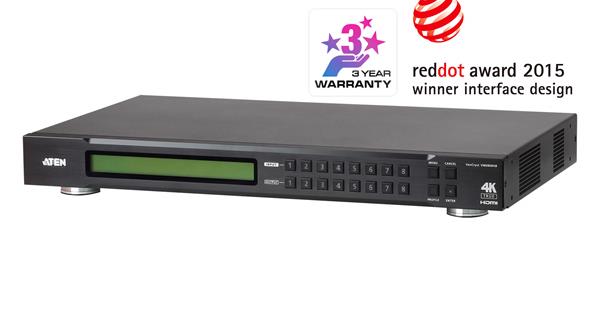

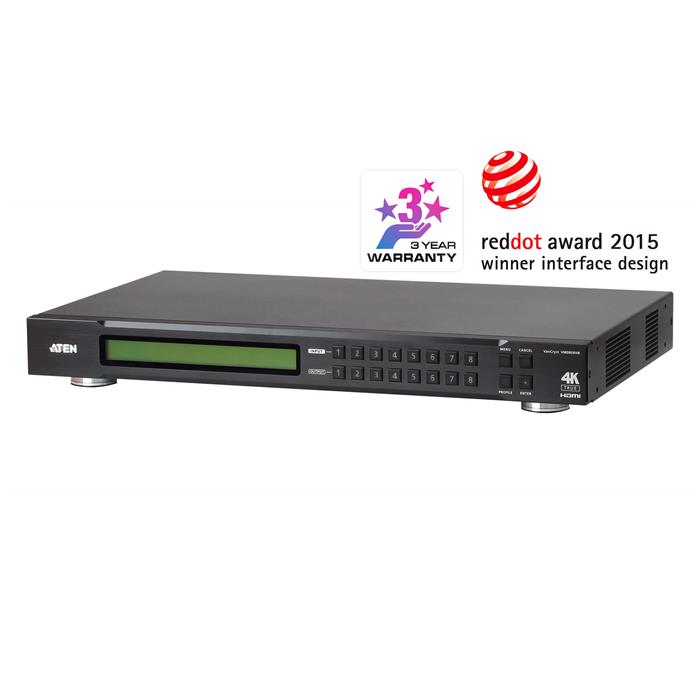

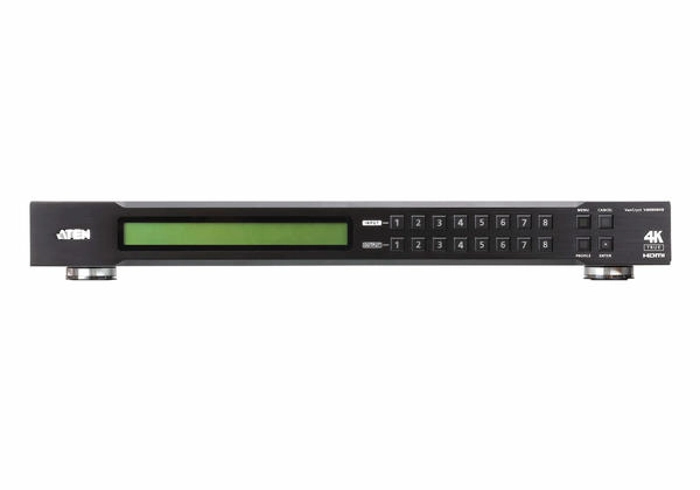

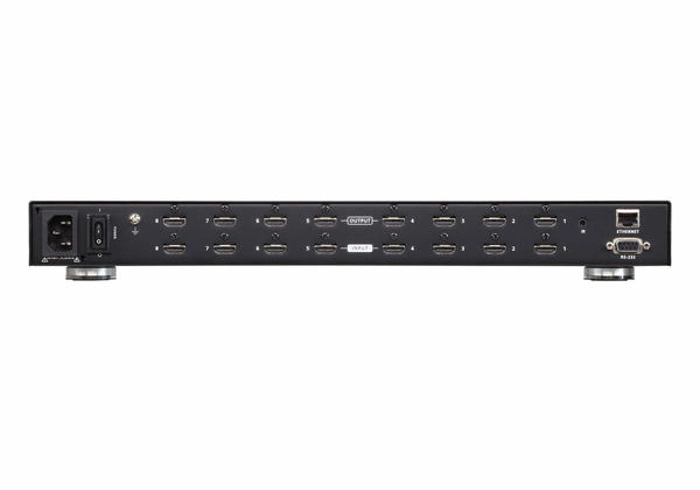

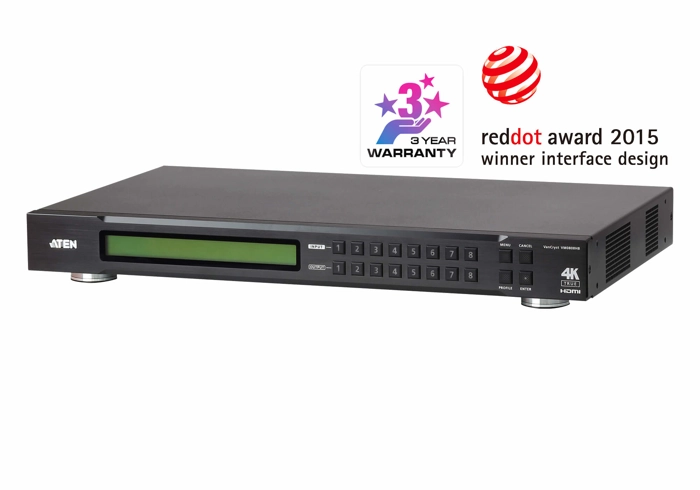

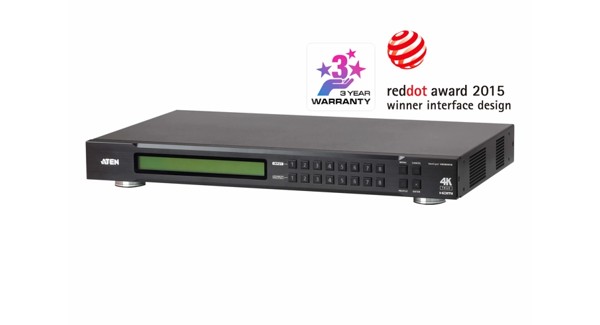

ATEN-VM0808HB 8 x 8 True 4K HDMI Matrix Switch

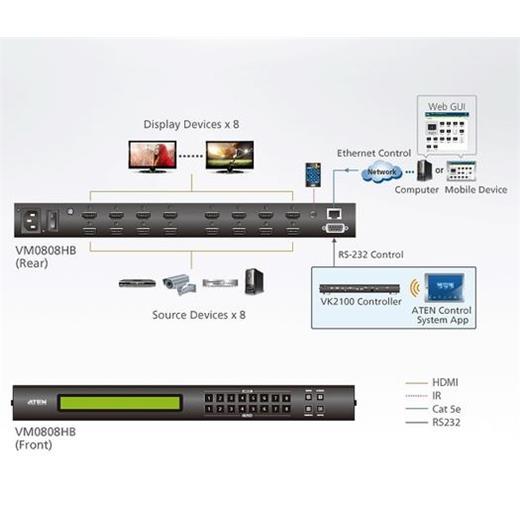

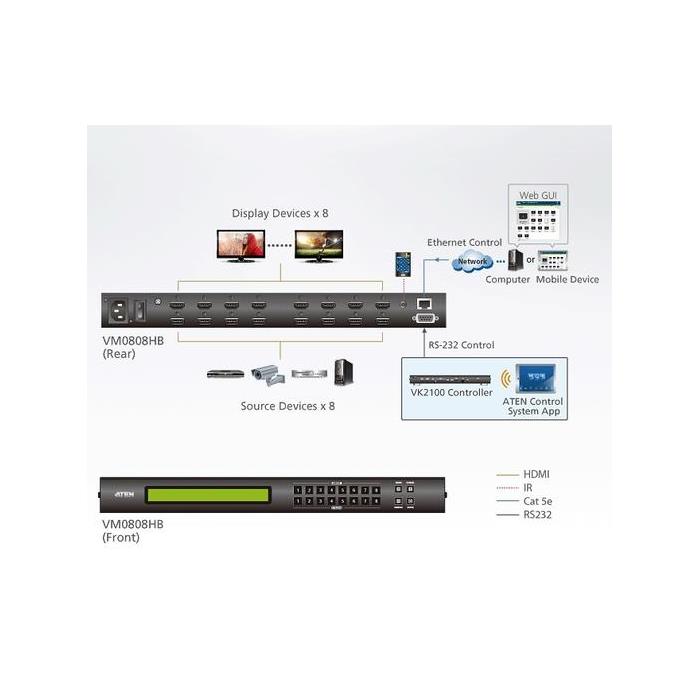

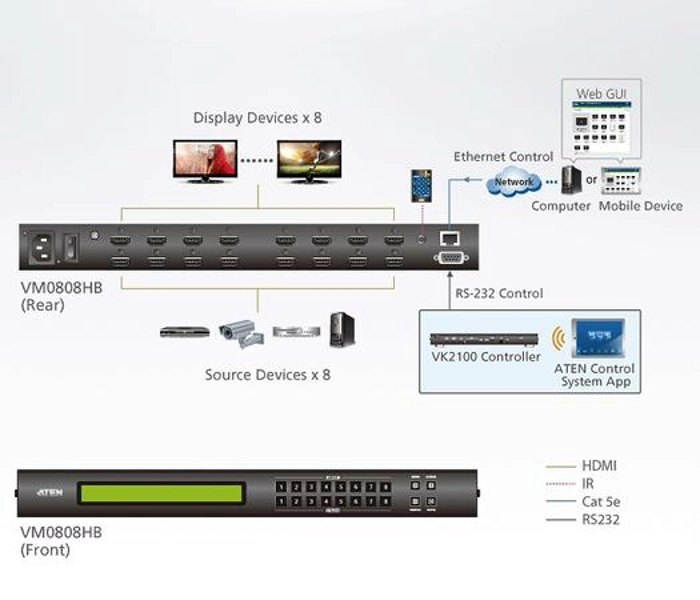

Connects any of 8 HDMI sources to any of 8 HDMI displays Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) Supports10+ Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections View and control via ATEN Control App in a swift and agile way EDID Expert™ – selects optimum settings for smooth power-up, high-quality display and use of the best video resolution across different screens Signaling rates up to 6 Gbits for flawless output Supports Dolby True HD and DTS HD Master audio HDMI (3D, Deep Color, 4K) and 2.2 compatible Supports Consumer Electronics Control (CEC) Power-on Detection – switches to the next powered-on source when one source is powered off ESD protection for HDMI Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections Firmware upgradeable Rack mountable (1U design)
Video Input
Interfaces
8 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
5.0 m / 4K@60Hz (4:4:4)
Video Output
Interfaces
8 x HDMI Type A Female (Black)
Max. Distance
5m / 4K@60Hz (4:4:4) 15m / 1920 x 1200
Impedance
100 ?
Video
Max. Pixel Clock
600 MHz
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate
18 Gbps( 6 Gbps Per Lane)
Compliance
HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Control
RS-232
Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
