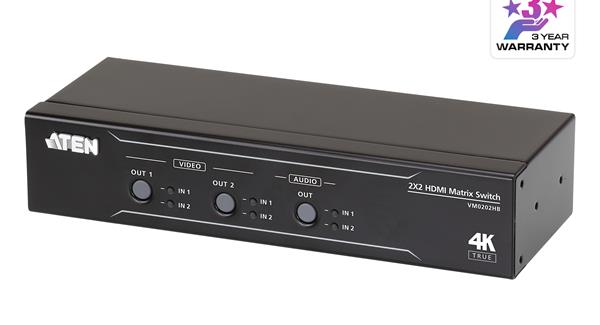

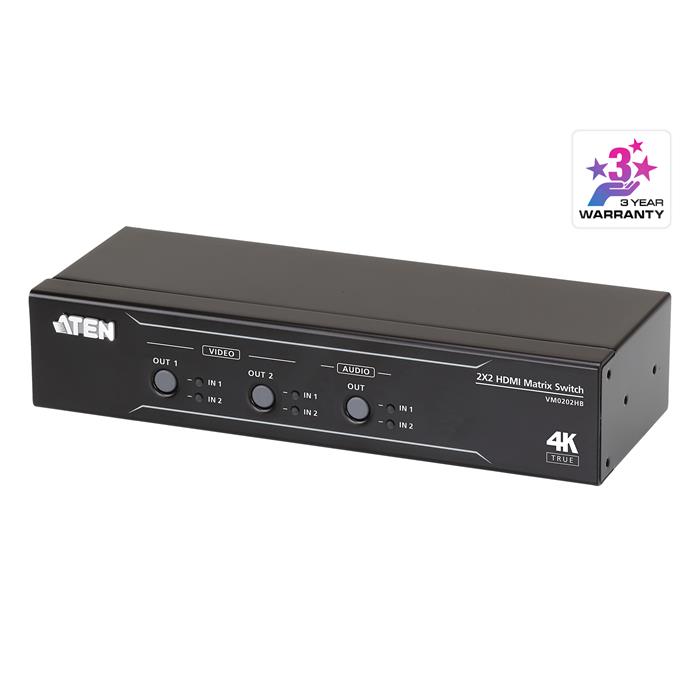

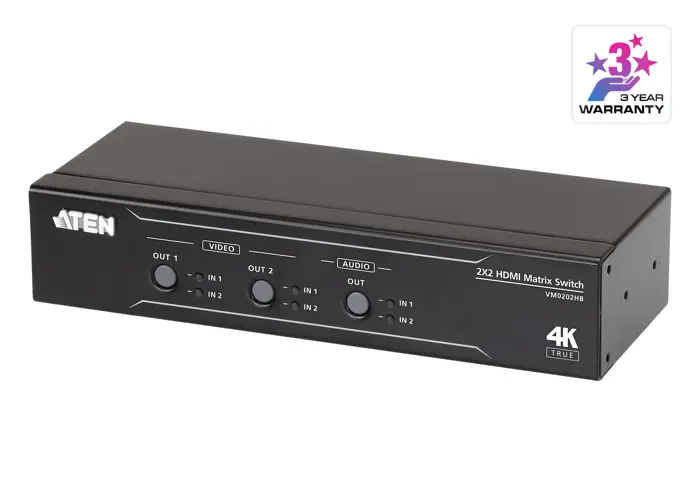

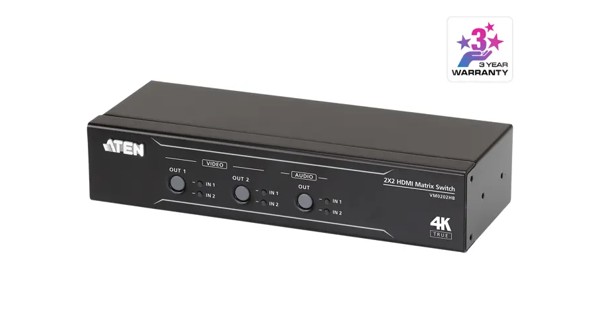

ATEN-VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder

Aten
Stok Kodu : 1722-369-147941
Barkod :

havale ile %4,5 indirim

17.604,86 TL

16.846,76 TL

Kargo Dahil : 17.019,01 TL

tek çekimde %3,7 indirim

17.604,86 TL

16.976,73 TL

Kargo Dahil : 17.150,30 TL

Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ – selects optimum settings for smooth power-up,high-quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
All metal casing
Firmware upgradable
Rack mountable

Video Input
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	5.0 m
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	5.0 m
Video
Max. Data Rate	18.0 Gbps (6.0 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance	Up to 5.0 m
Audio
Output	1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole
Control
USB	1 x Micro USB F/W upgrade
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
EDID Settings	EDID Mode: Default / Port1 / Remix
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5V:2.47W:11BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.60 kg ( 1.32 lb )
Dimensions (L x W x H)	20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.)
