Aten-Ve811R Hdmı Hdbaset Sinyal Uzatma Cihazı 100 Metre Hdmı Hdbaset Receiver (4K@100M) (Hdbaset Class A)

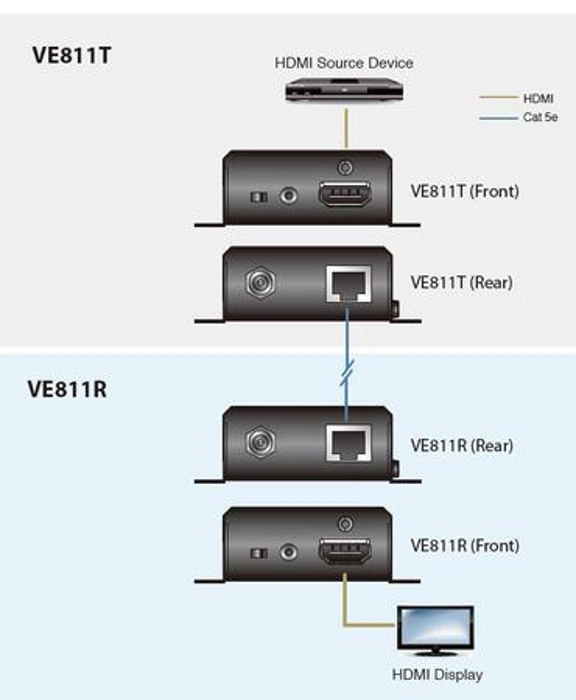

HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep Color, 4K)
HDCP 2.2 compatible
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports wide screen format
Plug and play – no software required
Built- in 8KV/ 15 KV ESD protection
Rack Mountable

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 1.8 m
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input 1 x HDMI Type A Female (Black)
Connectors
Unit To Unit 1 x RJ-45 Female
Firmware Upgrade 1 x Mini Stereo Jack Female (Black)
Power 1 x DC Jack (Black) with locking
Switches
Long Reach Mode Switch 1 x Slide Switch - ON/OFF
Power Consumption DC5V:3.77W:18BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) with bracket 8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket 8.20 x 5.20 x 2.37 cm

1x VE811R HDMI HDBaseT Receiver
1x Power Adapters
1x User Instructions
