Yeni Ürün

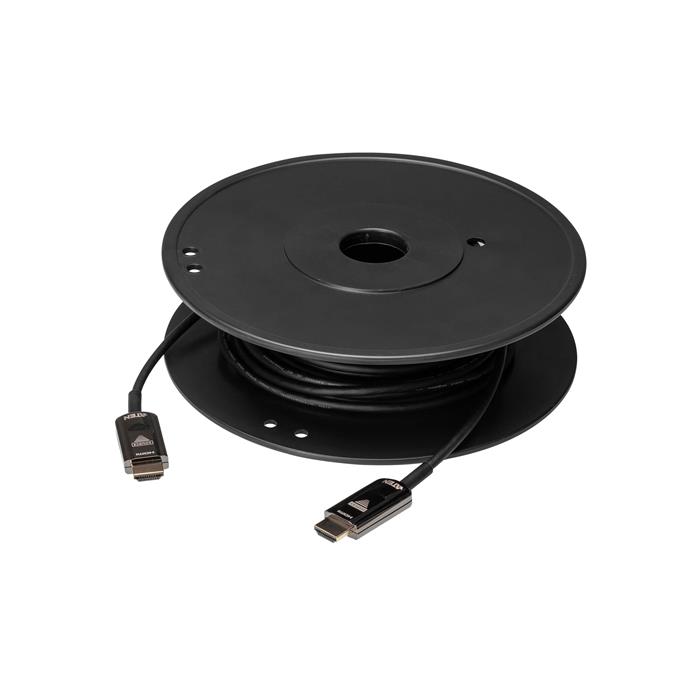

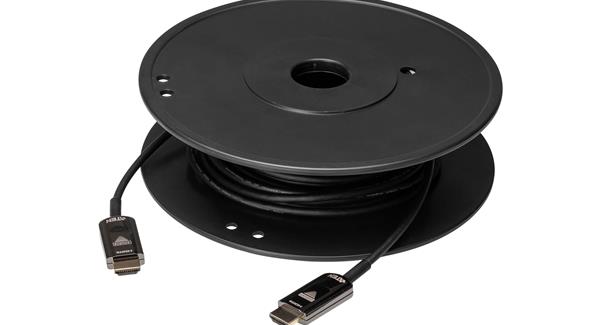

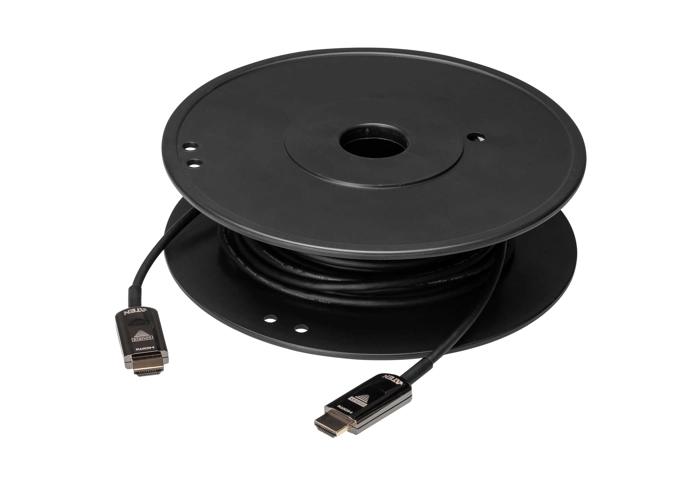

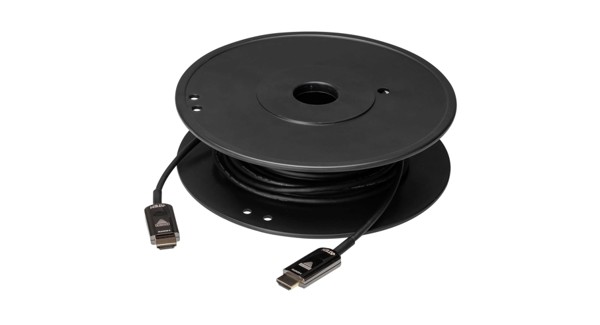

ATEN-VE781010 10M True 4K HDMI Active Optical Cable (True 4K@10m)

Aten Stok Kodu : 106-369-147761

havale ile %4,5 indirim

5.555,07 TL

5.315,86 TL

Kargo Dahil : 5.488,11 TL

tek çekimde %3,7 indirim

5.555,07 TL

5.356,87 TL

Kargo Dahil : 5.530,45 TL

Supports resolution up to (4096 x 2160 @ 60Hz 4:4:4)
HDMI (3D, Deep Color,,, ARC); 2.2 compliant
Extends signals up to 10m
Reduced EMI and RFI for lower noise interference
High data transfer rate of 18 Gbps
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
Plug-and-play

Cable Length	10M / 32.8ft
Cable Type	Hybrid type with optical fiber (OM3) and copper wire
Video Input
Interfaces	1 x HDMI 19-pin Type-A Male
Video Output
Interfaces	1 x HDMI 19-pin Type-A Male
Video
Max. Data Rate	18 Gbps (6 Gbps per Channel)
Max. Pixel Clock	600 MHz (Max.)
Max. Resolutions / Distance	Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 10M Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit
Compliance	HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2
Communication
Signals	TMDS / HDCP 2.2 / EDID / CEC
Audio
Input	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Conductor
Construction	7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um)
Notification	Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE * NO external power required
Certifications
Certifications	Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B
Power Consumption	DC5.0V:0.25W:0.05ABTU
Jacketed
Material	PVC (85P) Color: Black
Environmental
Operating Temperature	0°C to 50°C (32? to 122?)
Storage Temperature	-20°C to 70°C (-4? to 158?)
Humidity	0 - 85% RH, Non-Condensing
Physical Properties
Housing	Connector Case: Zinc Alloy
Weight	0.35 kg ( 0.77 lb )
Cable Outer Dimension	4.5mm (± 0.2mm)
