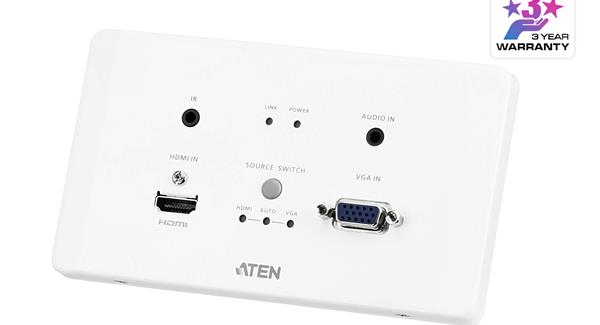

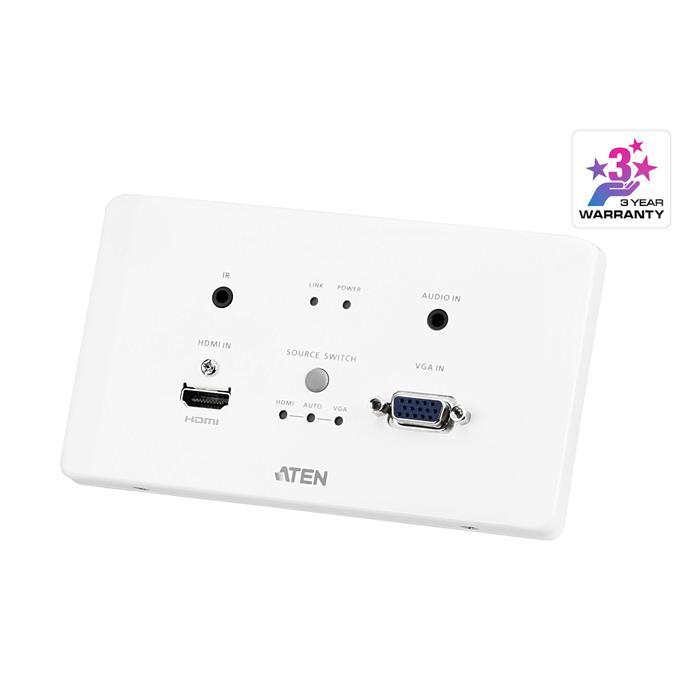

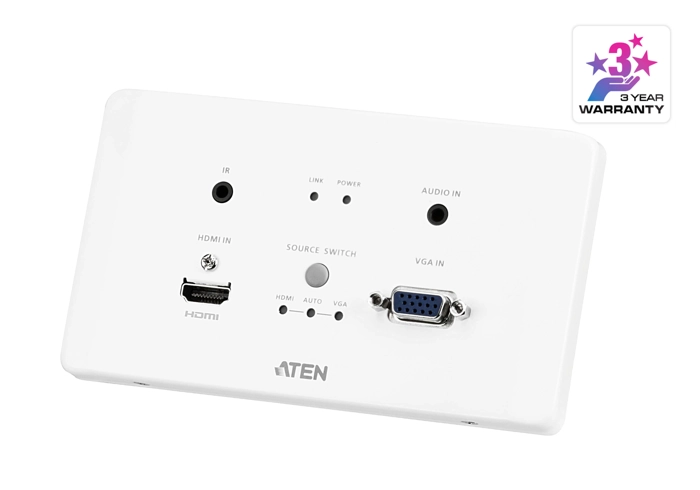

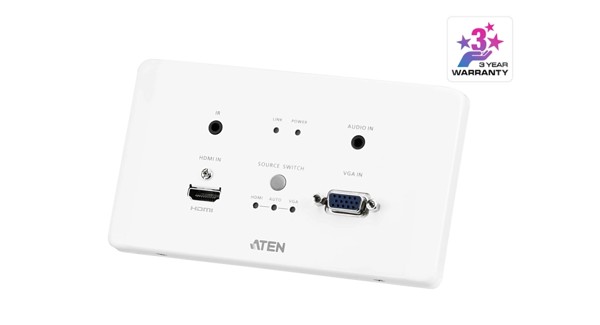

ATEN-VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A) (PoH PD)

Aten
Stok Kodu : 345-369-147701
Barkod :

Bu ürünü en uygun fiyata satın almak için teklif isteyebilirsiniz !

Ürün Açıklaması
Yorumlar
Ödeme Seçenekleri
Geri Bildirim

Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN Cat 6 cable
Superior video quality:
• HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN Cat 6 cable
• VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN Cat 6 cable
HDMI (3D, Deep color, 4K); 2.2 compliant
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
Designed to mount in a two-gang junction box, compatible with EU & MK type
Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source
Functions as a switch or a converter
• A Switch: Connects two sources (HDMI or VGA)
• A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
Supports RS-232 channel transmission or command mode for source switch control
Compatible Receivers – , , , , , , , , , or future ATEN HDBaseT Receivers
Plug-and-play
LED indication of sources and device status
Built- in 8KV / 15 KV ESD protection

Video Input
Interfaces	1 x HDMI Type A Female (Black) 1 x HDB-15 (VGA) Female (Blue)
Impedance	HDMI: 100 ? HDB-15 (VGA): 75 ?
Max. Distance	HDMI: 3 m HDB-15(VGA): 10m
Video
Max. Data Rate	10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x Terminal Block, 3 pole (Green) Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR	1 x Mini Stereo Jack Female (Black)
Switches
Video Input Port Selection	1 x Push Button - HDMI, VGA and AUTO
Long Reach Mode Switch	1 x Slide Switch - ON/OFF
Firmware Upgrade	1 x Slide Switch - ON/OFF
Connectors
Unit To Unit	1 x RJ-45 Female
Power	1 x Terminal Block, 2 pole (Green) or 1 x RJ-45 Female (POH)
Power Consumption	DC5V:3.14W:15BTU/h POH:3.93W:18BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.30 kg ( 0.66 lb )
Dimensions (L x W x H)	5.00 x 10.80 x 5.17 cm (1.97 x 4.25 x 2.04 in.)
Faceplate Dimensions (L x W x H)	8.60 x 15.10 x 1.35 cm (3.39 x 5.94 x 0.53 in.)

Package Contents

1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH
1x 3 Pin RS-232 Terminal Block
1x 2 Pin Power Terminal Block
1x Mounting Kit
1x Power Adapter
1x User Instructions
