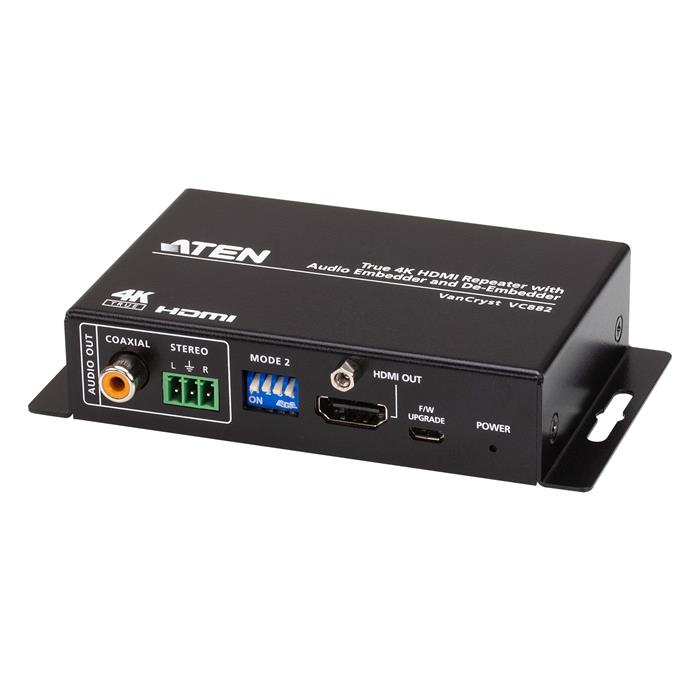

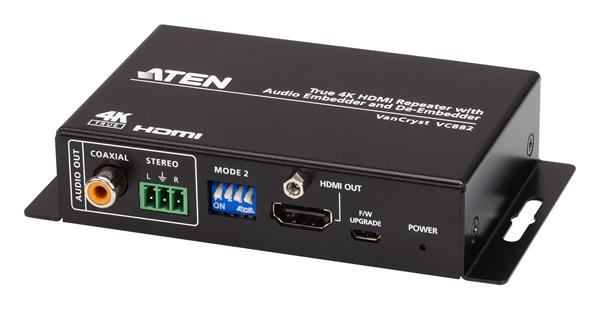

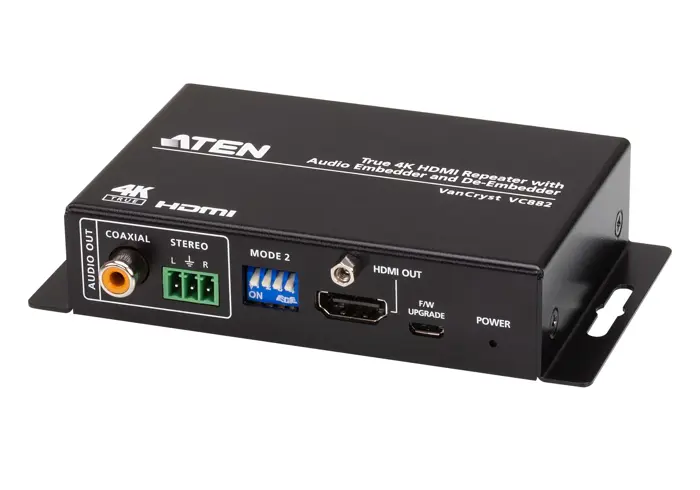

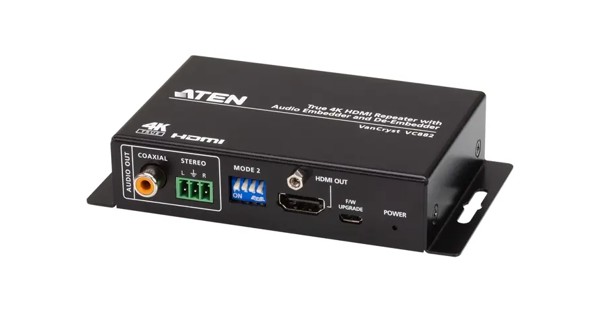

ATEN-VC882 True 4K HDMI Repeater with Audio Embedder and De-Embedder

ATEN
Stok Kodu : 345-369-147915
Barkod :

Distribütör garantili orijinal ATEN Sinyal Çeviriciler ürünleri için en uygun fiyat

Embeds audio to the HDMI output or de-embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
HDMI (3D, Deep Color,); 2.2 compliant
True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports / formats –10,10+, Dolby Vision and Hybrid Log-Gamma (HLG)
Supports HDMI audio formats – LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1
Compact, portable metal enclosure designed for HDMI Lock-pro
Firmware upgradable

LEDs
Power	LED (blue) x1
Reset Button	Push button x1 (to activate mode configuration)
Switches
Mode Selection	MODE 1 (2-PIN) PIN#1 (Enable / Disable Audio Embedder Function) PIN#2 (Audio embed from Coaxial / Stereo) MODE 2 (4-PIN) PIN#1 (Enable / Disable Audio Extractor Function) PIN#2 (Enable / Disable ARC function) PIN#3&4 (EDID mode selection: Bypass, 5.1 CH, 2 CH, Learn)
Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	5 meters
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	5 meters
Video
Max. Data Rate	18 Gps
Max. Pixel Clock	600 MHz
Compliance	HDMI 2.0 (3D, Deep Color) HDCP 2.2
Max. Resolution	4096 X 2160@60Hz(4:4:4) 8 bit
Audio
Output	Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0
Input	Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0
Connectors
Power	1 x DC Jack, 5V 1A, Lockable
Firmware Upgrade	1 x Micro USB
Power Consumption	DC5V:2.905W:9.92BTU
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.24 kg ( 0.53 lb )
Dimensions (L x W x H)	12.22 x 8.22 x 2.50 cm (4.81 x 3.24 x 0.98 in.)
