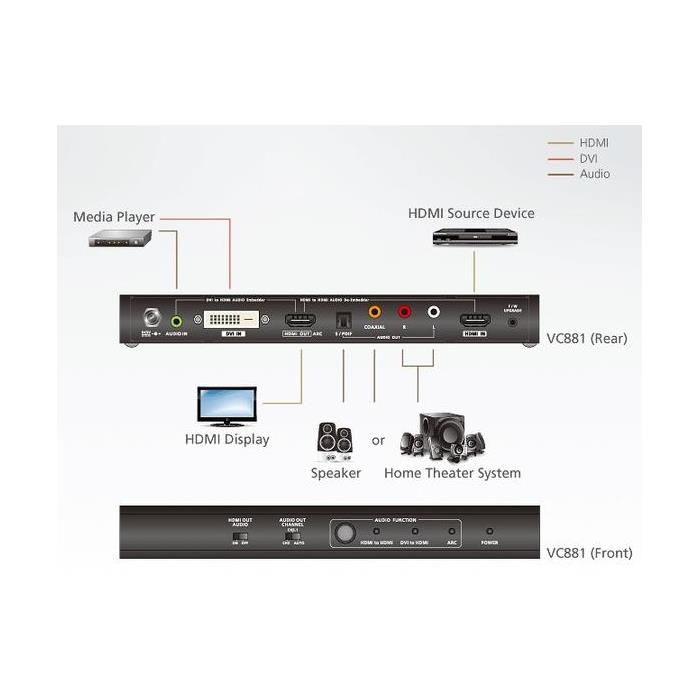

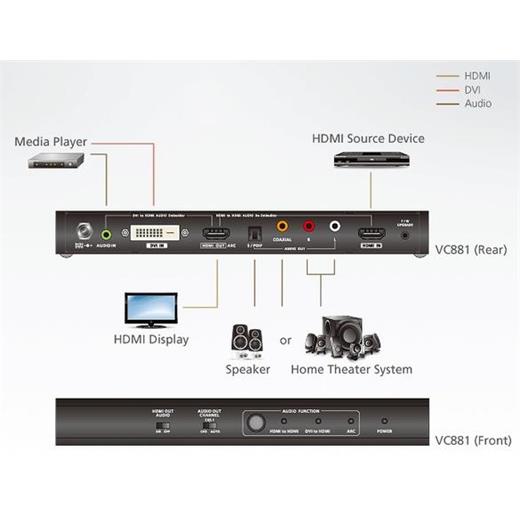

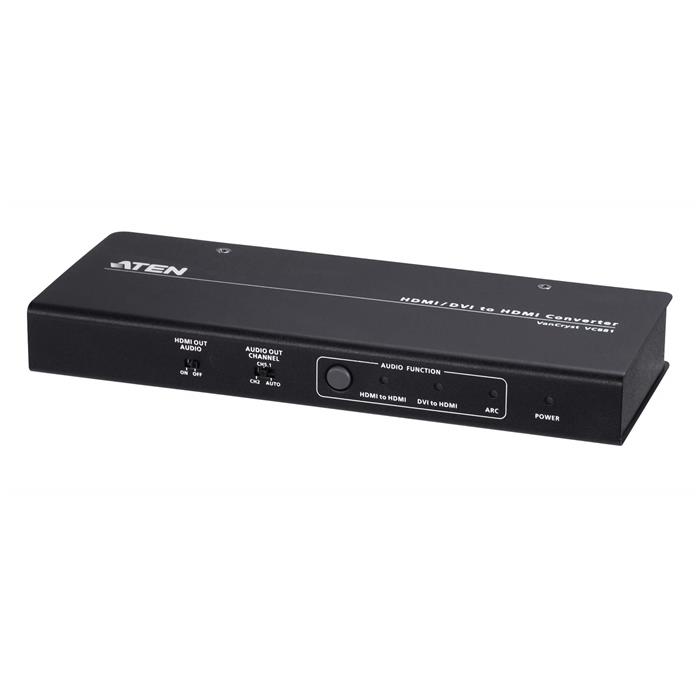

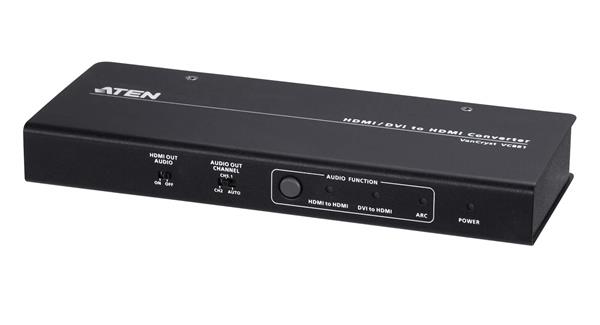

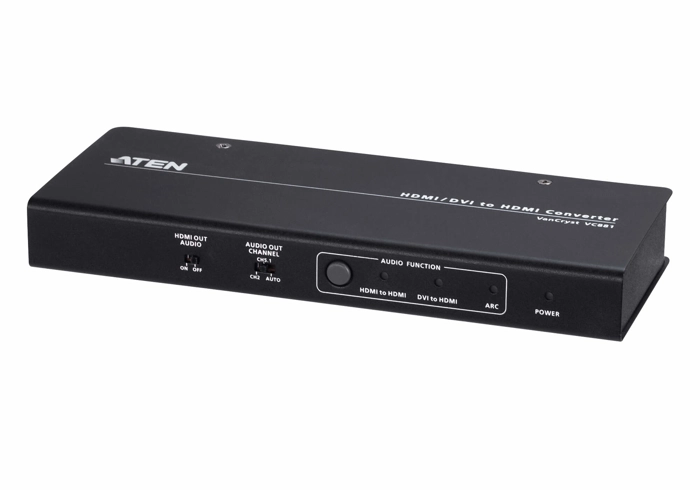

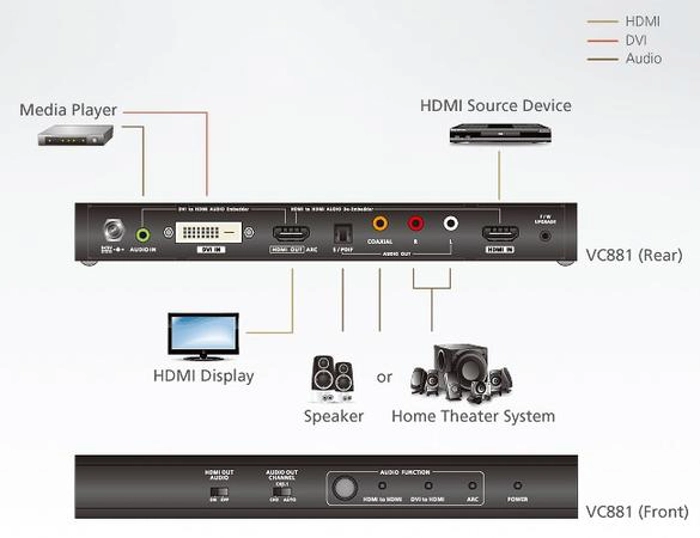

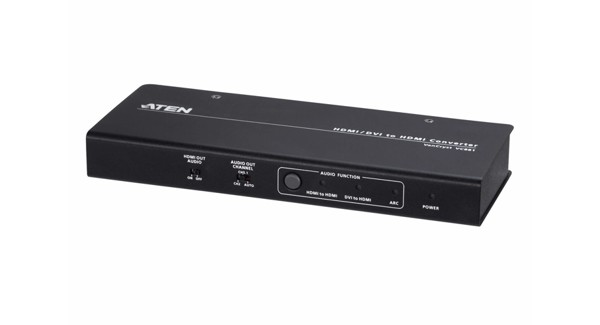

Aten-Vc881 4K Hdmı/Dvı To Hdmı Converter With Audio De-Embedder
Easy mode selection via a pushbutton • HDMI to HDMI • DVI to HDMI • Audio Return Channel (ARC)
HDMI 1.4 (3D, Deep Color, 4K); 1.4 compliant
Superior video quality: • HDMI: up to 4K (3840 x 2160 @30Hz) • DVI: up to 1920 x 1200
HDMI audio stream can be extracted and converts it to S/PDIF, Coaxial, or a RCA Stereo Audio signal
LED indication of power status
Firmware upgradable
All metal casing
Switches
Mode Selection
Side Switch x 1 (HDMI Audio Out - ON/OFF) Side Switch x 1 (Audio Out Channel - AUTO/CH 5.1/CH 2) Push Button x 1 (Audio Function Selection) 1. HDMI to HDMI 2. DVI to HDMI 3. ARC(Audio Return Channel)

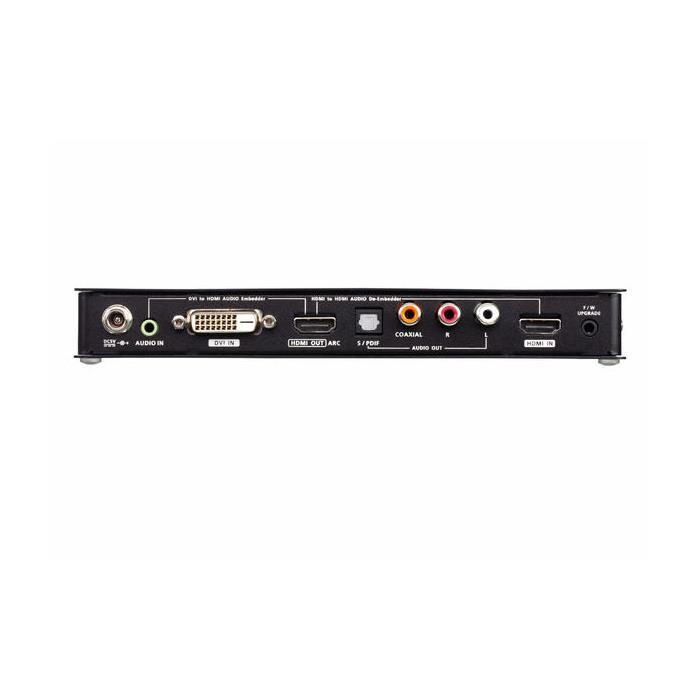

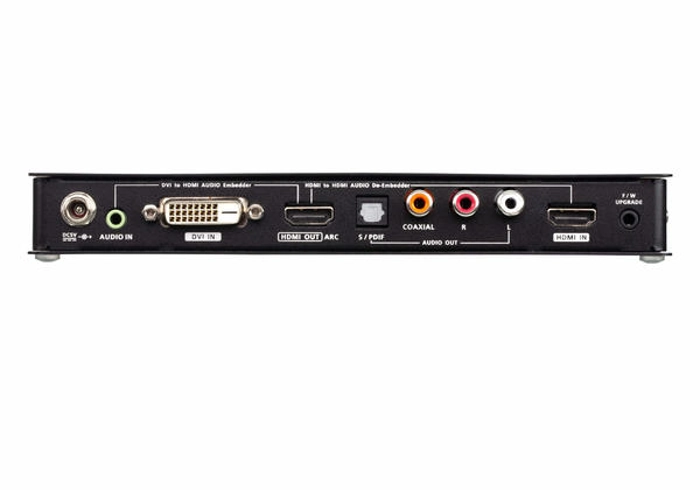

Video Input
Interfaces
1 x HDMI Type A Female (Black) 1 x DVI-D Female (White)
Impedance
100 ?
Max. Distance
HDMI: 3M DVI: 1.8M
Video Output
Interfaces
1 x HDMI Type A Female (Black) with ARC
Impedance
100 ?
Max. Distance
3M
Video
Max. Data Rate
10.2 Gps (3.4 Gbps Per Lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI 1.4 (3D, Deep Color) HDCP 1.4 Compatible
Max. Resolution
HDMI 3840 X 2160@30HZ DVI 1920 x 1200
Audio
Output
Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA female (Orange) Stereo Audio: 2 x RCA female (White / Red)
Input
Stereo Audio: 1 x 3.5mm jack (Green)
Connectors
Power
1 x DC Jack, 5V, Lockable
Firmware Upgrade
1 x 3.5mm jack (FW upgrade)
Power Consumption
DC5V:1.767W:8BTU
Environmental
Operating Temperature
0 - 40 ºC
Storage Temperature
-20 - 60 ºC
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.47 kg ( 1.04 lb )
Dimensions (L x W x H)
20.20 x 8.49 x 2.50 cm (7.95 x 3.34 x 0.98 in.)
Package Contents
1x VC881 4K HDMI/DVI to HDMI Converter with Audio De-embedder
