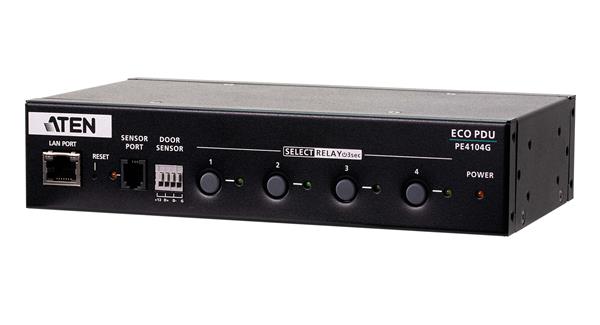

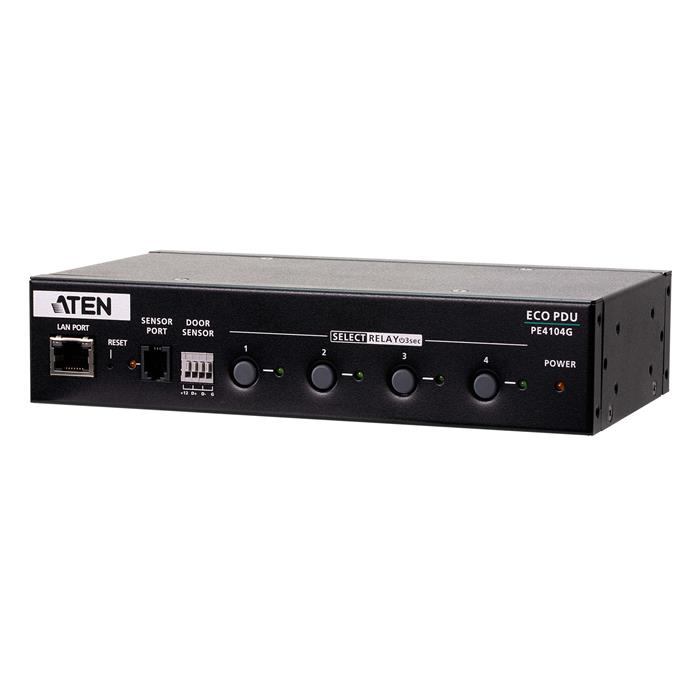

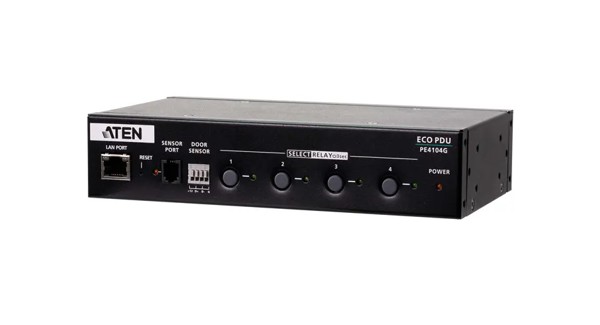

ATEN-PE4104G 4-Outlet IP Control Box

ATEN
Stok Kodu : 1398-369-147754
Barkod :

Distribütör garantili orijinal ATEN Güç/Bağlantı Ürünleri ürünleri için en uygun fiyat

Power Distribution
- Space saving slim form factor
- IEC power outlet
- Separates power for the units own power and its power outlets – user interface is still accessible even when an overload condition trips the device’s circuit breaker

- Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)
- Works with web-based software

Operation
- Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
- Easy setup and operation via a browser-based user interface

Security
- Two-level password security
- Strong security features include password protection and advanced encryption technologies – TLS1.2
- Remote authentication support: RADIUS

Electrical
Nominal Input Voltage	100 – 240 VAC
Maximum Input Current	10A Max
Input Frequency	50-60 Hz
Input Connection	IEC C14
Input Power	2400VA(Max)
Outlet Type	(4) IEC 320 C13
Nominal Output Voltage	100 – 240 VAC
Maximum Output Current (Outlet)	10A(Max)
Maximum Output Current (Bank)	10A(Max)
Maximum Output Current (Total)	10A(Max)
Breakers	Yes(UL1077)
Metering	No
Outlet Switching	Yes
Power Consumption	AC110V:3.1W:20BTU AC220V:3.5W:22BTU
Physical Properties
Dimensions(W x D x H)	44115200mm
Weight	0.90 kg ( 1.98 lb )
Power Cord Length	3m
Environmental
Temperature (Operating / Storage)	0 – 50? / -20 – 60?
Humidity (Operating & Storage)	0 – 80% RH, Non-Condensing
Compliance
EMC Verification	CE-EMC
Safety Verification	CE-LVD
