Network Standard
IEEE 802.11 b/g/n
Interface
PCI Express
Antenna
2 x R SMA Antenna
Operating Frequency
2.4GHz
Operation Channel
11 for N. America, 14 Japan, 13 Europe (ETSI)
Data Rate
802.11 b/g/n : downlink up to 300Mbps, uplink up to 300Mbps(20/40MHz)
Output Power
b mode : 15 ~19 dBm
g mode : 13 ~17 dBm
n mode : 12 ~16 dBm
Modulation
CCK, DQPSK, DBPSK, OFDM
Management
Software AP
Utilities
Wireless setting, Site survey, WPS Wizard
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support
Certificates
CE, FCC, C-Tick, IC
Dimensions
120.5 x 21.6 x 22 mm (WxDxH)
Weight
62.6 g (Device Only)
Environmental
Operating Temperature: 0 °C to 45 °C (32 °F to 104 ºF)
Storage Temperature: -20 ° to 65 ° C (-4 °F to 149 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)
OS Support
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Linux Kernel 2.6 (Support Ubuntu only)

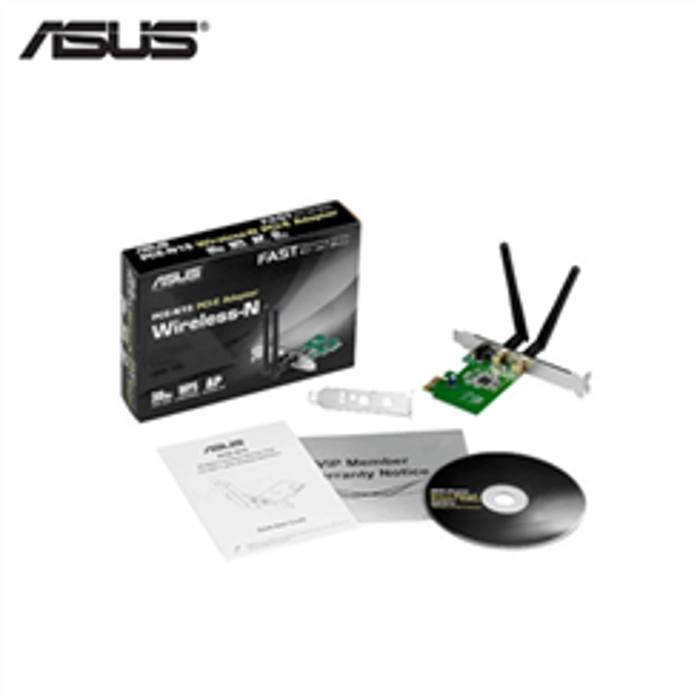

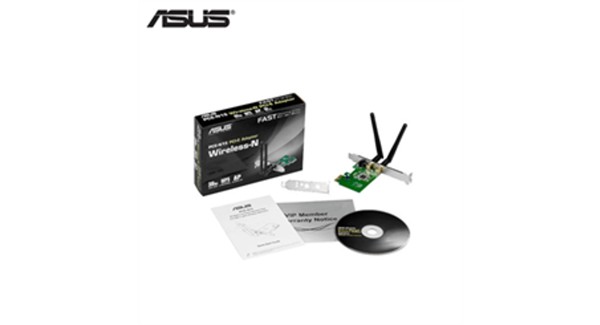

Package Content
Support CD
Warranty card
Low Profile Bracket
Dipole Antenna x 2
