Benefits

Low cost solution ideal for density optimized servers requiring direct connectivity to up to 24 SAS or SATA HDDs and SSD.

Supports 12 Gbps data rates and is backward compatible to 6 Gbps.



Key Differentiators

• 36 ports (28 internal, 8 external) in low-profile MD2 form factor

• Enables both internal and external connectivity

• Backwards compatible to 6 Gbps for legacy 6G SAS or SATA devices

• Complete portfolio of mini-SAS HD cables available



Customer Needs

High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs;

low-profile form factor.



Management Utilities

Microsemi Adaptec maxView Storage Manager



Data Transfer Rate

12 Gbps per port

6 Gbps per port



Form Factor

MD2 – Low Profile



Package Contents

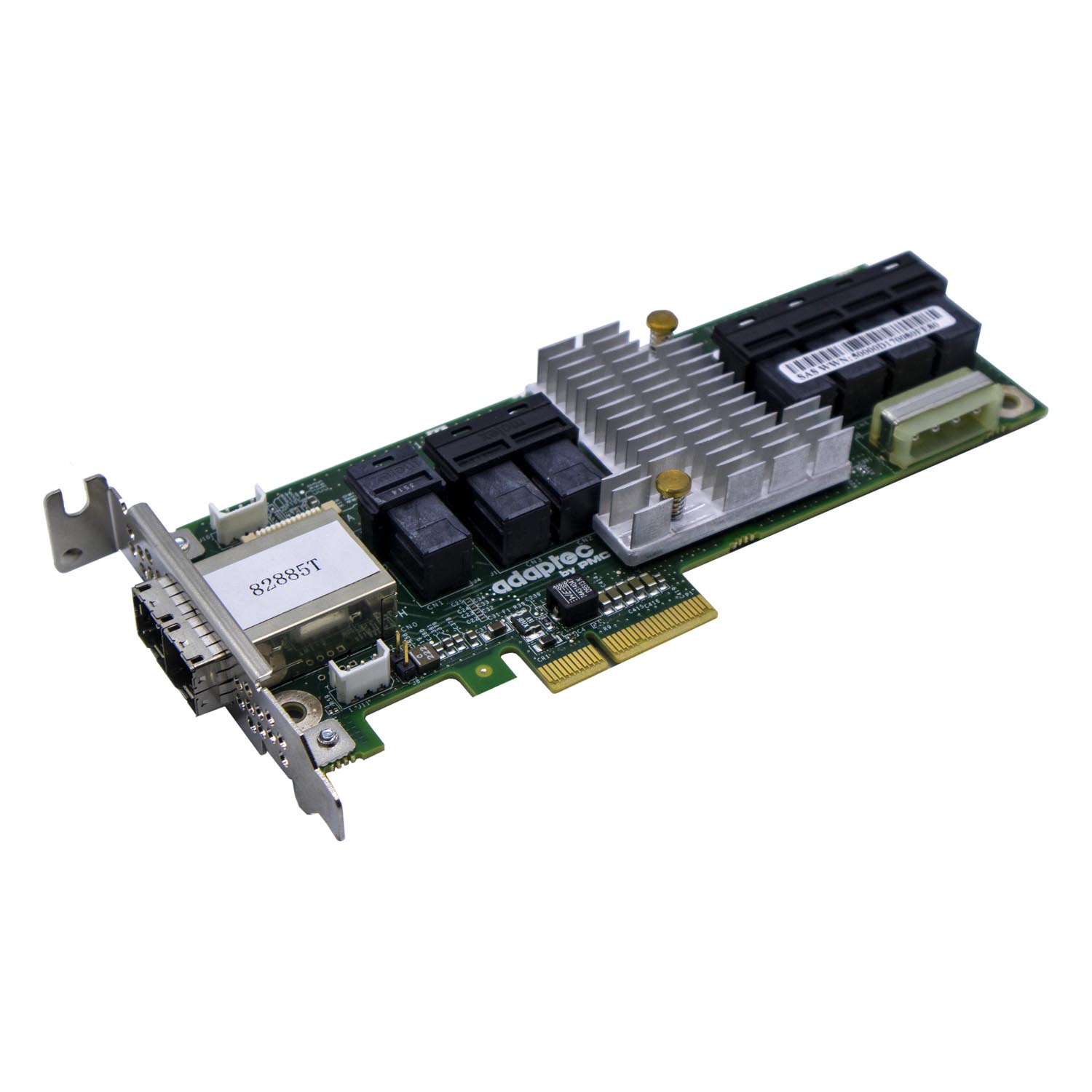

Adaptec SAS Exander 82885T Card



Physical Size

64mm x 167mm



Operating Temperature
0°C to 55°C* (with 200 LFM airflow)

Note: Please install this card only into server or PC chassis with recommended airflow (200 LFM). For maximum heat sink efficiency, the air should bypass the card horizontally.

Operating Voltage?

1.34A @ 12 VDC



Regulatory Certification

CE, FCC, UL, C-tick, VCCI, KCC, CNS



Environmental Compliance

RoHS



Mean Time Before Failure (MTBF)

1,000,000 hours at 40°C
