Merlion Mini NF9B Cedar 1.86 2GB-32SSD (2Seri/2VGA/2Lan)
İşlemci
INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)
Anakart
IPC Mini-ITX NF9B-2550 Anakart (17cm x 17cm)
Bellek
2Gb DDR3 1333MHz so-dimm ram ( maksimum 4 gb destekler )
Sabit disk
32Gb Sata2 SSD Harddisk ( 2.5" )
Ses
Realtek ALC662 6-CH HD Audio CODEC
Ethernet
( 2 tane ) RTL8111EVL PCI-E Gigabit LAN
Yazılım
Linux

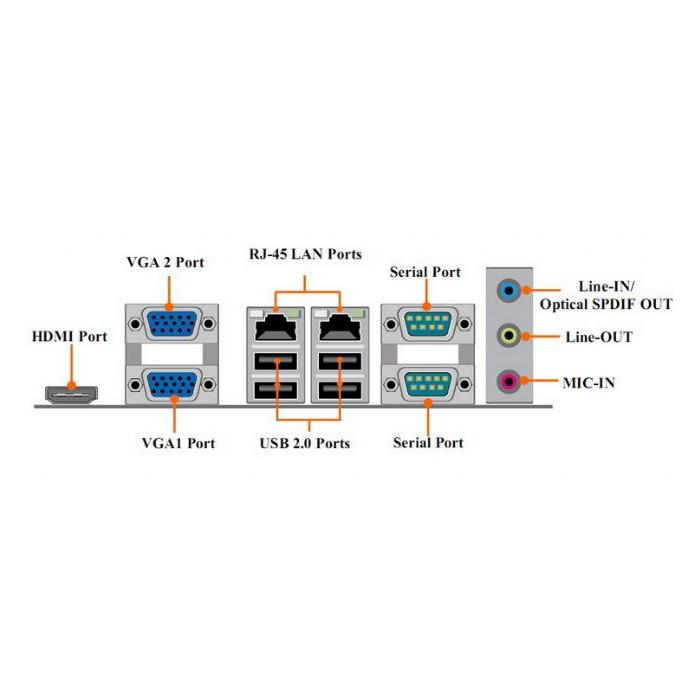

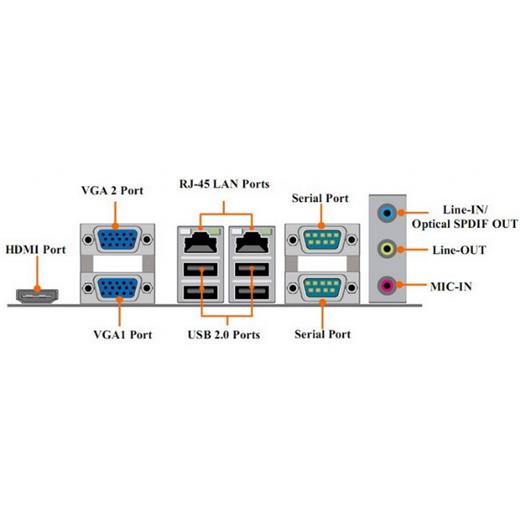

Arka Panel
4 * USB 2.0/1.1 ports
2 * RJ-45 port
2 * COM port
2 * VGA port
1 * HDMI Port
1 * Audio port (Line-in, MIC and Line-out)
Dahili Bağlantılar
2 * USB 2.0/1.1 headers for 3 USB 2.0 ports
1 * Parallel header
1 * PS2/KB header
1 * GPIO header & 1 Parallel headers
4 * COM headers(COM6 for RS232/422/485)
Güç
Harici AC-DC 80 Watt
Ağırlık
1,5 kg
Boyut
Uzunluk:25.9cm X Genişlik:18.6cm X Kalınlık:6cm
Garanti
24 ay
