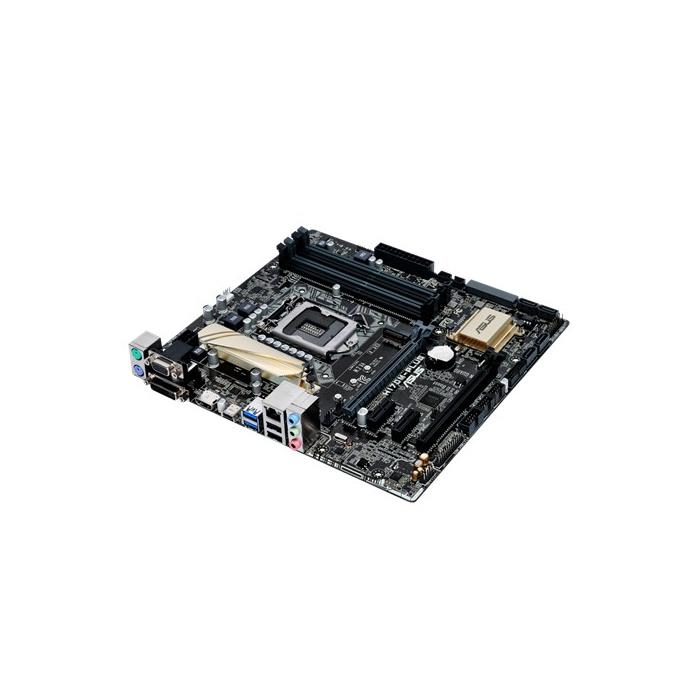

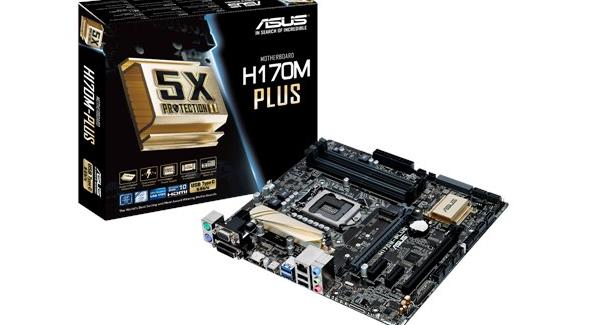

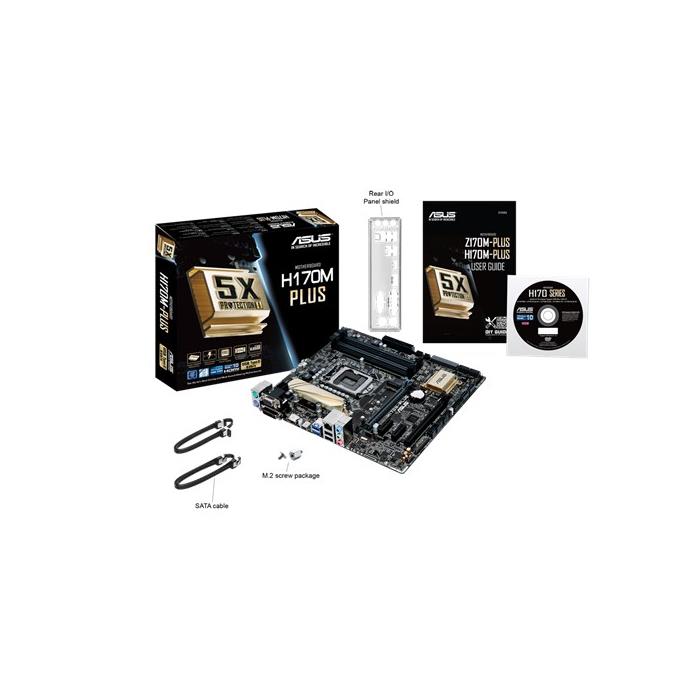

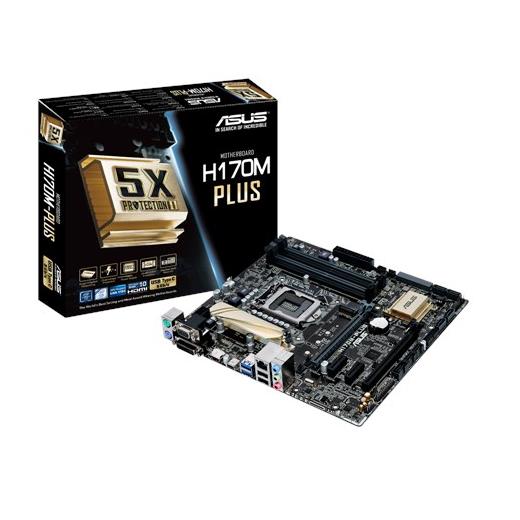

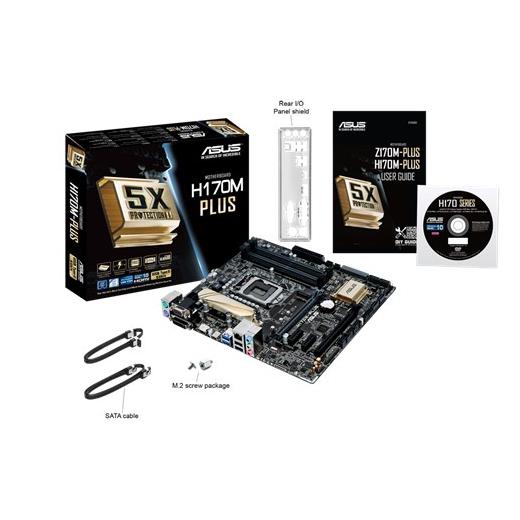

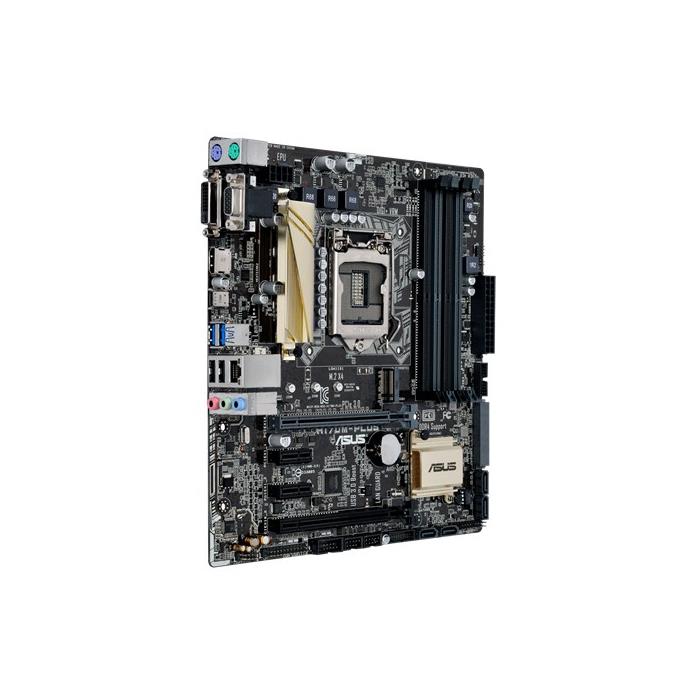

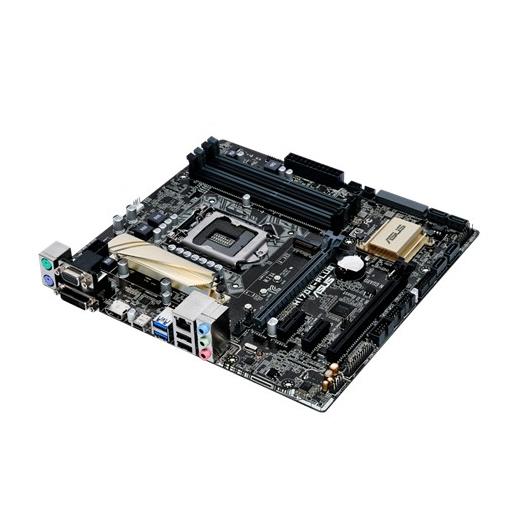

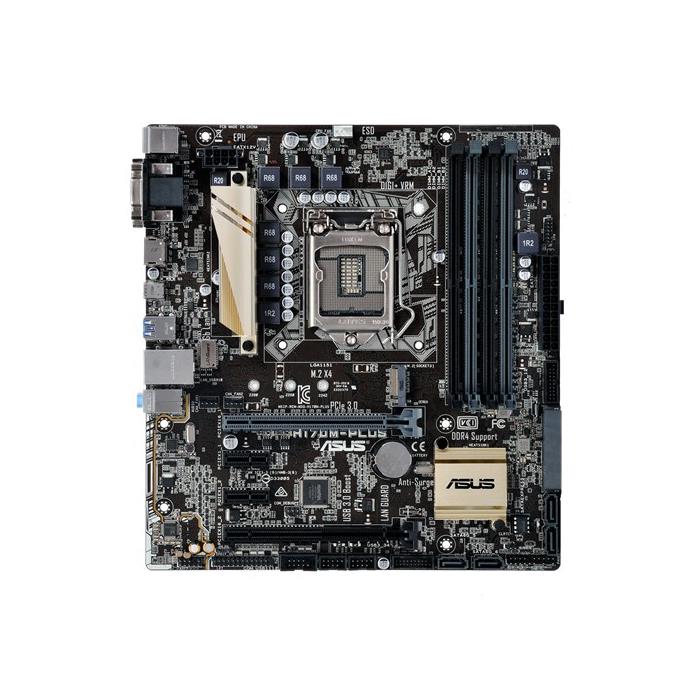

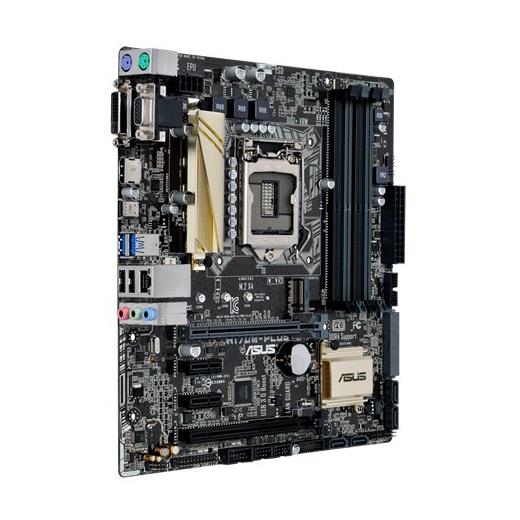

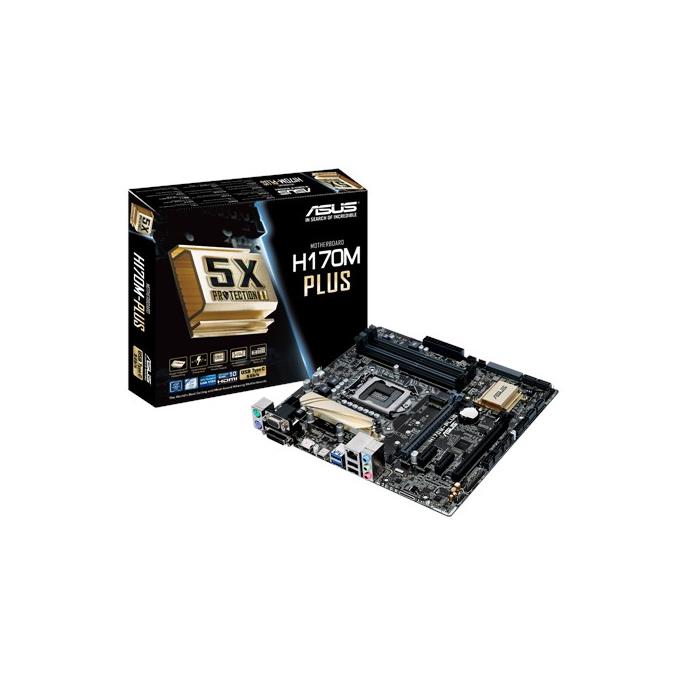

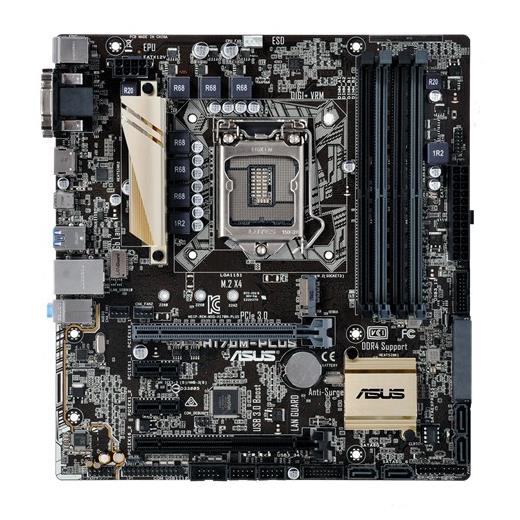

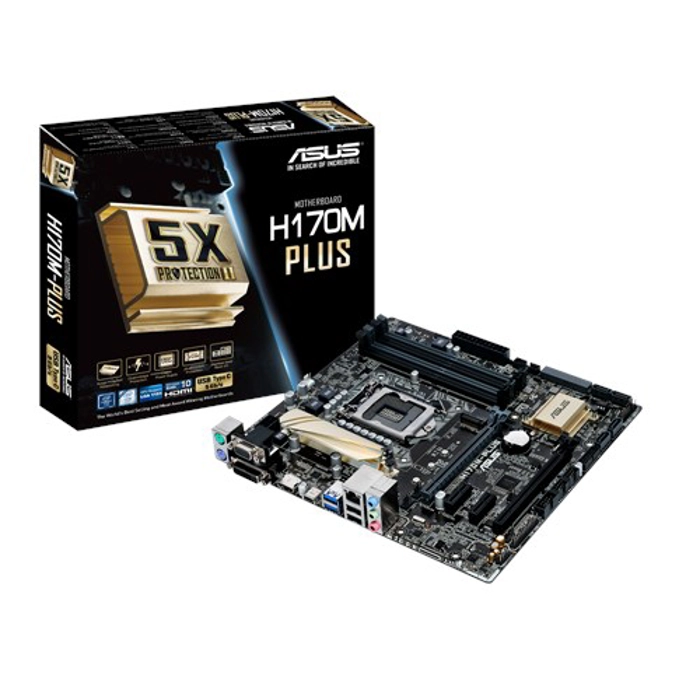

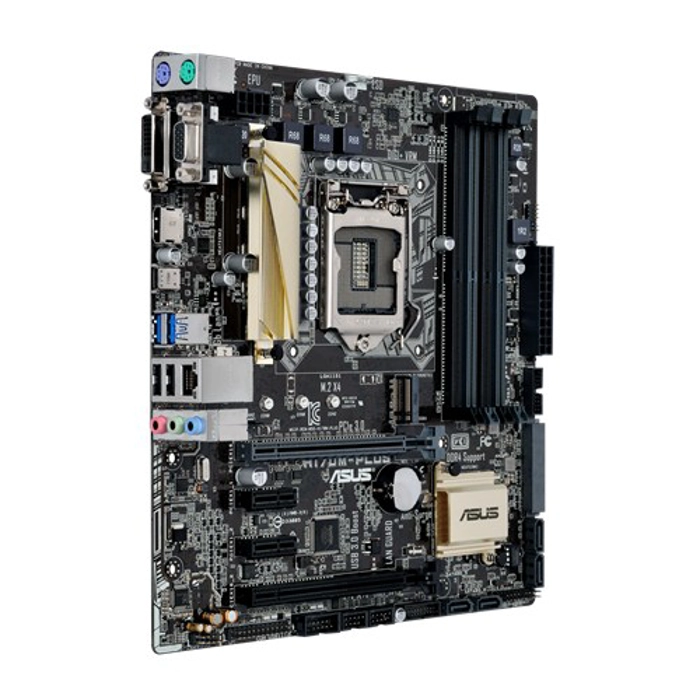

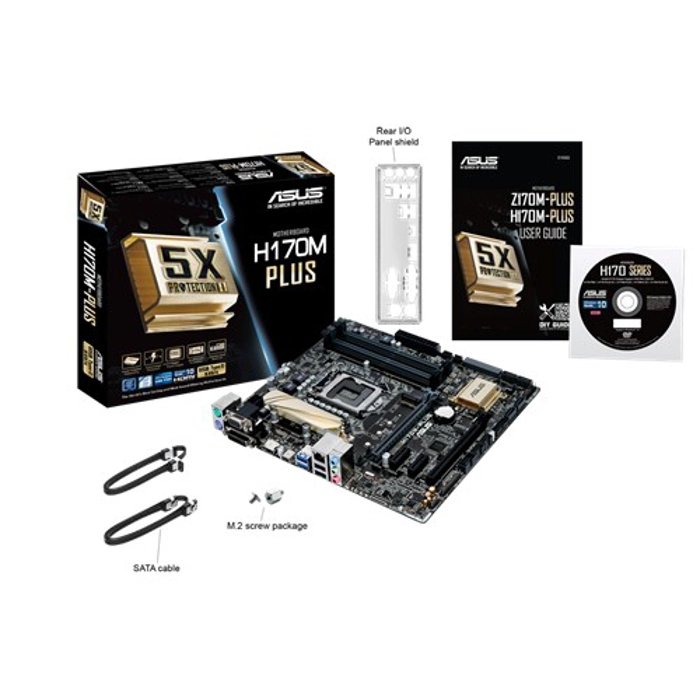

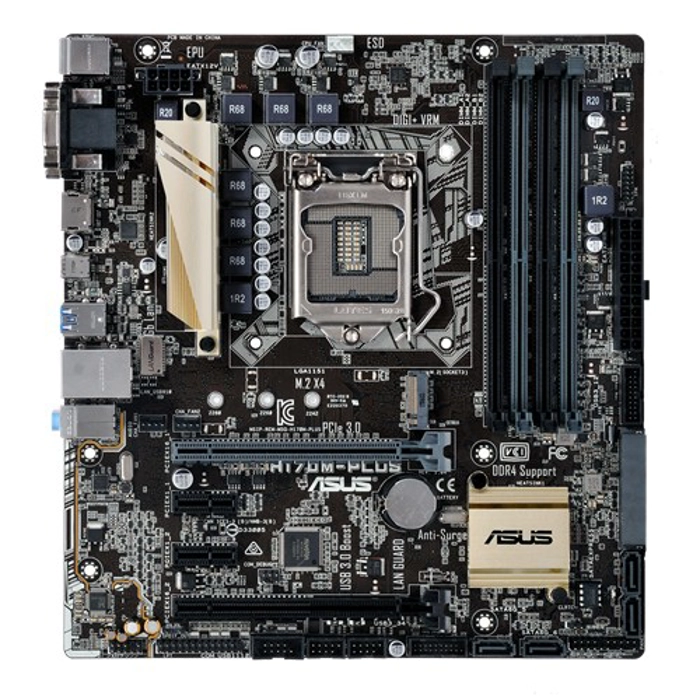

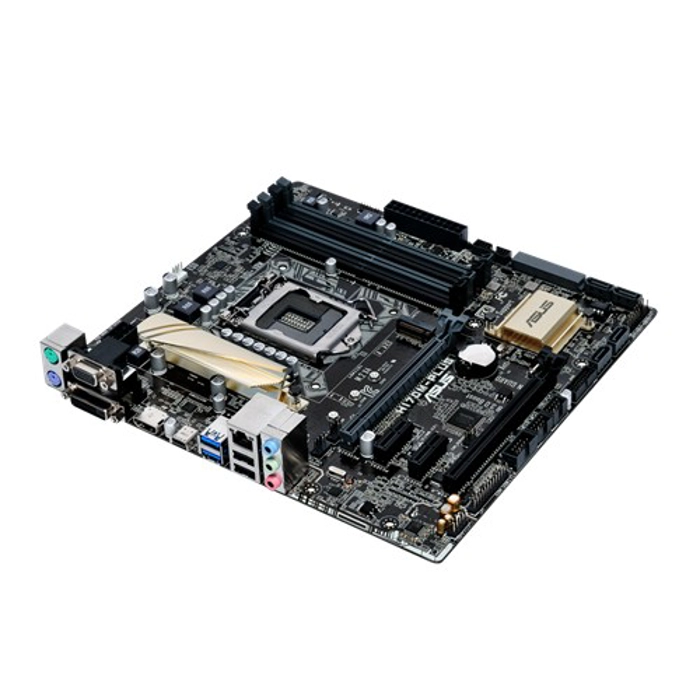

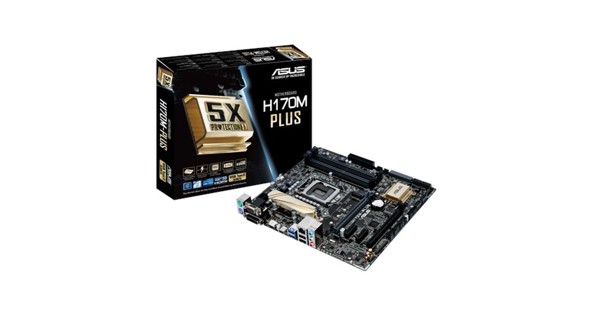

Asus H170M-Plus DDR4 Vga Dvi Usb3.0 1151pin

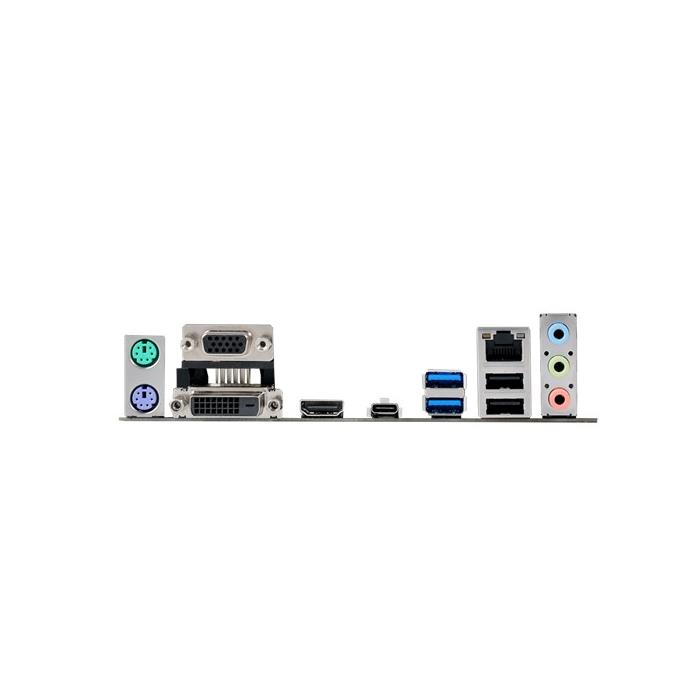

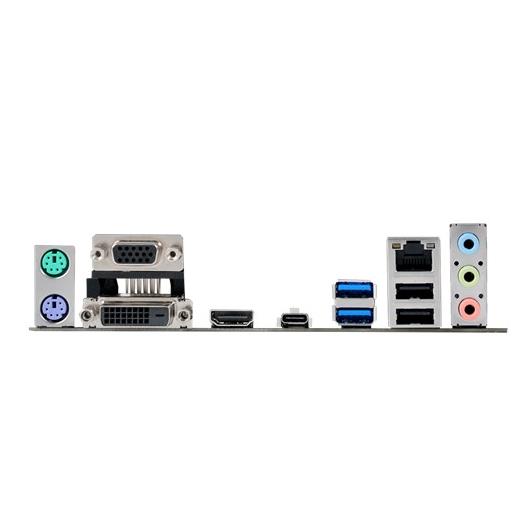

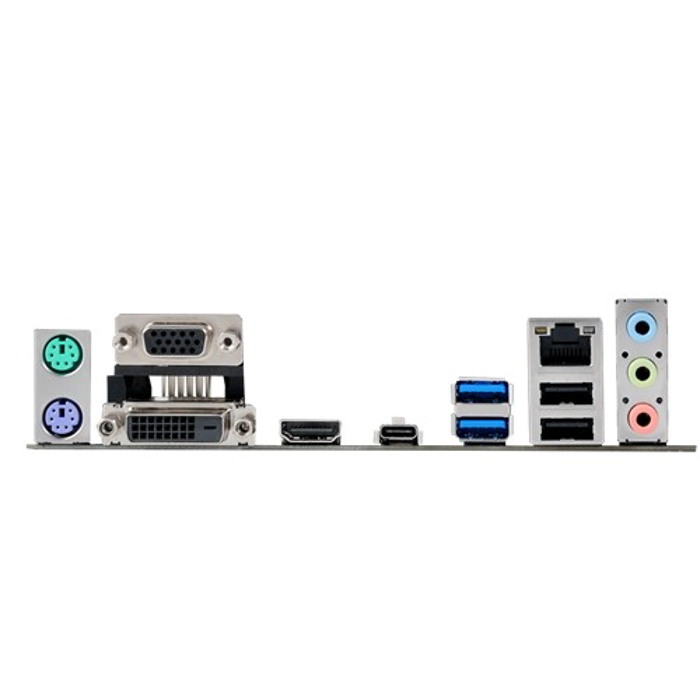

CPU\nIntel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors \nSupports Intel® 14 nm CPU\nSupports Intel® Turbo Boost Technology 2.0 \n* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.\n* Refer to www.asus.com for CPU support list\n\nChipset\nIntel® H170\n\nMemory\n4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *\nDual Channel Memory Architecture \nSupports Intel® Extreme Memory Profile (XMP)\n\n\nGraphic\nIntegrated Graphics Processor- Intel® HD Graphics support \nMulti-VGA output support : HDMI/DVI/DVI-D/RGB ports \n- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz\n- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz\n- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz\nMaximum shared memory of 1024 MB\nSupports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™\nSupports up to 3 displays simultaneously\n\nMulti-GPU Support\nSupports AMD Quad-GPU CrossFireX™ Technology\n\nExpansion Slots\n1 x PCIe 3.0/2.0 x16 (x16 mode, gray) \n1 x PCIe 3.0/2.0 x16 (max at x4 mode) \n2 x PCIe 3.0/2.0 x1\n\nStorage\nIntel® H170 chipset : \n1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA PCIE mode)\n1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports\n6 x SATA 6Gb/s port(s), gray\nSupport Raid 0, 1, 5, 10\nSupports Intel® Smart Response Technology*1\n\nLAN\nIntel® I219V, 1 x Gigabit LAN Controller(s)\nIntel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)\n\nAudio\nRealtek® ALC887 8-Channel High Definition Audio CODEC *2\n- Supports : Jack-detection, Front Panel Jack-retasking\nAudio Feature :\n- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference\n- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals\n- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity\n\nUSB Ports\nIntel® H170 chipset : \n6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board)\nIntel® H170 chipset : \n6 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 4 at mid-board)\nIntel® H170 chipset : \n1 x USB 5Gb/s port(s) port(s) (1 at back panel, black, Type-C, Reversible, Support 3A power output)\n\nSpecial Features\nASUS 5X Protection II :\n- ASUS LANGuard - 2.5X higher surge tolerance\n- ASUS Overvoltage Protection - World-class circuit-protecting power design\n- ASUS DIGI+ VRM - 7 Phase digital power design\n- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits\n- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability\nASUS EPU :\n- EPU \nASUS Exclusive Features :\n- GPU Boost *3\n- AI Suite 3\n- Ai Charger \n- M.2 SATA Express\n- Anti-Surge\n- ESD Guards\n- USB 3.0 Boost\n- Disk Unlocker\n- Mobo Connect\n- PC Cleaner\nASUS Quiet Thermal Solution :\n- Stylish Fanless Design Heat-sink solution MOS Heatsink \n- ASUS Fan Xpert 2+\nASUS EZ DIY :\n- ASUS CrashFree BIOS 3 \n- ASUS EZ Flash 3 \n- ASUS UEFI BIOS EZ Mode\n- Push Notice\nASUS Q-Design :\n- ASUS Q-Slot\n- ASUS Q-DIMM \nMedia Streamer\n\nOperating System Support\nWindows® 10 , 64bit\nWindows® 8.1 , 64bit\nWindows® 7 , 32bit/64bit *4\n\nBack I/O Ports\n1 x PS/2 keyboard (purple)\n1 x PS/2 mouse (green)\n1 x DVI-D\n1 x D-Sub\n1 x HDMI\n1 x LAN (RJ45) port(s)\n1 x USB 5Gb/s port(s) Type-C ( support 3A power output ) \n2 x USB 3.0 (blue) Type-A \n2 x USB 2.0 \n3 x Audio jack(s)\n\nInternal I/O Ports\n2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)\n2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)\n1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports\n1 x M.2 Socket 3 \n1 x TPM header\n1 x LPT header\n1 x COM port(s) connector(s)\n6 x SATA 6Gb/s connector(s)\n1 x CPU Fan connector(s) (1 x 4 -pin)\n2 x Chassis Fan connector(s) (2 x 4 -pin)\n1 x S/PDIF out header(s)\n1 x 24-pin EATX Power connector(s)\n1 x 8-pin ATX 12V Power connector(s)\n1 x Front panel audio connector(s) (AAFP)\n1 x System panel(s) \n1 x Clear CMOS jumper(s)\n\nAccessories\nUsers manual\nI/O Shield\n2 x SATA 6Gb/s cable(s)\n1 x M.2 Screw Package\n1 x Supporting DVD\n\nBIOS\n128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information\n\nManageability\nWfM 2.0, DMI 3.0, WOL by PME, PXE\n\nSupport Disc\nDrivers\nASUS Utilities\nEZ Update \nAnti-virus software (OEM version)\n\nForm Factor\nmATX Form Factor \n9.6 inch x 8.95 inch ( 24.4 cm x 22.7 cm )\n\nNote\n*1: These functions will work depending on the CPU installed.\n*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.\n*3: The function supported varies by processor\n*4: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
